GEAR SHIFT

TRANSMISSION FOR SYM WOLF 125 SBN (L4) 2014

LEFT CRANKCASE

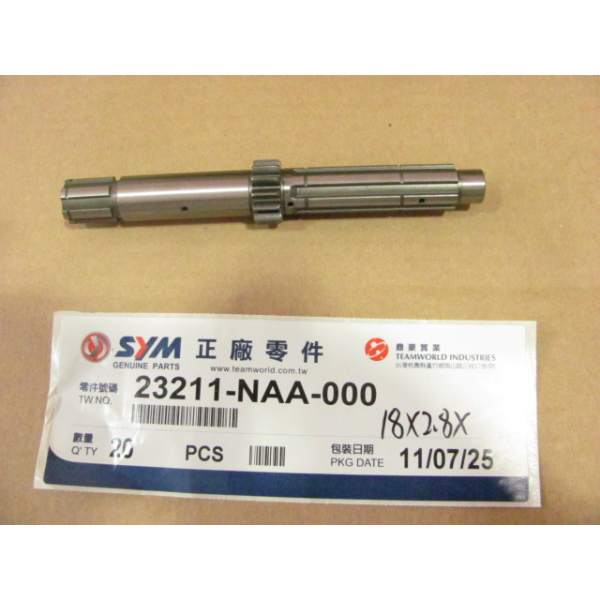

(1) 23211-NAA-000

TRANSMISSION MAIN SHAFT

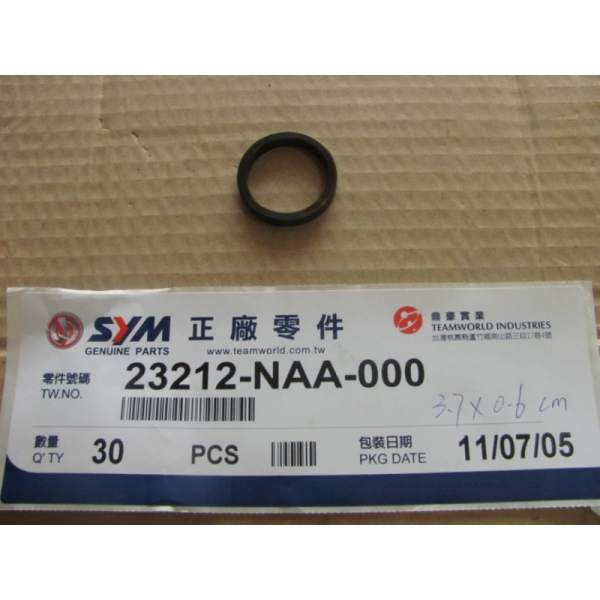

(2) 23212-NAA-000

COLLAR 30*37*6

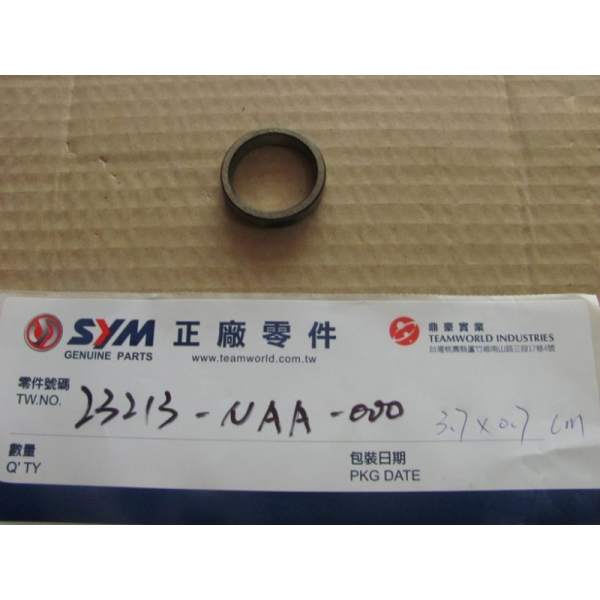

(3) 23213-NAA-000

COLLAR 30*37*7.5

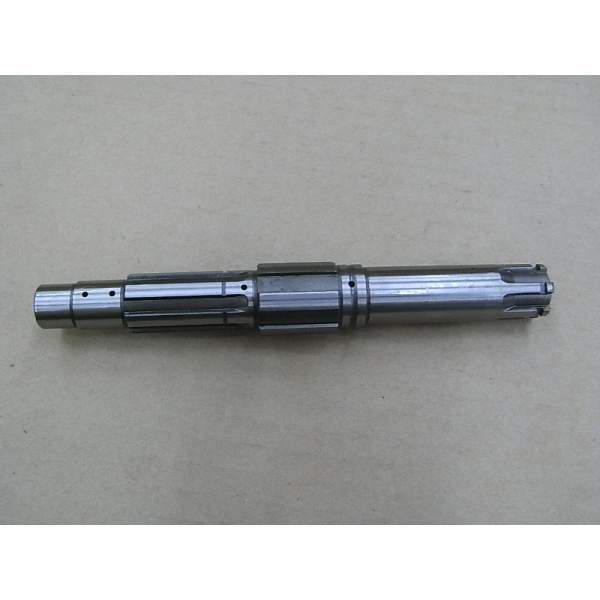

(4) 23221-B9A-000

COUNTER SHAFT

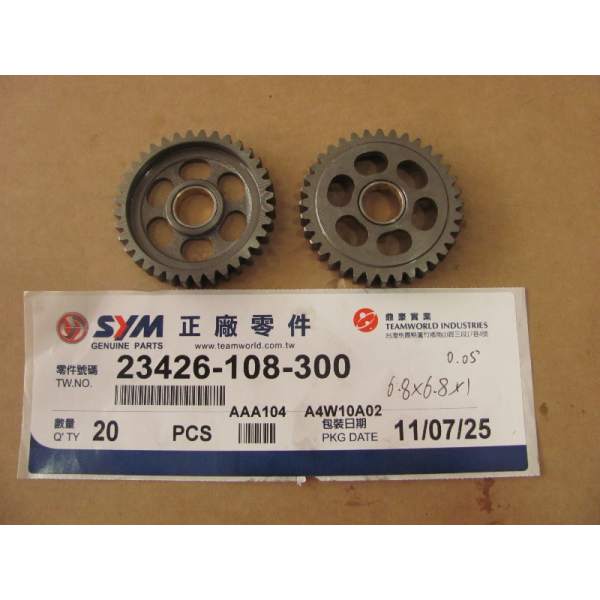

(5) 23426-108-300

C-1 GEAR 36T

(6) 23426-KC6-A00

C-1 GEAR + COLLAR

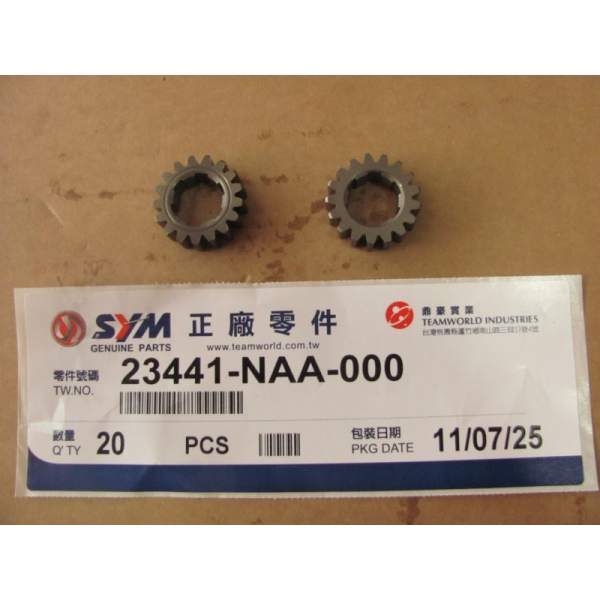

(7) 23441-NAA-000

M-2 GEAR

(8) 23451-S08-A00

C-2 GEAR 32TH

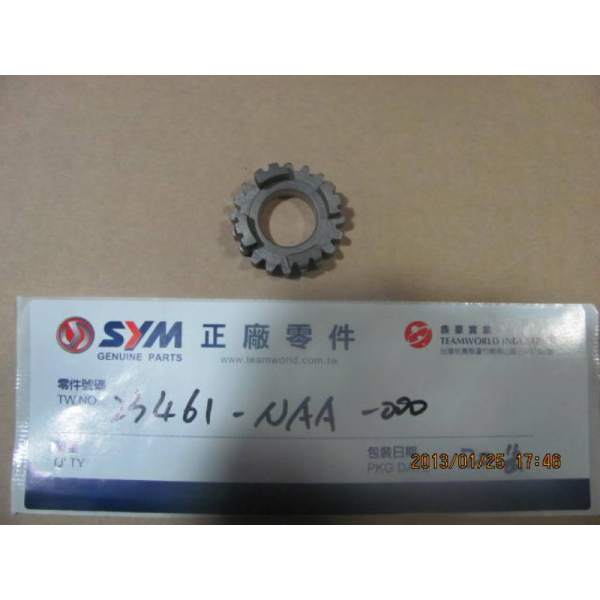

(9) 23461-NAA-000

M-3 GEAR 20T

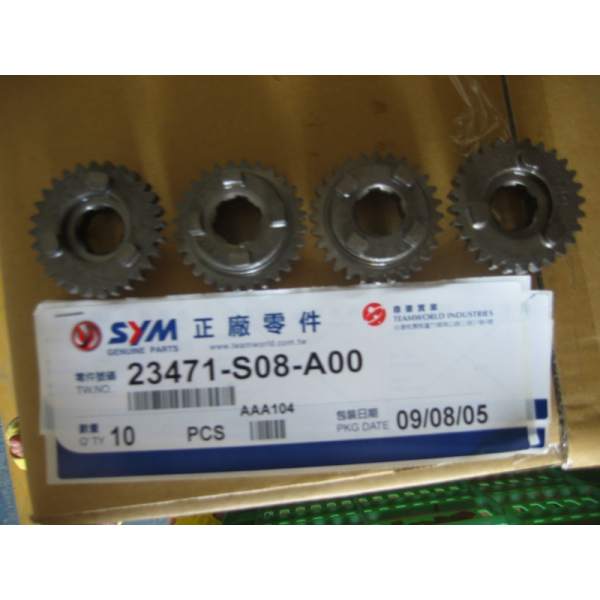

(10) 23471-S08-A00

C-3 GEAR 28TH

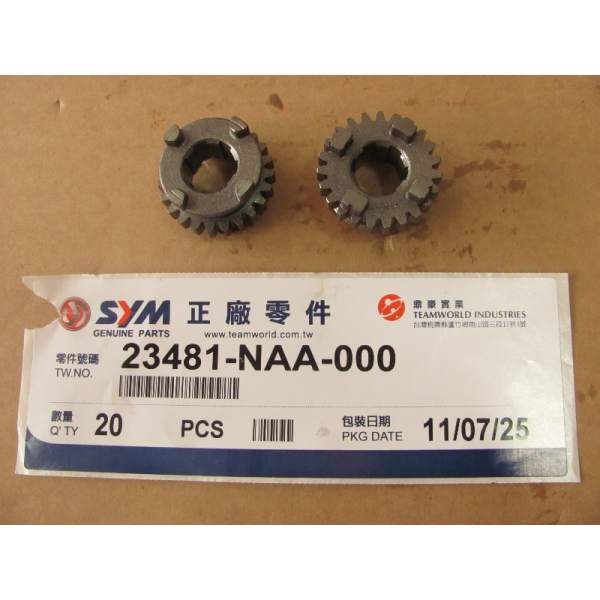

(11) 23481-NAA-000

M-4 GEAR

(12) 23491-S08-A00

C-4 GEAR 26T

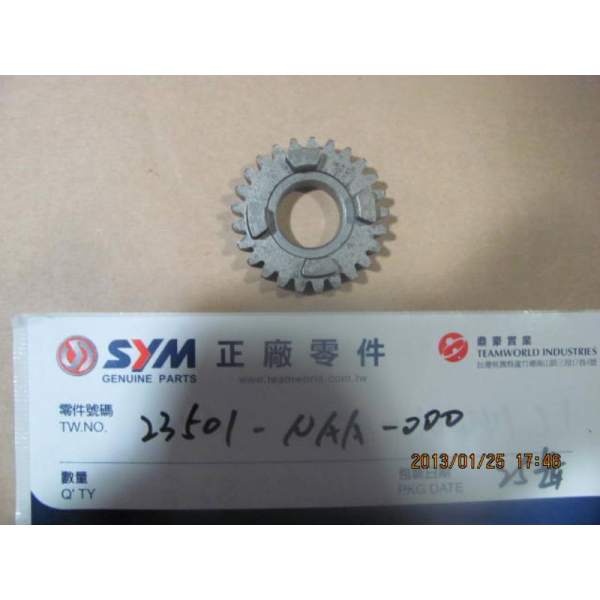

(13) 23501-NAA-000

M-5 GEAR 25T

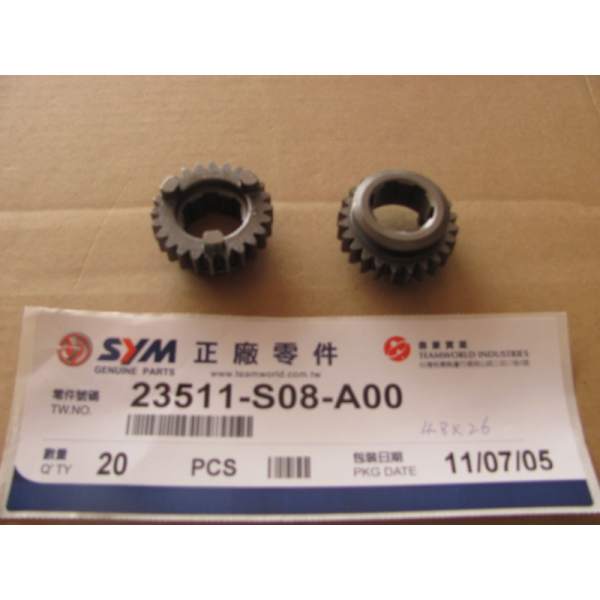

(14) 23511-S08-A00

C-5 GEAR 24T

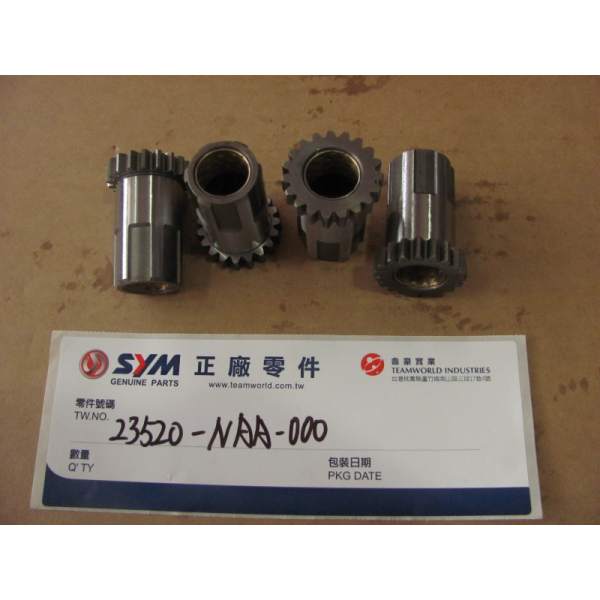

(15) 23520-NAA-000

PRIMARY STARTER GEAR COMP

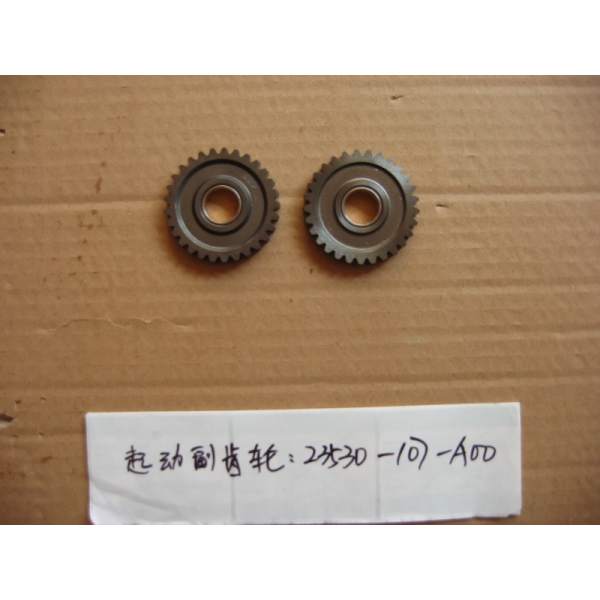

(16) 23530-107-A00

PRIM START IDLE GEAR COMP 29T

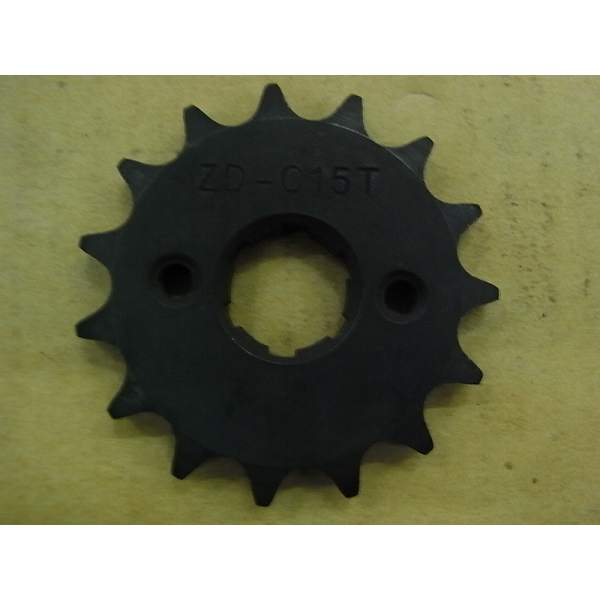

(17) 23801-B02-000

DRIVE SPROCKET 15T

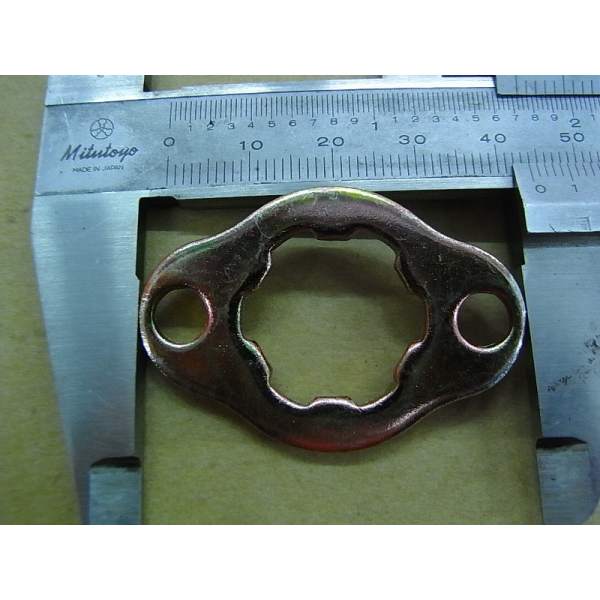

(18) 23811-NJA-000

DRIVE SPR FIXING PLATE

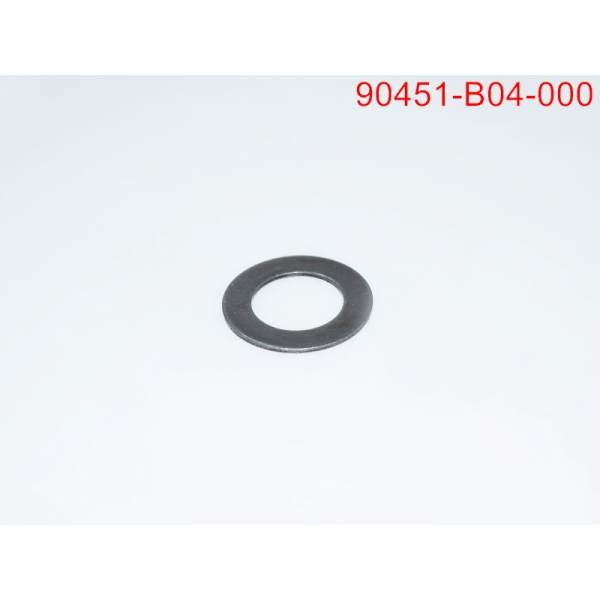

(19) 90451-B04-000

THRUST WASHER 15MM

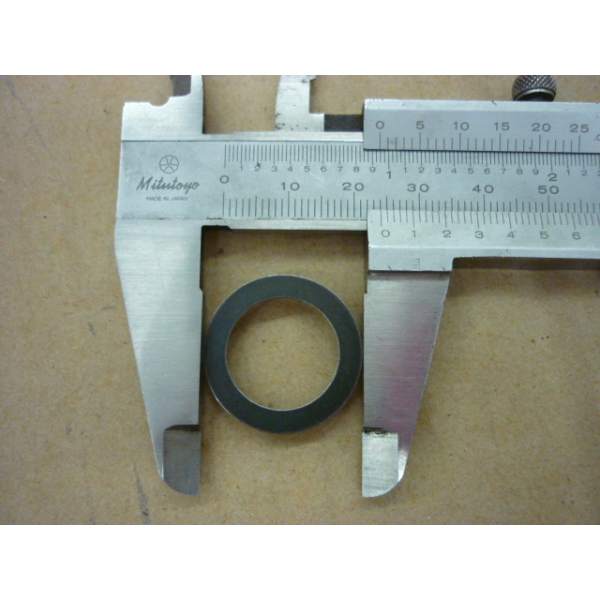

(20) 90452-B04-000

THRUST WASHER 16.5MM

(21) 90454-B04-000

THRUST WASHER B 20MM

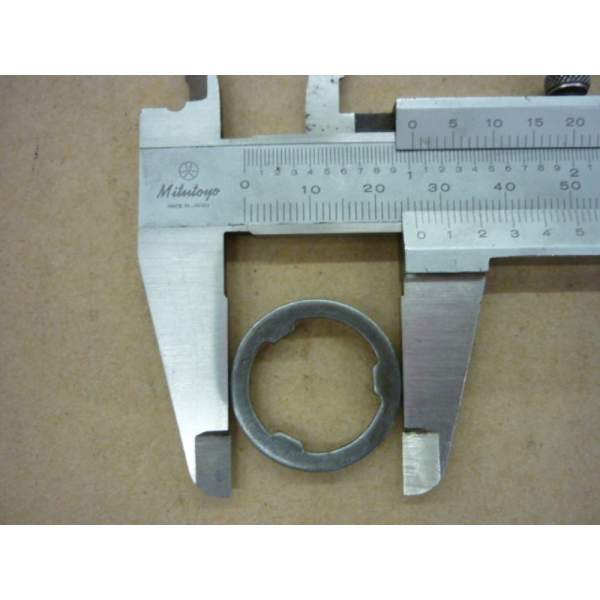

(22) 90455-B04-000

SPLINE WASHER A 20MM

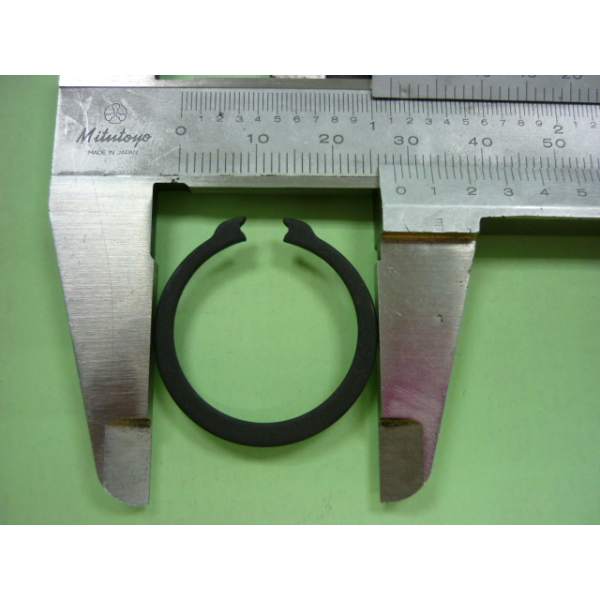

(23) 90601-B08-000

CIR CLIP 25MM

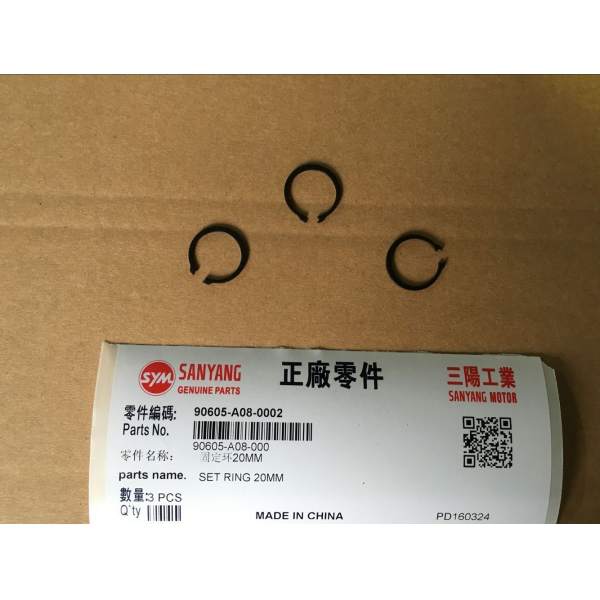

(24) 90605-A08-000

RING 20MM

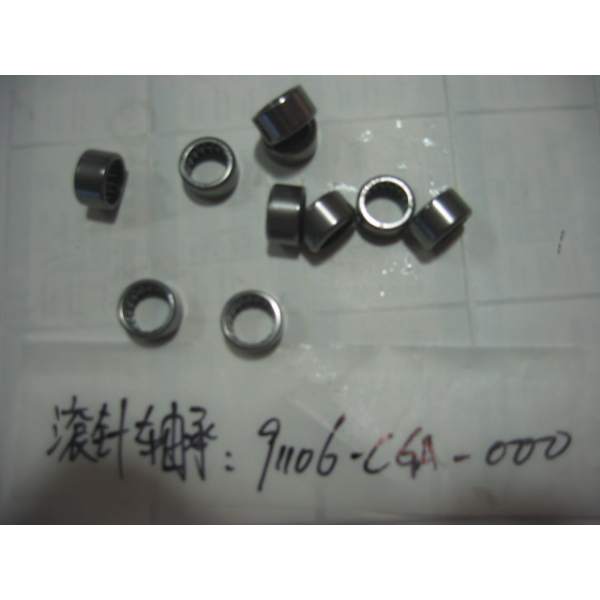

(25) 91106-CGA-000

BRG.NEEDLE (HK1512)

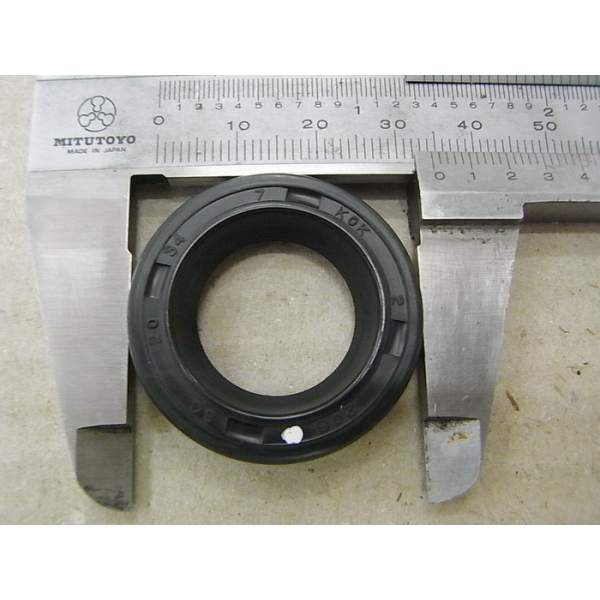

(26) 91201-B06-000

OIL SEAL 20X34X7

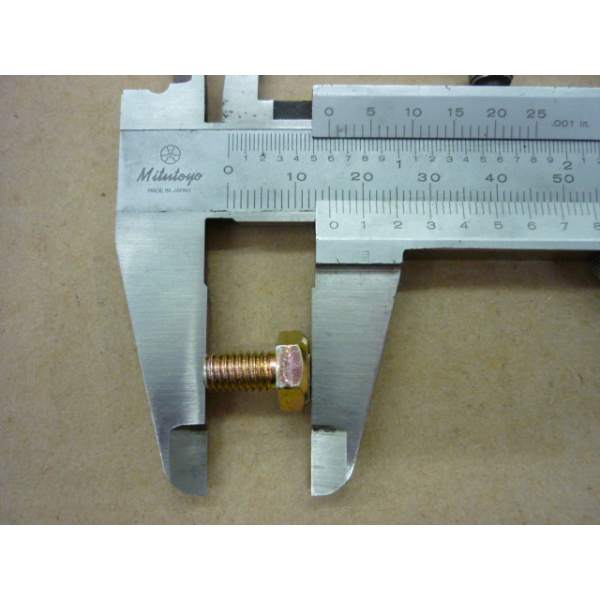

(27) 92101-06010-0H

HEX BOLT 6X10

(28) 96100-60060-00

BALL BEARING 6006

(29) 96100-62040-00

RAD.BALL.BRG.6204T

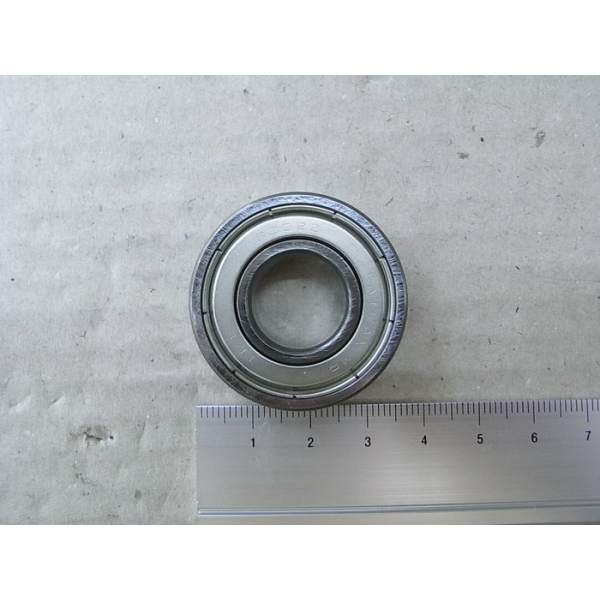

(30) 96120-62020-00

RAD.BRG.BALL 6202TZ

	Part number	Description	Qty
# 1	23211-NAA-000	TRANSMISSION MAIN SHAFT	17,94 €(15,33 £)
# 2	23212-NAA-000	COLLAR 30376	3,04 €(2,60 £)
# 3	23213-NAA-000	COLLAR 30377.5	3,62 €(3,09 £)
# 4	23221-B9A-000	COUNTER SHAFT	Not available	0,00 €(0,00 £)
# 5	23426-108-300	C-1 GEAR 36T	13,58 €(11,61 £)

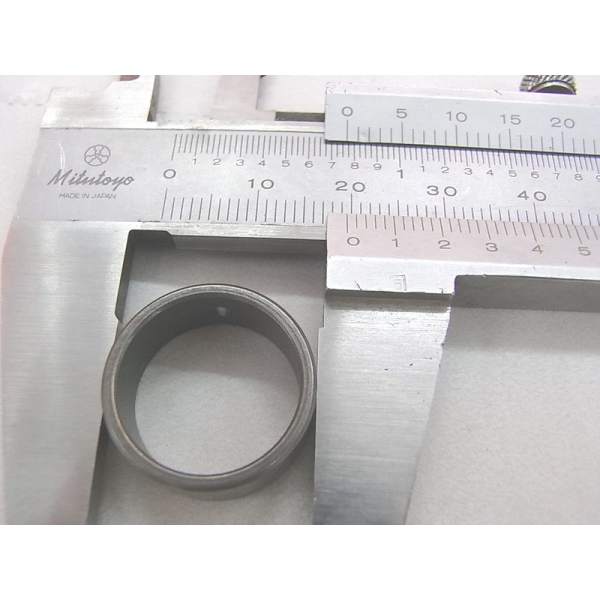

# 6	23427-439-000 23426-KC6-A00	C-1 GEAR + COLLAR	11,16 €(9,54 £)
# 7	23441-NAA-000	M-2 GEAR	6,14 €(5,25 £)
# 8	23451-S08-A00	C-2 GEAR 32TH	11,06 €(9,45 £)
# 9	23461-NAA-000	M-3 GEAR 20T	Not available	0,00 €(0,00 £)
# 10	23471-S08-A00	C-3 GEAR 28TH	Not available	0,00 €(0,00 £)
# 11	23481-NAA-000	M-4 GEAR	9,46 €(8,09 £)
# 12	23491-S08-A00	C-4 GEAR 26T	6,52 €(5,57 £)
# 13	23501-NAA-000	M-5 GEAR 25T	7,14 €(6,10 £)
# 14	23511-S08-A00	C-5 GEAR 24T	7,85 €(6,71 £)
# 15	23520-NAA-000	PRIMARY STARTER GEAR COMP	12,60 €(10,77 £)
# 16	23530-107-A00	PRIM START IDLE GEAR COMP 29T	7,40 €(6,33 £)
# 17	23801-B02-000	DRIVE SPROCKET 15T	8,33 €(7,12 £)
# 18	23811-KR3-600 23811-NJA-000	DRIVE SPR FIXING PLATE	2,66 €(2,27 £)
# 19	90451-B04-000	THRUST WASHER 15MM	1,28 €(1,09 £)
# 20	90452-B04-000	THRUST WASHER 16.5MM	Not available	0,00 €(0,00 £)

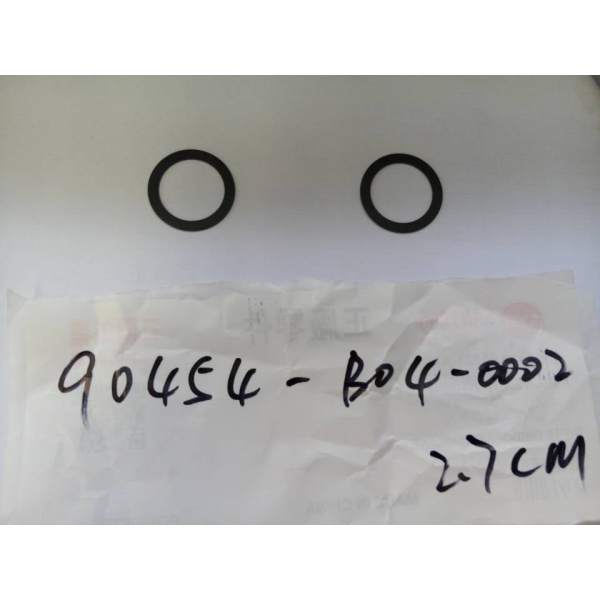

# 21	90454-B04-000	THRUST WASHER B 20MM	0,82 €(0,70 £)
# 22	90455-B04-000	SPLINE WASHER A 20MM	0,82 €(0,70 £)
# 23	90601-B08-000	CIR CLIP 25MM	3,20 €(2,74 £)
# 24	90605-A08-000	RING 20MM	0,47 €(0,40 £)
# 25	91106-CGA-000	BRG.NEEDLE (HK1512)	4,58 €(3,91 £)
# 26	91201-B06-000	OIL SEAL 20X34X7	2,12 €(1,81 £)
# 27	92101-06010-0H	HEX BOLT 6X10	Not available	0,00 €(0,00 £)
# 28	96100-60060-00	BALL BEARING 6006	17,90 €(15,30 £)
# 29	96100-62040-00	RAD.BALL.BRG.6204T	13,15 €(11,24 £)
# 30	96120-62020-00	RAD.BRG.BALL 6202TZ	10,44 €(8,92 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
