RIGHT CRANKCASE FOR SYM QUADLANDER 300S (UA30A5H-F) (L5-L7) 2015

REAR CRANKCASE COVER

(1) 11100-RFA-000

R. CRANK CASE COMP

(2) 11191-RB1-005

CRANK CASE GASKET

(3) 14151-RFA-000

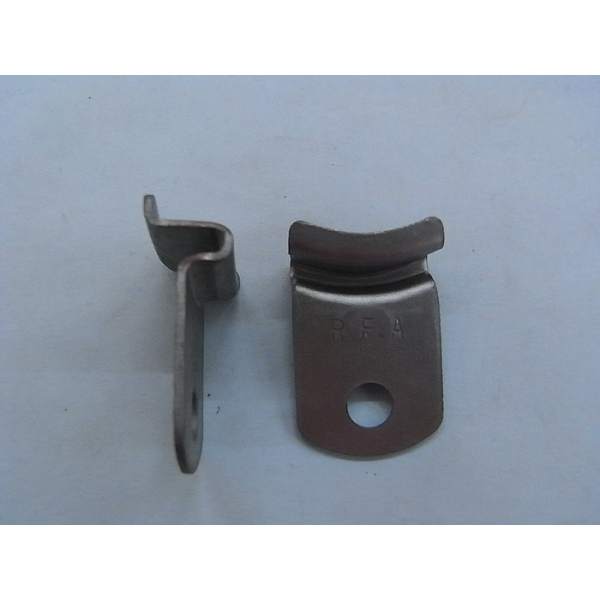

CAM CHAIN SETTING PLATE

(4) 15100-RFA-000

OIL PUMP ASSY.

(5) 15133-HMA-000

OIL PUMPDRIVEN SPROCKET

(6) 15200-HMA-000

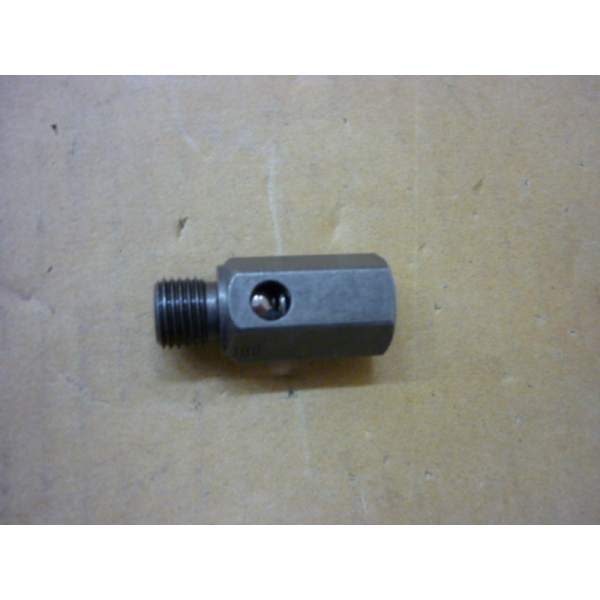

OIL RELIEF VA/VE ASSY

(7) 1C15141-HMA-000

OIL PUMP CHAIN 48L

(8) 28101-RB1-000

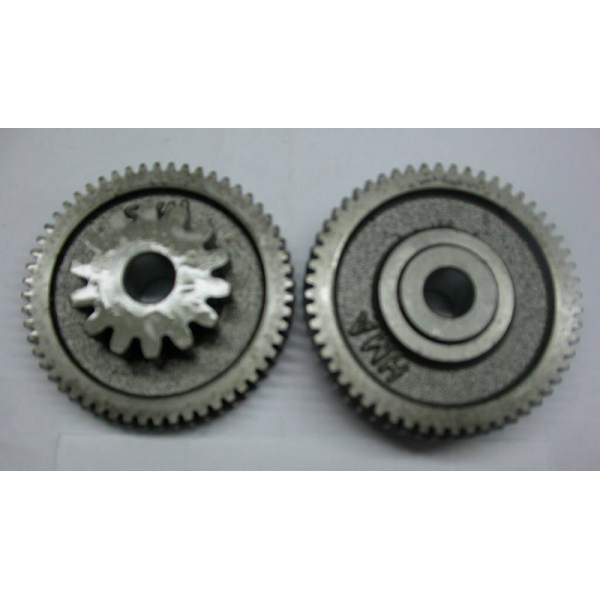

STAR. REDUCTION GEAR COMP

(9) 28102-RB1-000

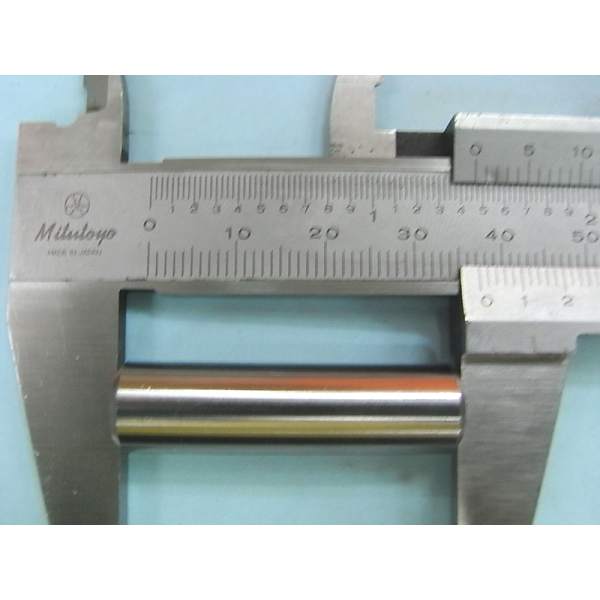

STA. REDUCTION GEAR SHAFT

(10) 28105-HMA-300

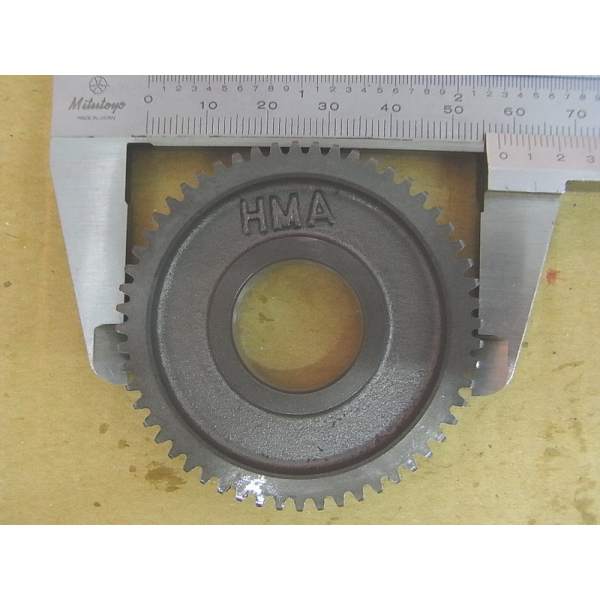

STARTER REDUCTION GEAR B

(11) 31200-RB1-000

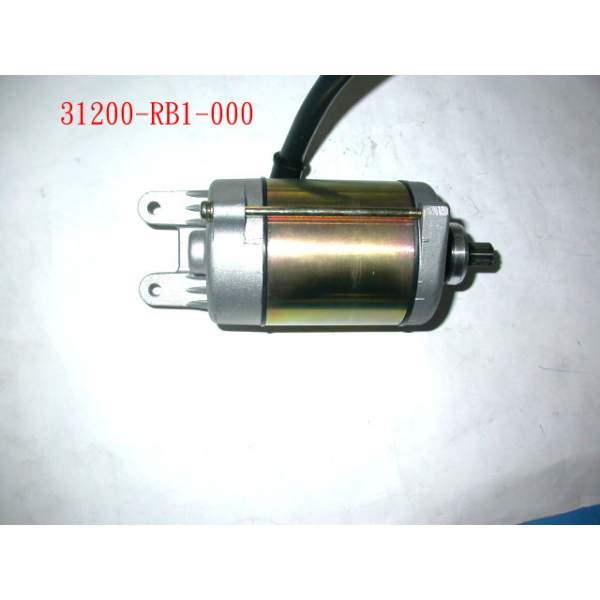

START MOTOR ASSY

(12) 90031-HMA-000

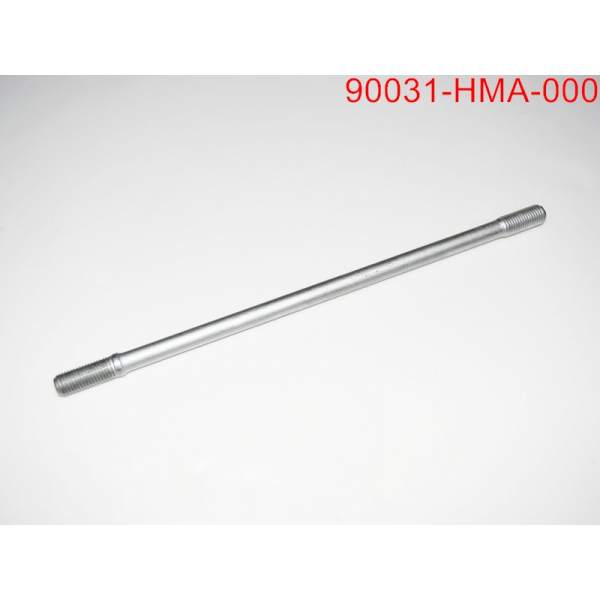

CYLINDER STUD BOLT A

(14) 93500-06025-0H

PAN SCREW 6*25

(15) 94301-08140

DOWELL PIN 8X14

(16) 94510-10000

CLIP

(17) 96001-06012-08

BOLT. FLANGE 6X12

(18) 96001-06022-00

FLANGE BOLT 6X22

(19) 96001-06055-00

FLANGE BOLT 6X55

	Part number	Description	Qty
# 1	11100-RFA-000	R. CRANK CASE COMP	Not available	0,00 €(0,00 £)
# 2	11191-RB1-005	CRANK CASE GASKET	13,31 €(11,40 £)
# 3	14151-RFA-000	CAM CHAIN SETTING PLATE	Not available	0,00 €(0,00 £)
# 4	15100-RFA-000	OIL PUMP ASSY.	42,40 €(36,31 £)
# 5	15133-HMA-000	OIL PUMPDRIVEN SPROCKET	8,80 €(7,54 £)
# 6	15200-HMA-000	OIL RELIEF VA/VE ASSY	21,19 €(18,15 £)
# 7	1C15141-HMA-000	OIL PUMP CHAIN 48L	29,27 €(25,07 £)
# 8	28101-RB1-000	STAR. REDUCTION GEAR COMP	39,91 €(34,18 £)
# 9	28102-RB1-000	STA. REDUCTION GEAR SHAFT	3,46 €(2,96 £)
# 10	28105-HMA-300	STARTER REDUCTION GEAR B	23,90 €(20,47 £)
# 11	31200-RB1-000	START MOTOR ASSY	236,82 €(202,82 £)
# 12	90031-HMA-000	CYLINDER STUD BOLT A	11,46 €(9,81 £)
# 14	93500-06025-0H	PAN SCREW 6*25	0,30 €(0,26 £)
# 15	94301-08140	DOWELL PIN 8X14	1,10 €(0,94 £)
# 16	94510-10000	CLIP	Not available	0,00 €(0,00 £)
# 17	96001-06012-08	BOLT. FLANGE 6X12	Not available	0,00 €(0,00 £)
# 18	96001-06022-00	FLANGE BOLT 6X22	Not available	0,00 €(0,00 £)
# 19	96001-06055-00	FLANGE BOLT 6X55	Not available	0,00 €(0,00 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the RIGHT CRANKCASE of your SYM QUADLANDER 300S (UA30A5H-F) (L5-L7) of 2015. Let us know if you have any questions.
