SIDE STAND - RIGHT-LEFT STEP BAR

FRAME BODY FOR SYM GTS 125I (LN12W2-FR) (L4) 2014

MUFFLER

1.0

(1.0) 11102-H9A-300

R.CRANK CASE BUSH 62MM

2.0

(2.0) 3043A-REA-000

BATTERY OPEN CONTROL UNIT

3.0

(3.0) 33800-VS1-010

HEAD LIGHT CONTROL UNIT

4.0

(4.0) 35881-L3A-000

LINER MOTOR COVER

5.0

(5.0) 36100-MMA-100-A1

ROLL OVER SENSOR ASSY

6.0

(6.0) 3850A-HLA-100-A2

ELECTRIC RELAY ASSY

7.0

(7.0) 3872A-L3D-000

HAZARD CONTROL UNIT ASSY

8.0

(8.0) 45156-HMA-000

BRAKE HOSE CLAMP

9.0

(9.0) 5010N-LAH-000

FRAME BODY COMP SET

10.0

(10.0) 50315-L3A-000

FR. COVER STAY

11.0

(11.0) 50352-L3A-000

STOPPER RUBBER

12.0

(12.0) 50380-L3A-000

KIT50381-L3A-000

13.0

(13.0) 50381-L3A-000

TENSION ROD

14.0

(14.0) 77230-L3A-000

SEAT CATCH ASSY

15.0

(15.0) 77241-L3A-000

SEAT LOCK CABLE B

16.0

(16.0) 80103-HMA-000

L. SPLASH BOARD PLATE

17.0

(17.0) 83619-L3A-000

RUBBER

18.0

(18.0) 90304-M9Q-800

FLANGE U NUT 10MM

19.0

(19.0) 93894-04022-08

WASHER SCREW 4X22

20.0

(20.0) 94050-06080

NUT. FLANGE 6M

21.0

(21.0) 94103-L2A-000

PLAIN WASHER 12MM

22.0

(22.0) 94103-L3A-000

PLAIN WASHER 12MM

23.0

(23.0) 95801-06012-08

FLANGE BOLT 6X12

24.0

(24.0) 95801-08018-07

FLANGE BOLT 8*18

	Part number	Description	Qty
# 1.0	11102-H9A-300	R.CRANK CASE BUSH 62MM	8,56 €(7,31 £)
# 2.0	3043A-REA-000	BATTERY OPEN CONTROL UNIT	37,74 €(32,23 £)
# 3.0	33800-VS1-010	HEAD LIGHT CONTROL UNIT	71,83 €(61,34 £)
# 4.0	35881-L3A-000	LINER MOTOR COVER	Not available	0,00 €(0,00 £)
# 5.0	36100-MMA-100 36100-MMA-100-A1	ROLL OVER SENSOR ASSY	65,06 €(55,56 £)
# 6.0	3850A-HLA-100 3850A-HLA-100-A2	ELECTRIC RELAY ASSY	21,26 €(18,16 £)
# 7.0	3872A-L3D-000	HAZARD CONTROL UNIT ASSY	160,54 €(137,10 £)
# 8.0	45156-HMA-000	BRAKE HOSE CLAMP	2,59 €(2,21 £)

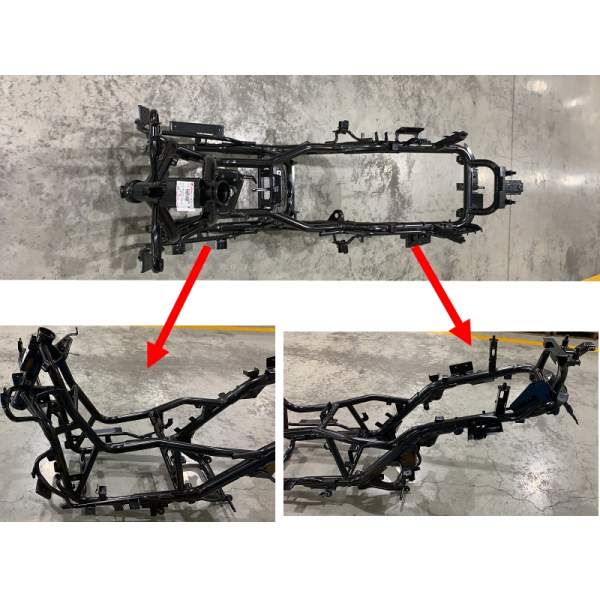

# 9.0	5010N-LAH-000	FRAME BODY COMP SET	944,82 €(806,88 £)
# 10.0	50315-L3A-000	FR. COVER STAY	175,85 €(150,18 £)
# 11.0	50352-L3A-000	STOPPER RUBBER	5,02 €(4,29 £)
# 12.0	50380-L3A-000	KIT50381-L3A-000	21,90 €(18,70 £)
# 13.0	50381-L3A-000	TENSION ROD	19,60 €(16,74 £)
# 14.0	77230-L3A-000	SEAT CATCH ASSY	27,05 €(23,10 £)
# 15.0	77241-L3A-000	SEAT LOCK CABLE B	10,73 €(9,16 £)
# 16.0	80103-HMA-000	L. SPLASH BOARD PLATE	Not available	0,00 €(0,00 £)
# 17.0	83619-L3A-000	RUBBER	1,54 €(1,32 £)
# 18.0	90304-M9Q-800	FLANGE U NUT 10MM	1,18 €(1,01 £)
# 19.0	93894-04022-08	WASHER SCREW 4X22	Not available	0,00 €(0,00 £)
# 20.0	94050-06080	NUT. FLANGE 6M	0,46 €(0,39 £)
# 21.0	94103-L2A-000	PLAIN WASHER 12MM	9,18 €(7,84 £)
# 22.0	94103-L3A-000	PLAIN WASHER 12MM	9,76 €(8,34 £)
# 23.0	95801-06012-08	FLANGE BOLT 6X12	0,44 €(0,38 £)
# 24.0	95801-08018-07	FLANGE BOLT 8*18	1,49 €(1,27 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
