FUEL TANK FOR SYM CITYCOM 300 EFI (LH30W-6) (K8-K9) 2008

REAR WHEEL-SWING ARM

(1) 1670A-LEA-100

FUEL PUMP ASSY.

1-1

(1-1) 16711-M9Q-000

FUEL PUMP FILTER SCREEN

1-2

(1-2) 16712-M9Q-000

PUSH NUT FOR 16711-M9Q-000

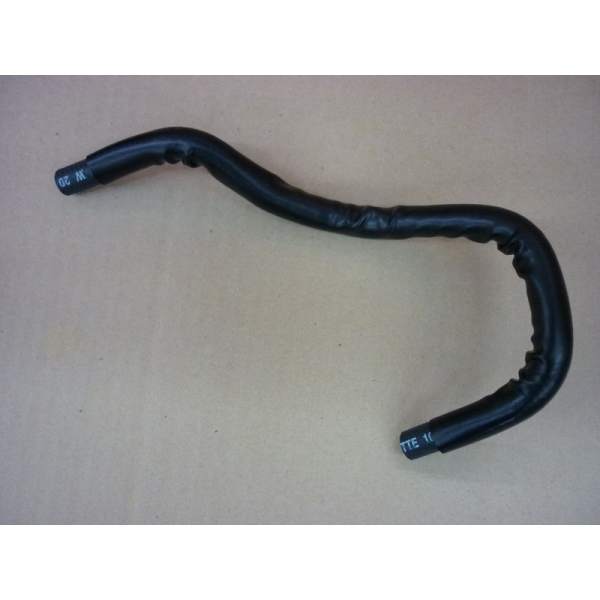

(2) 16730-LEA-000

FUEL TUBE

(3) 17369-KB4-670

BREATHER TUBE CLIP

(4) 17500-LEA-010

FUEL TANK

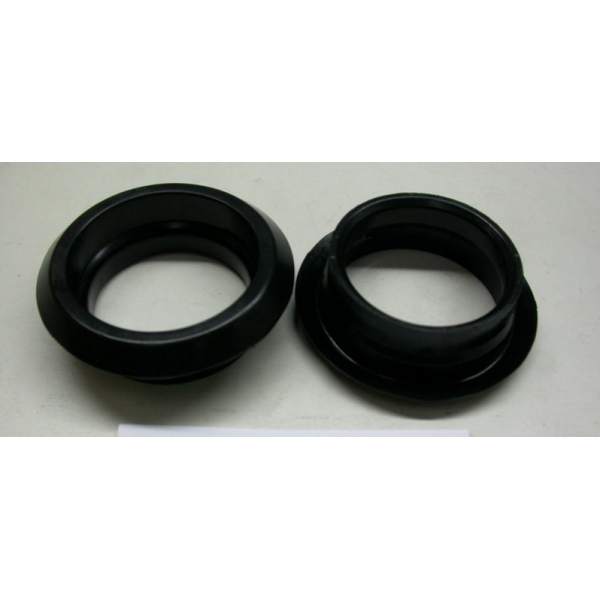

(5) 17509-H12-000

FUEL TANK CAP RUBBER

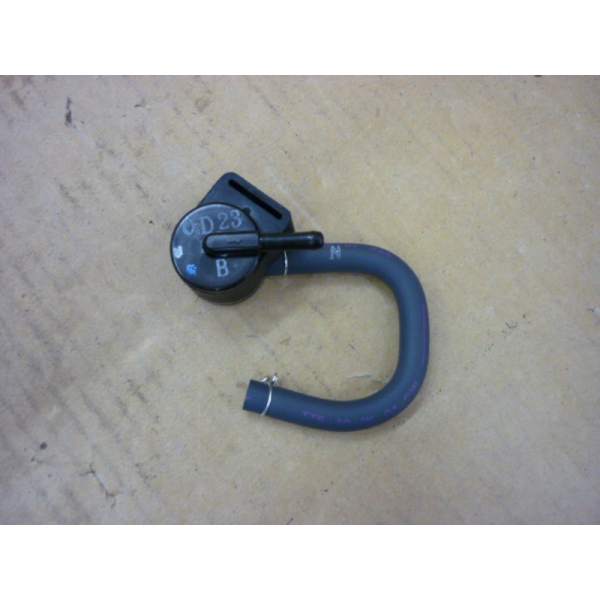

(6) 17580-LEA-000

FUEL CUT VALVE ASSY

(7) 17581-HMA-000

FUEL CUT VALVE(LIYANG)

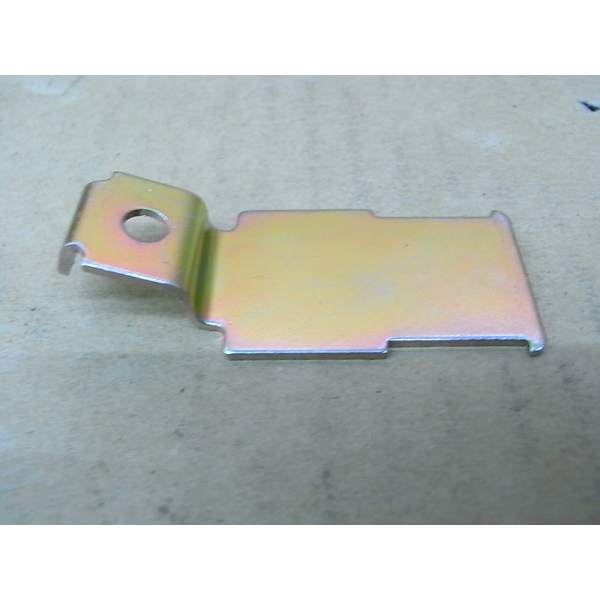

(8) 17583-LEA-000

FCV STAY

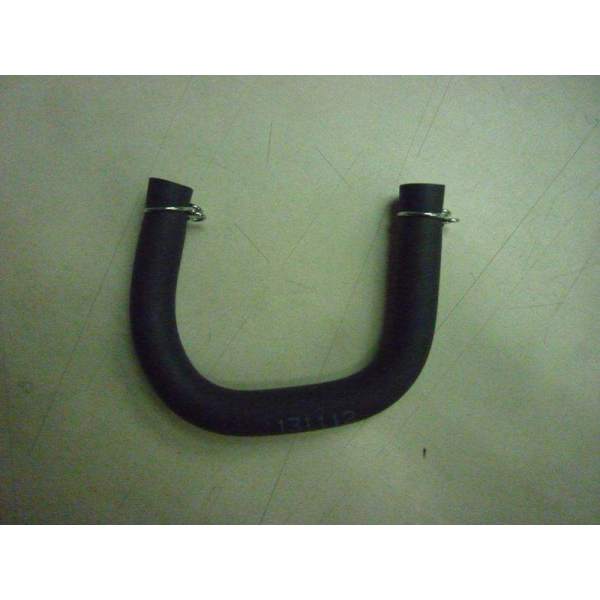

(9) 17585-LEA-000

TANK-FCV TUBE

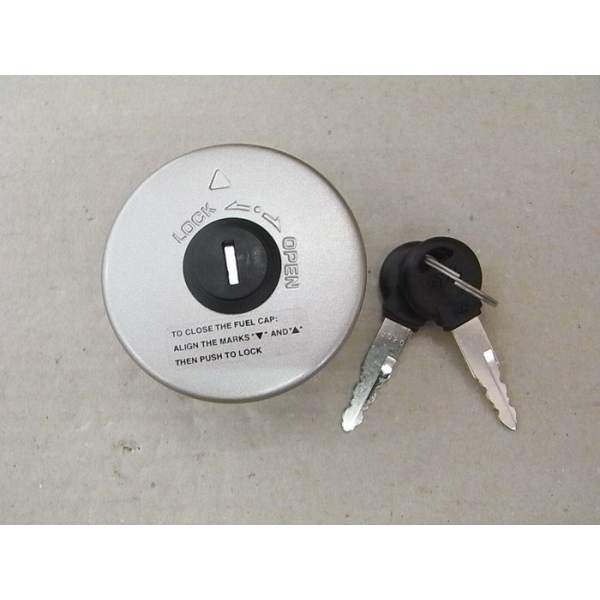

(10) 17620-H6P-000

CAP COMP FUEL FILLER

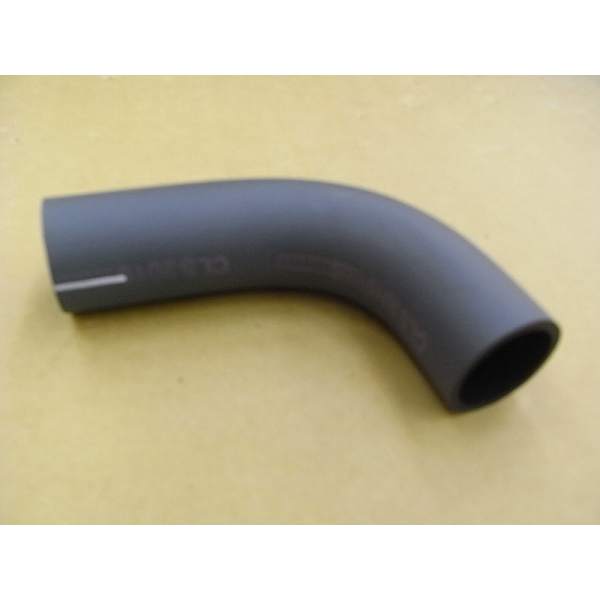

(11) 17651-LEA-000

FUEL NECK TUBE

(12) 17652-TAA-000

FILLER TUBE CLIP

(14) 17654-LEA-000

BREATHER TUBE B

(15) 17660-LEA-000

FILLER PIPE COMP

(16) 19505-H5D-900

HOSE CLAMP

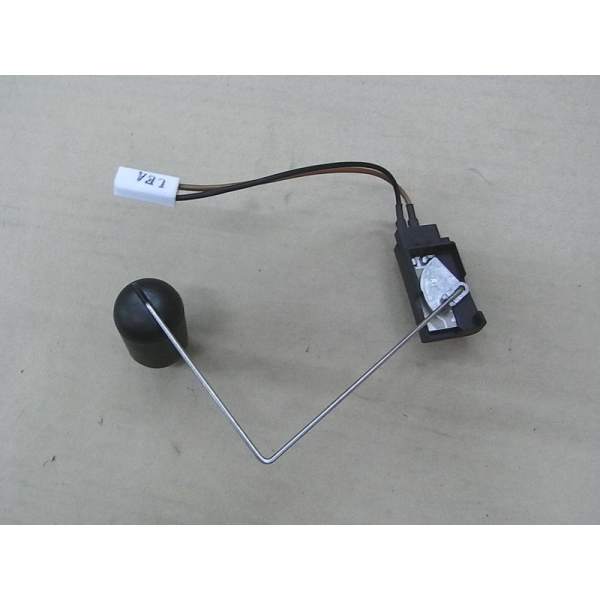

(17) 37800-LEA-010

FUEL UNIT

(18) 37801-A5L-000

FUEL PUMP PACKING

(19) 37804-LEA-000

FUEL UNIT STAY

(20) 90106-LEA-000

FUEL PUMP BOLT

(21) 93404-06012-07

WASHER BOLT 6X12

(22) 93903-34320

TAPPING SCREW 4X12

(23) 93903-HGC-000

TAPPING SCREW

	Part number	Description	Qty
# 1	1670A-LEA-000 1670A-LEA-100	FUEL PUMP ASSY.	387,58 €(331,94 £)
# 1-1	16711-M9Q-000	FUEL PUMP FILTER SCREEN	48,12 €(41,21 £)
# 1-2	16712-M9Q-000	PUSH NUT FOR 16711-M9Q-000	3,20 €(2,74 £)
# 2	16730-LEA-000	FUEL TUBE	12,26 €(10,50 £)
# 3	17369-KB4-670	BREATHER TUBE CLIP	0,68 €(0,58 £)
# 4	17500-LEA-010	FUEL TANK	219,14 €(187,68 £)
# 5	17509-H12-000	FUEL TANK CAP RUBBER	5,02 €(4,30 £)
# 6	17580-LEA-000	FUEL CUT VALVE ASSY	Not available	0,00 €(0,00 £)
# 7	17581-HMA-000	FUEL CUT VALVE(LIYANG)	20,00 €(17,13 £)
# 8	17583-LEA-000	FCV STAY	Not available	0,00 €(0,00 £)
# 9	17585-LEA-000	TANK-FCV TUBE	4,51 €(3,86 £)
# 10	17620-H6P-000	CAP COMP FUEL FILLER	79,08 €(67,73 £)
# 11	17651-LEA-000	FUEL NECK TUBE	10,76 €(9,22 £)
# 12	17652-TAA-000	FILLER TUBE CLIP	6,17 €(5,28 £)
# 14	17654-LEA-000	BREATHER TUBE B	11,26 €(9,64 £)
# 15	17660-LEA-000	FILLER PIPE COMP	20,40 €(17,47 £)
# 16	19505-H5D-900	HOSE CLAMP	4,31 €(3,69 £)
# 17	37800-LEA-000 37800-LEA-010	FUEL UNIT	44,72 €(38,30 £)
# 18	37801-A5L-000	FUEL PUMP PACKING	8,14 €(6,97 £)
# 19	37804-LEA-000	FUEL UNIT STAY	1,06 €(0,91 £)
# 20	90106-LEA-000	FUEL PUMP BOLT	0,72 €(0,62 £)
# 21	93404-06012-07	WASHER BOLT 6X12	0,72 €(0,62 £)		Special offer 0,72 €(0,62 £)
# 22	93903-34320	TAPPING SCREW 4X12	0,25 €(0,21 £)
# 23	93903-HGC-000	TAPPING SCREW	Not available	0,00 €(0,00 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
