TAILLIGHT FOR SYM JET EURO X 50 E2 (BL05W7-6 - BL05W7-F) (K7) 2007

BATTERY

(1) 33741-P1A-000

RR. REFLEX REFLECTOR

(2) 33600-P1A-020

R RR. WINKER ASSY.

(2) 33602-G03-520

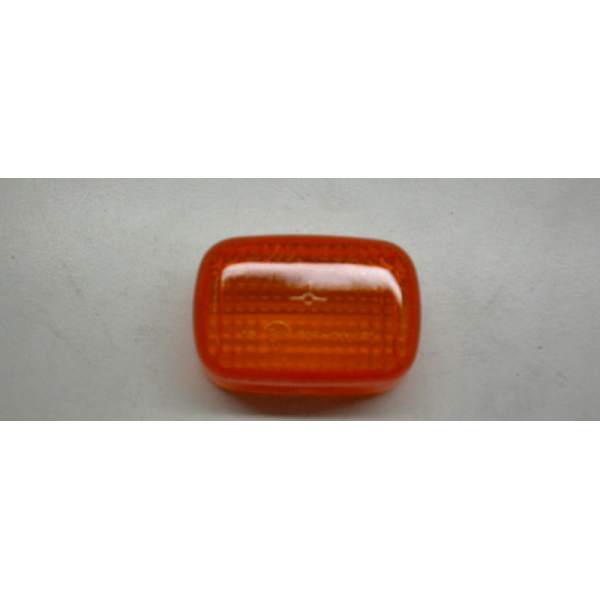

L/R. RR. WINKER LENS

(2) 33650-P1A-020

L RR. WINKER ASSY.

(3) 3370A-T6R-000

TAIL LIGHT ASSY

(4) 34905-M70-000

WINKER BULB RR 12V10W(E)

(5) 34906-M70-000

BULB TAIL LIGHT(E-MARK)12V

(6) 80104-KBN-900

RR. FENDER SPLASH GUARD PLATE

(7) 80105-G22-000

RR. FENDER

(9) 80107-G22-000-BN

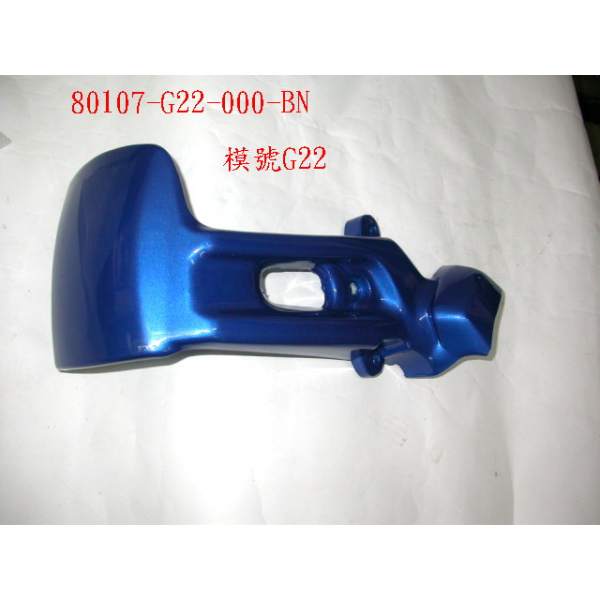

RR.MUDGUARD

(9) 80107-G22-000-KB

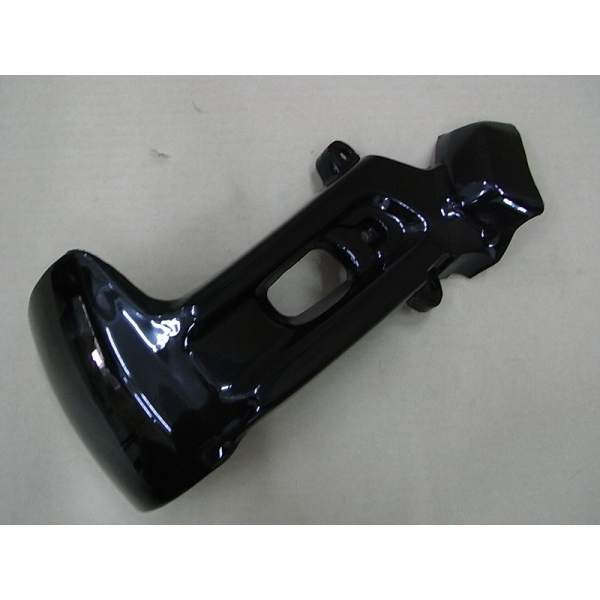

RR. MUDGUARD (BK-001C)

(9) 8010G-T79-000

9-1

(9-1) 87121-RA1-000-T1

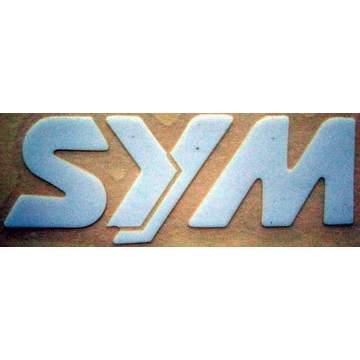

SYM MARK TYPE1

(10) 80109-T52-000

RR. MUDGUARD STAY

(11) 83800-G22-000-BJ

TAIL COVER(BU-283S)

(11) 83800-G22-000-BN

TAIL COVER

(11) 83800-G22-000-IB

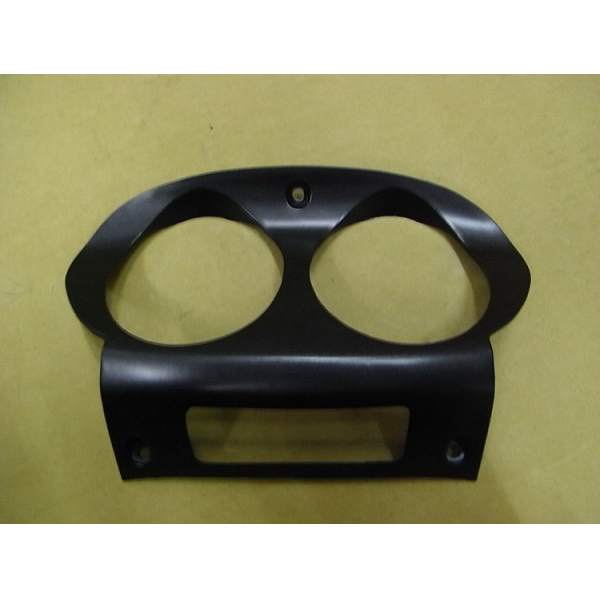

TAIL COVER (GY-990U)

(11) 83800-G22-000-KAZ

TAIL COVER (BK-001UL)

(11) 83800-G22-000-KB

TAIL COVER (BK-001C)

(12) 90111-M9Q-900

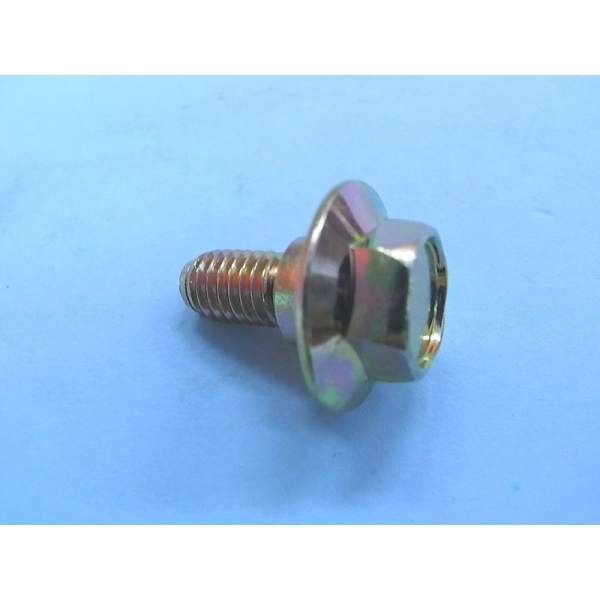

FLANGE BOLT(MFZN2-C)6MM

(13) 90118-HAA-000

WASHER BOLT 5*14

(14) 90164-MR4-900

SPECIAL SCREW 6MM

(15) 90677-M9Q-000

CLIP. NUT 5MM

(16) 93404-06012-00

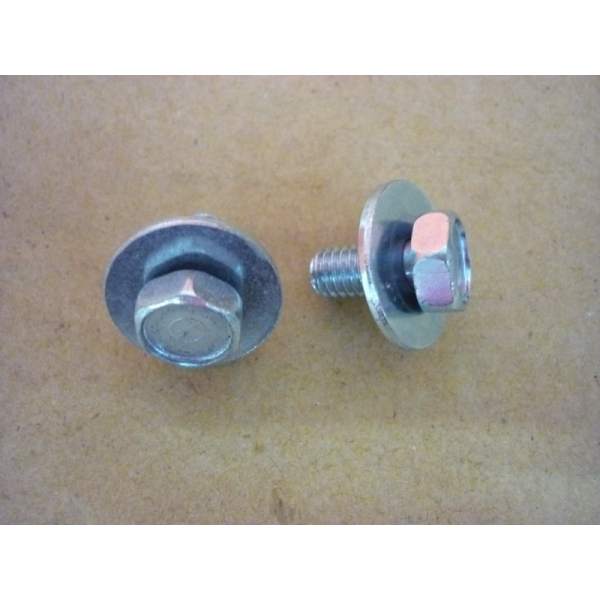

WASHER BOLT 6X12

(18) 93903-34380

TAPSCHROEF 4X12

(19) 95701-06012-02

FLANGE BOLT 6X12

(21) 8010A-E69-001

RR. FENDER ASSY

(21) 8010A-T6V-000

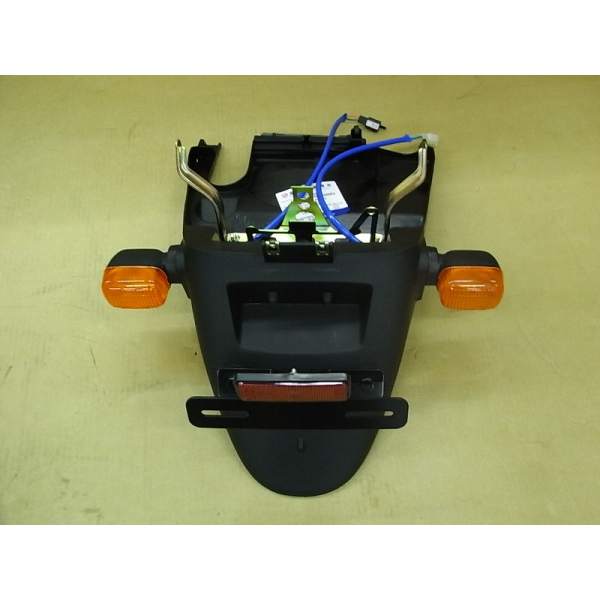

REAR COMBINATION LIGHT

	Part number	Description	Qty
# 1	33741-P1A-000	RR. REFLEX REFLECTOR	6,25 €(5,35 £)
# 2	33600-P1A-020	R RR. WINKER ASSY.	21,19 €(18,15 £)
# 2	33650-P1A-020	L RR. WINKER ASSY.	21,19 €(18,15 £)
# 2	33602-G03-520	L/R. RR. WINKER LENS	Not available	0,00 €(0,00 £)
# 3	3370A-T6R-000	TAIL LIGHT ASSY	160,51 €(137,47 £)
# 4	34905-M70-000	WINKER BULB RR 12V10W(E)	4,51 €(3,86 £)
# 5	34906-E69-000	BULB TAIL LIGHT(E-MARK)12V	Not available	0,00 €(0,00 £)
# 6	80104-KBN-900	RR. FENDER SPLASH GUARD PLATE	Not available	0,00 €(0,00 £)
# 7	80105-G22-000	RR. FENDER	Not available	0,00 €(0,00 £)
# 9	80107-G22-000-BN	RR.MUDGUARD	56,20 €(48,13 £)
# 9	80107-G22-000-KB	RR. MUDGUARD (BK-001C)	59,84 €(51,25 £)
# 9	8010G-T79-000	8010G-T79-000	Not available	0,00 €(0,00 £)
# 9-1	87121-RA1-000-T1	SYM MARK TYPE1	1,49 €(1,28 £)
# 10	80109-T52-000	RR. MUDGUARD STAY	Not available	0,00 €(0,00 £)
# 11	83800-G22-000-BJ	TAIL COVER(BU-283S)	27,11 €(23,22 £)
# 11	83800-G22-000-BN	TAIL COVER	25,45 €(21,80 £)
# 11	83800-G22-000-IB	TAIL COVER (GY-990U)	23,57 €(20,19 £)
# 11	83800-G22-000-KAZ	TAIL COVER (BK-001UL)	26,14 €(22,39 £)
# 11	83800-G22-000-KB	TAIL COVER (BK-001C)	Not available	0,00 €(0,00 £)
# 12	90111-M9Q-900	FLANGE BOLT(MFZN2-C)6MM	0,92 €(0,79 £)
# 13	90118-T15-000	WASHER BOLT 5*14	Not available	0,00 €(0,00 £)
# 14	90164-MR4-900	SPECIAL SCREW 6MM	Not available	0,00 €(0,00 £)
# 15	90677-GR1-003 90677-M9Q-000	CLIP. NUT 5MM	1,16 €(0,99 £)
# 16	93404-06012-00	WASHER BOLT 6X12	Not available	0,00 €(0,00 £)
# 18	93903-34380	TAPSCHROEF 4X12	Not available	0,00 €(0,00 £)
# 19	95701-06012-00	FLANGE BOLT 6X12	Not available	0,00 €(0,00 £)
# 21	8010A-E69-001	RR. FENDER ASSY	Not available	0,00 €(0,00 £)
# 21	8010A-T6V-000	REAR COMBINATION LIGHT	Not available	0,00 €(0,00 £)
