BODY COVER / SIDE COVER FOR SYM RED DEVIL (BL05W7-G) (K6-K9) 2008

REAR COMBINATION LIGHT

(1) 77226-KY2-700

LOCK KEY SET SPG.

(4) 83500-G22-000-RT

R. BODY COVER R-010CA

(4) 83500-G22-000-SQ

R BODY COVER JET EURO X50

4-1

(4-1) 87126-T7M-000-T1

R BODY COVER STRIPE

(4-1) 87127-T7R-000-T1

R. BODY COVER STRIPE TYPE1

4-2

(4-2) 87128-T7M-000

R BODY COVER STRIPE A

(6) 83520-G22-000-RT

R SIDE COVER (R-010CA)

(6) 83520-G22-000-SQ

RH.SIDE COVER COMP.

(8) 83600-G22-000-RT

L. BODY COVER (R-010CA)

(8) 83600-G22-000-SQ

L BODY COVER

8-1

(8-1) 87127-T7M-000-T1

L BODY COVER STRIPE

(8-1) 87128-T7R-000-T1

L. BODY COVER STRIPE TYPE1

8-2

(8-2) 87129-T7M-000

L BODY COVER STRIPE A

(9) 83605-G22-000

AIR/C INT. DUCT

(10) 8362A-G22-000-RT

LH. SIDE COVER ASSY (R-010CA)

(10) 8362A-G22-000-SQ

LH. SIDE COVER ASSY (S-880C)

(12) 8375A-G22-000-RT

RR. CENTER COVER ASS (R-010CA)

(12) 8375A-G22-000-SQ

RR. CENTER COVER ASSY (S-880C)

(15) 90302-SA4-900

SPRING NUT 4MM

(16) 90677-M9Q-000

CLIP. NUT 5MM

(18) 93891-05016-07

WASHER SCREW 5X16

(19) 93891-05020-07

WASHER SCREW 5X20

(20) 93891-05016-07

WASHER SCREW 5X16

(22) 93903-25320

TAPPING SCREW 5X16 ANODISED

(24) 93903-34320

TAPPING SCREW 4X12

	Part number	Description	Qty
# 1	77226-KY2-700	LOCK KEY SET SPG.	Not available	0,00 €(0,00 £)
# 4	83500-G22-000-RT	R. BODY COVER R-010CA	72,29 €(61,91 £)

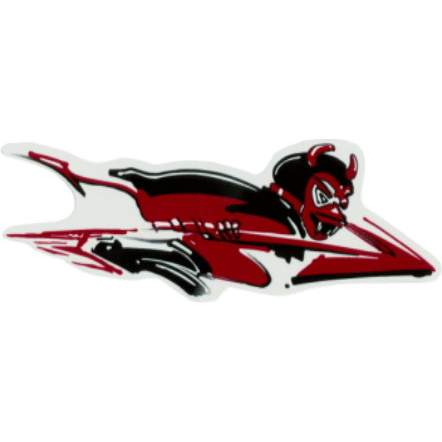

# 4-1	87126-T7M-000-T1	R BODY COVER STRIPE	7,06 €(6,05 £)
# 4-1	87127-T7R-000-T1	R. BODY COVER STRIPE TYPE1	Not available	0,00 €(0,00 £)
# 4	83500-G22-000-SQ	R BODY COVER JET EURO X50	Not available	0,00 €(0,00 £)

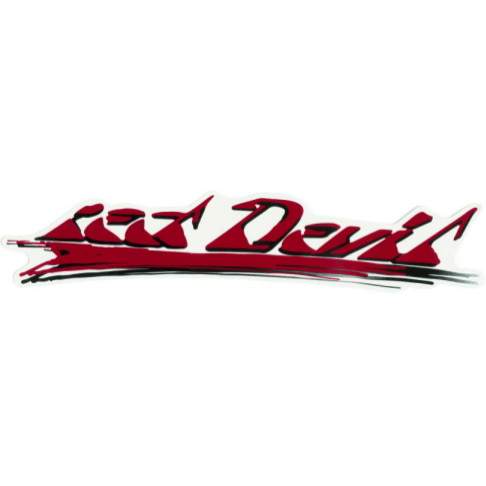

# 4-2	87128-T7M-000	R BODY COVER STRIPE A	Not available	0,00 €(0,00 £)

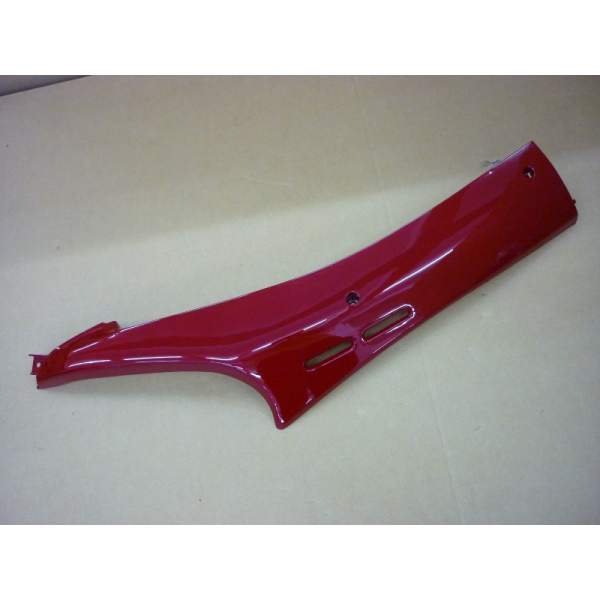

# 6	83520-G22-000-RT	R SIDE COVER (R-010CA)	41,95 €(35,93 £)

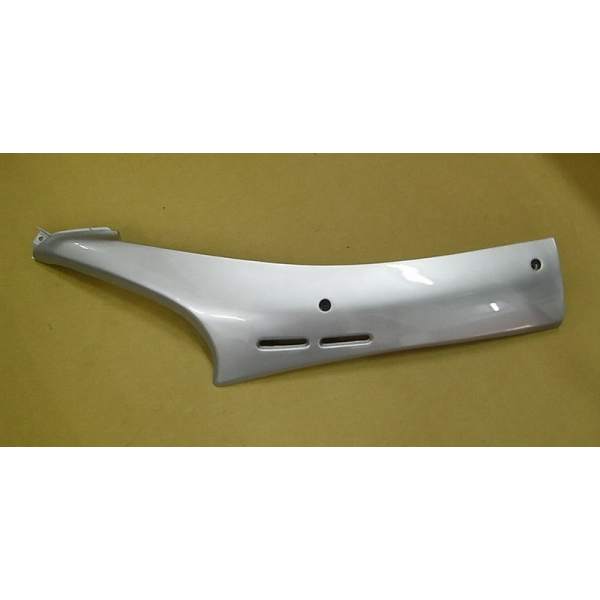

# 6	83520-G22-000-SQ	RH.SIDE COVER COMP.	27,64 €(23,67 £)

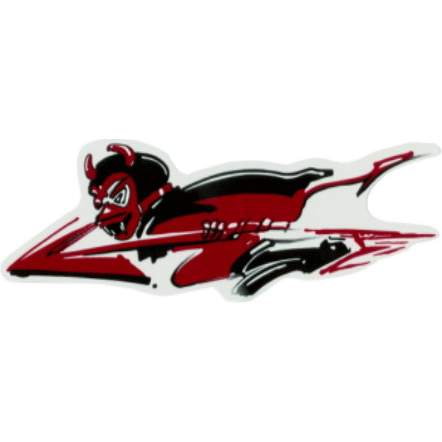

# 8-1	87127-T7M-000-T1	L BODY COVER STRIPE	7,06 €(6,05 £)
# 8-1	87128-T7R-000-T1	L. BODY COVER STRIPE TYPE1	Not available	0,00 €(0,00 £)

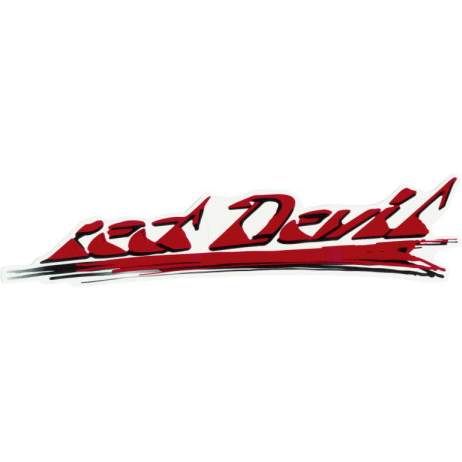

# 8-2	87129-T7M-000	L BODY COVER STRIPE A	7,60 €(6,51 £)
# 8	83600-G22-000-RT	L. BODY COVER (R-010CA)	Not available	0,00 €(0,00 £)
# 8	83600-G22-000-SQ	L BODY COVER	Not available	0,00 €(0,00 £)
# 9	83605-G22-000	AIR/C INT. DUCT	Not available	0,00 €(0,00 £)

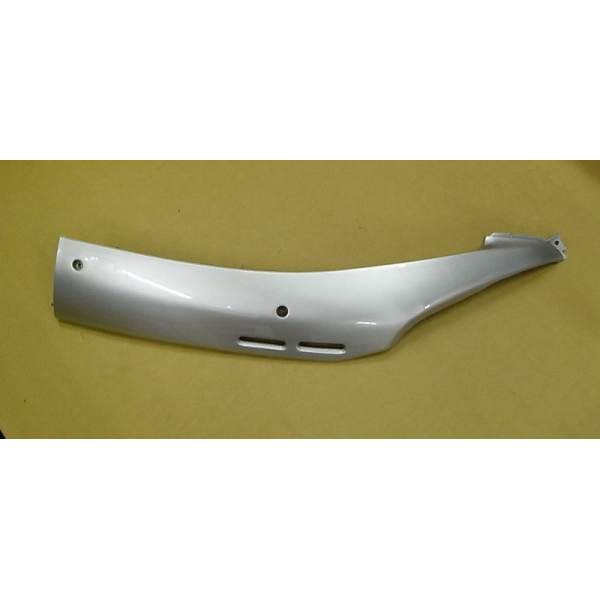

# 10	83620-G22-000-SQ 8362A-G22-000-SQ	LH. SIDE COVER ASSY (S-880C)	28,85 €(24,71 £)

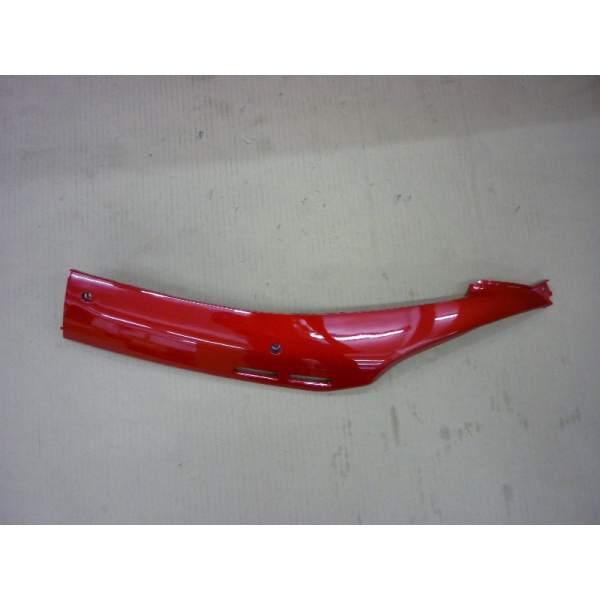

# 10	83620-G22-000-RT	LH. SIDE COVER ASSY (R-010CA)	Not available	0,00 €(0,00 £)
# 12	8375A-G22-000-RT	RR. CENTER COVER ASS (R-010CA)	Not available	0,00 €(0,00 £)
# 12	8375A-G22-000-SQ	RR. CENTER COVER ASSY (S-880C)	Not available	0,00 €(0,00 £)
# 15	90302-SA4-003	SPRING NUT 4MM	Not available	0,00 €(0,00 £)
# 16	90677-GR1-003 90677-M9Q-000	CLIP. NUT 5MM	1,16 €(0,99 £)
# 18	93891-05016-07	WASHER SCREW 5X16	Not available	0,00 €(0,00 £)
# 19	93891-05020-07	WASHER SCREW 5X20	Not available	0,00 €(0,00 £)
# 20	93891-05916-07	WASHER SCREW 5X16	Not available	0,00 €(0,00 £)
# 22	93903-25320	TAPPING SCREW 5X16 ANODISED	Not available	0,00 €(0,00 £)
# 24	93903-34320	TAPPING SCREW 4X12	0,25 €(0,21 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
