FRAME BODY FOR SYM JET SPORT X 50 (BK05W-6) (L1) (GERMAN MODEL) 2011

EXHAUST MUFFLER

(1) 50100-TFN-000

FRAME BODY COMP BK-001C

(2) 50306-M9Q-000-XS

STRG. STEM LOCK NUT

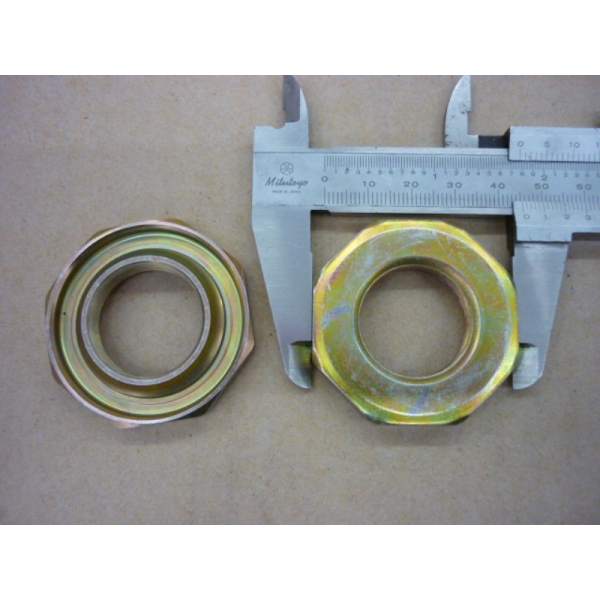

(3) 53211-M7Q-000

RACE STRG TOP CONE

(5) 50301-M9Q-000

RACE UP STRG BALL

(6) 50305-M7Q-000

STRG. UNDER BALL RACE

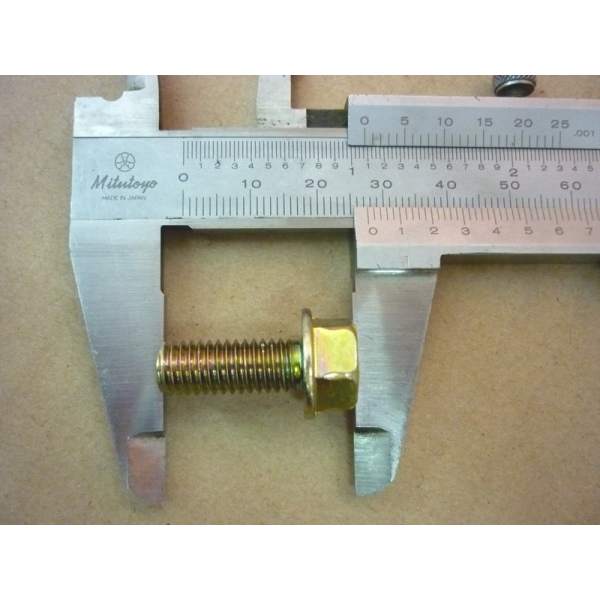

(7) 95801-08020-08

FLANGE BOLT 8X20MM

(8) 50621-KBN-900

FRAME UNDER COVER

(9) 93404-06016-07

FLANGE BOLT 6X16

(10) 94050-06070

FLANGE NUT 6MM

(21) 50530-E69-000

SIDE STAND BAR COMP

(23) 90108-AAA-000

SIDE STAND PIVOT SCREWBOLT

(24) 94030-08080

HEX NUT 8MM

(25) 50542-E60-000

SIDE STAND SPRING PLATE HOOK

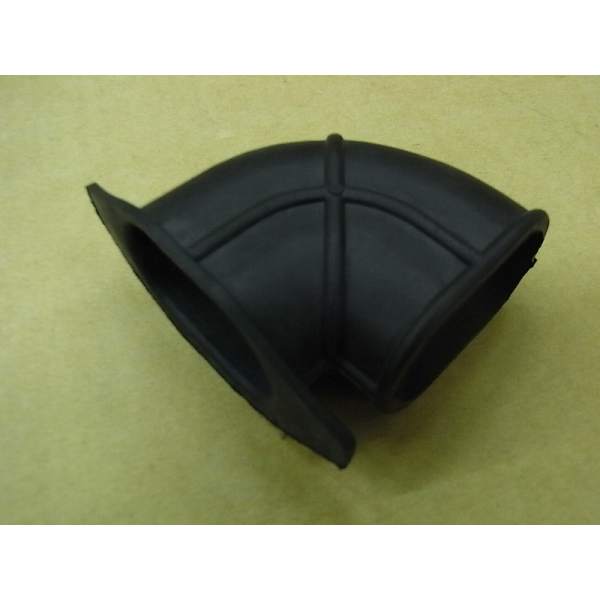

(26) 83605-T40-010

AIR/C INT. DUCT

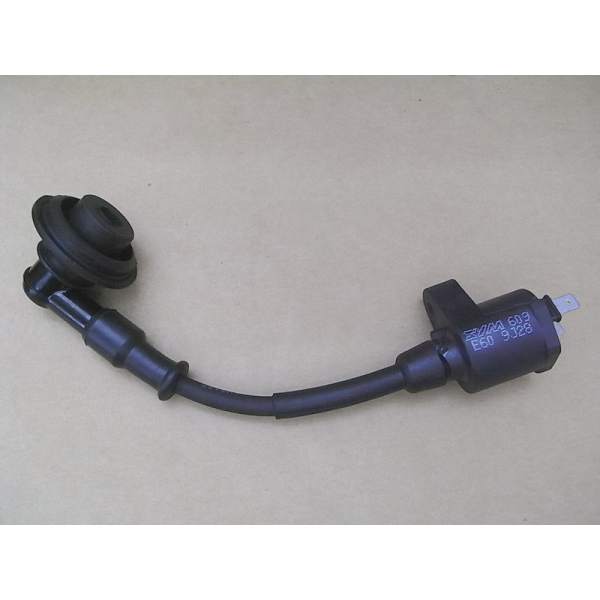

(27) 3051A-E60-000

IGN. COIL & PLUG CAP ASSY

(28) 90112-AAA-000

FLANGE BOLT 5*22

(29) 1550A-T6V-000

R.V./TUBE ASSY

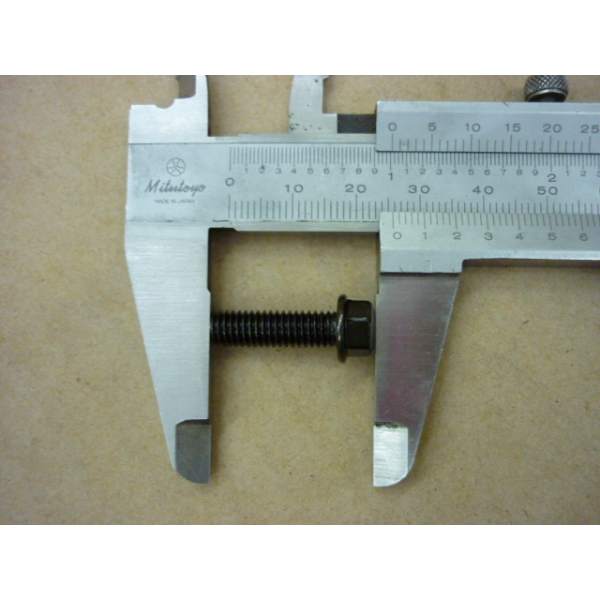

(30) 96001-06020-07

FLANGE BOLT SH 6X20

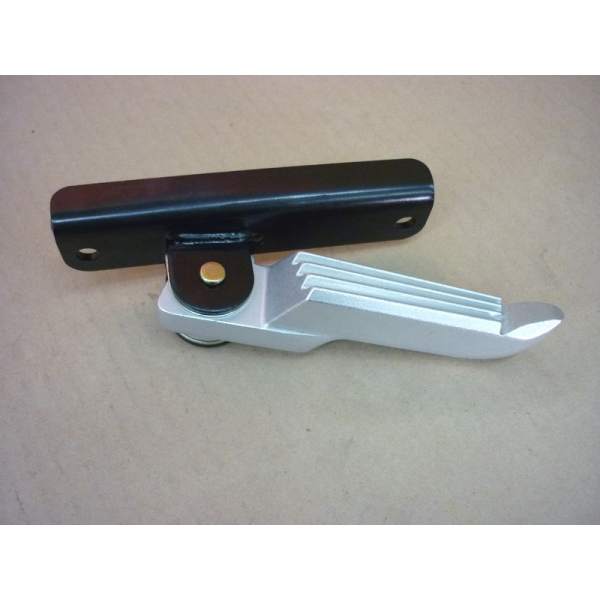

(32) 5062B-TFA-000

L PILLION STEP ASSY.

(33) 50535-E60-000

SIDE STAND SPRING

	Part number	Description	Qty
# 1	50100-TFA-000	FRAME BODY COMP BK-001C	Not available	0,00 €(0,00 £)
# 2	50306-M9Q-000 50306-M9Q-000-XS	STRG. STEM LOCK NUT	2,68 €(2,30 £)
# 3	53211-M7Q-000	RACE STRG TOP CONE	Not available	0,00 €(0,00 £)
# 5	50301-M9Q-000	RACE UP STRG BALL	Not available	0,00 €(0,00 £)
# 6	50305-M7Q-000	STRG. UNDER BALL RACE	7,03 €(6,02 £)
# 7	95801-08020-08	FLANGE BOLT 8X20MM	1,30 €(1,11 £)
# 8	50621-KBN-900	FRAME UNDER COVER	Not available	0,00 €(0,00 £)
# 9	93404-06016-07	FLANGE BOLT 6X16	0,61 €(0,52 £)		Special offer 0,61 €(0,52 £)
# 10	94050-06070	FLANGE NUT 6MM	0,46 €(0,39 £)
# 21	50530-E69-000	SIDE STAND BAR COMP	Not available	0,00 €(0,00 £)
# 23	90108-G03-000	SIDE STAND PIVOT SCREWBOLT	Not available	0,00 €(0,00 £)
# 24	94030-08080	HEX NUT 8MM	0,36 €(0,31 £)
# 25	50542-E60-000	SIDE STAND SPRING PLATE HOOK	Not available	0,00 €(0,00 £)
# 26	83605-T40-010	AIR/C INT. DUCT	Not available	0,00 €(0,00 £)
# 27	3051A-E60-000	IGN. COIL & PLUG CAP ASSY	37,96 €(32,51 £)
# 28	90112-GK8-010 90112-AAA-000	FLANGE BOLT 5*22	0,82 €(0,70 £)
# 29	1550A-T6V-000	R.V./TUBE ASSY	105,08 €(89,99 £)
# 30	96001-06020-07	FLANGE BOLT SH 6X20	1,16 €(0,99 £)
# 32	5062B-TFA-000	L PILLION STEP ASSY.	Not available	0,00 €(0,00 £)
# 33	50535-E60-000	SIDE STAND SPRING	Not available	0,00 €(0,00 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME BODY of your SYM JET SPORT X 50 (BK05W-6) (L1) (GERMAN MODEL) of 2011. Let us know if you have any questions.
