BODY COVER

STEERING STEM / FRONT FORK FOR SYM ALLO 50 (25 KMH) (AJ05W6-6) (L6) 2016

FRONT WHEEL

(1) 45451-N02-000

WIRE GROMMET

(2) 45156-ALA-000

FR. BRAKE HOSE CLAMP

(3) 50301-M9Q-000-XS

RACE UP STRG BALL

(4) 50302-M9Q-000-XS

RACE STRG. BOT BALL

(5) 50306-M9Q-000-XS

STRG. STEM LOCK NUT

(6) 51400-AYA-000

R.FR.CUSHION SILVER 41.8 CM W/O CAP

(7) 51500-AYA-000

L. FR. CUSHION SILVER 41.8 CM W/O CAP

(8) 53200-Z4A-000

STRG.STEM COMP DRILLED TOP TO BOTTOM

(9) 53211-M9Q-000-CN2

STRG. TOP CONE

(10) 53212-M9Q-000-XS

RACE STRG BOTTOM CONE

(11) 61100-Z4A-000-AI

FR.FENDER

(11) 61100-Z4A-000-KG

FR.FENDER BK5560

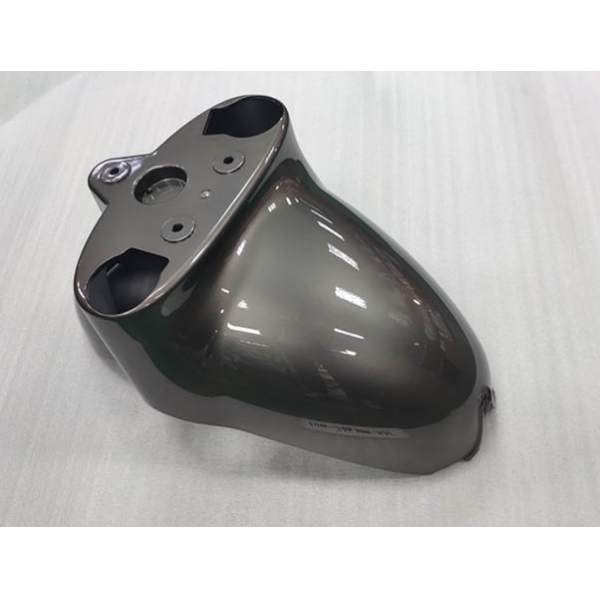

(11) 61100-Z4A-000-KH

FR. FENDER(IRON GREY)

(11) 61100-Z4A-000-SD

FR. FENDERGOLD)

(11) 61100-Z4A-000-WD

FR.FENDER WH8018P

(12) 95801-08040-00

FLANGE BOLT 8X40 M10

(13) 96211-05000

STEEL BALL #5

(14) 96211-08000

STEEL BALL 8MM(1/4 BALL)

(15) 95801-06020-08

FLANGE BOLT 6X20

(16) 77226-M3F-000

DAMPING RUBBER

(17) 90104-X04-000

FR. FORK COVER COLLAR

(18) 90110-H6T-000

SPECIAL SCREW 6X14

(19) 61101-Z4A-000-M

FR FENDER EMBLEM

	Part number	Description	Qty
# 1	45451-N02-000	WIRE GROMMET	1,76 €(1,51 £)
# 2	45156-ALA-000	FR. BRAKE HOSE CLAMP	7,85 €(6,72 £)
# 3	50301-M9Q-000-CN2 50301-M9Q-000-XS	RACE UP STRG BALL	5,22 €(4,47 £)
# 4	50302-M9Q-000-CN2 50302-M9Q-000-XS	RACE STRG. BOT BALL	4,39 €(3,76 £)
# 5	50306-M9Q-000-CN2 50306-M9Q-000-XS	STRG. STEM LOCK NUT	2,68 €(2,30 £)
# 6	51400-AYA-000	R.FR.CUSHION SILVER 41.8 CM W/O CAP	126,40 €(108,25 £)
# 7	51500-AYA-000	L. FR. CUSHION SILVER 41.8 CM W/O CAP	126,40 €(108,25 £)
# 8	53200-Z4A-000	STRG.STEM COMP DRILLED TOP TO BOTTOM	Not available	0,00 €(0,00 £)
# 9	53211-M9Q-000-CN2	STRG. TOP CONE	7,49 €(6,41 £)
# 10	53212-M9Q-000-CN2 53212-M9Q-000-XS	RACE STRG BOTTOM CONE	5,05 €(4,32 £)
# 11	61100-Z4A-000-AI	FR.FENDER	125,39 €(107,39 £)
# 11	61100-Z4A-000-KG	FR.FENDER BK5560	116,57 €(99,83 £)
# 11	61100-Z4A-000-KH	FR. FENDER(IRON GREY)	135,61 €(116,14 £)
# 11	61100-Z4A-000-SD	FR. FENDERGOLD)	125,33 €(107,34 £)
# 11	61100-Z4A-000-WD	FR.FENDER WH8018P	135,54 €(116,08 £)
# 12	95801-08040-00	FLANGE BOLT 8X40 M10	Not available	0,00 €(0,00 £)
# 13	96211-05000	STEEL BALL #5	Not available	0,00 €(0,00 £)
# 14	96211-08000	STEEL BALL 8MM(1/4 BALL)	0,34 €(0,29 £)
# 15	95801-06020-08	FLANGE BOLT 6X20	0,46 €(0,39 £)
# 16	77226-M3F-000	DAMPING RUBBER	1,16 €(0,99 £)
# 17	90104-X04-000	FR. FORK COVER COLLAR	1,30 €(1,11 £)
# 18	90110-H6T-000	SPECIAL SCREW 6X14	2,52 €(2,16 £)
# 19	61101-Z4A-000 61101-Z4A-000-M	FR FENDER EMBLEM	17,76 €(15,21 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
