CAMSHAFT

IGNITION HOUSING FOR SYM JOYRIDE 125 (LF12W-6 - LF12W-F) (K9) 2009

OIL PUMP

(1) 11330-LWA-000

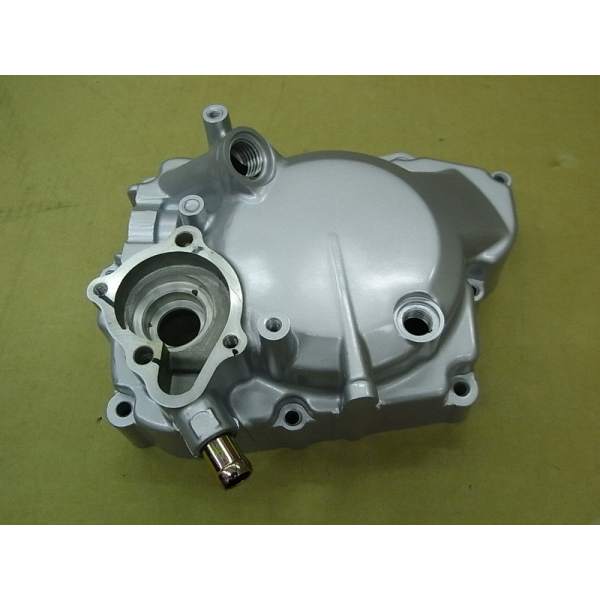

R CRANK CASE COVER COMP

(2) 11394-H9A-005

R. CRANK CASE COVER GASKET

(3) 1236A-M9T-000

TAPPET ADJ HOLE CAP ASSY

(4) 15421-B9D-000

OIL FILTER SCREEN

(5) 15426-M9Q-000

OIL FILTER SCREWSPG.

(6) 1565A-H9A-000

OIL LEVEL GAUGE ASSY

(7) 19217-TL1-300-TW

MECHANICAL SEAL

(8) 19229-H9A-002

WATER PUMP GASKET

(9) 1922A-H9B-000

WATER PUMP COVER ASSY

(10) 19231-KJ9-010

WATER PUMP SHAFT

(11) 31120-H9A-001

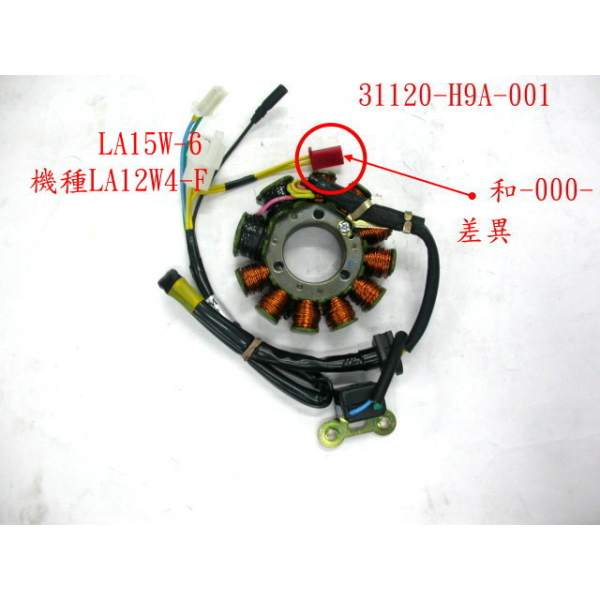

STATOR COMP.

(12) 9008A-H9A-000

A.C.G. CAP ASSY 14MM

(13) 90423-KJ9-000

WASHER 7.2X13X1.2

(14) 90478-700-000

WASHER A. 6MM

(15) 91001-KJ9-005

RADIAL BALL BRG.6901

(16) 91205-KF0-003

OIL SEAL 12X20X5

(17) 91302-M9T-000

O-RING 30.8*3.2

(18) 91303-377-000

OIL RING 13.8X2.5

(19) 93500-05016-0A

PAN SCREW 5X16

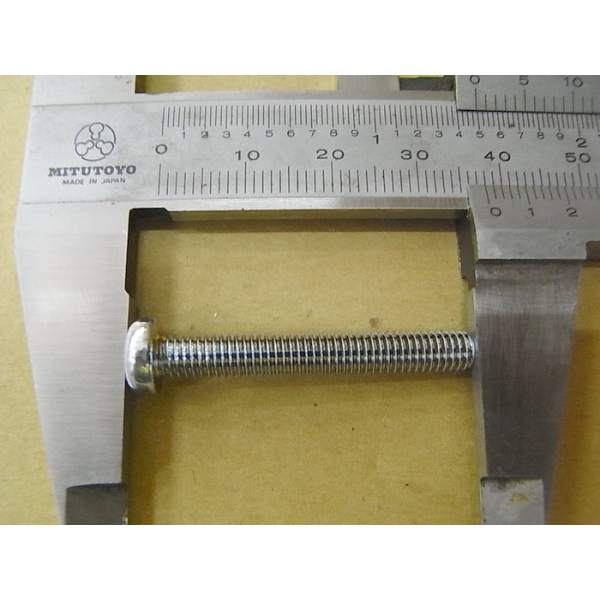

(20) 93500-05035-0A

PAN SCREW 5X35

(21) 94301-08140

DOWELL PIN 8X14

(22) 94520-26000

CIR CLIP IN 26MM

(23) 96001-06010-08

FLANGE BOLT SH 6X10

(24) 96001-06022-00

FLANGE BOLT 6X22

(25) 96001-06032-00

FLANGE BOLT SH 6X32

(26) 96001-06050-00

FLANGE BOLT SH 6X50

(27) 96001-06125-00

SH FLANGE BOLT 6*125

(28) 19215-KJ9-010

WATER PUMP IMPELLER

(29) 96100-60000

RADIAL BALL BEARING 6000

	Part number	Description	Qty
# 1	11330-LWA-000	R CRANK CASE COVER COMP	180,70 €(154,81 £)
# 2	11394-H9A-000 11394-H9A-005	R. CRANK CASE COVER GASKET	7,60 €(6,51 £)
# 3	1236A-V02-000 1236A-M9T-000	TAPPET ADJ HOLE CAP ASSY	3,62 €(3,10 £)
# 4	15421-M9Q-000 15421-B9D-000	OIL FILTER SCREEN	4,74 €(4,06 £)
# 5	15426-M9Q-000	OIL FILTER SCREWSPG.	0,67 €(0,57 £)
# 6	1565A-H9A-000	OIL LEVEL GAUGE ASSY	5,39 €(4,62 £)
# 7	19217-H9A-300 19217-TL1-300-TW	MECHANICAL SEAL	62,33 €(53,40 £)
# 8	19229-H9A-000 19229-H9A-002	WATER PUMP GASKET	1,20 €(1,03 £)
# 9	1922A-H9B-000	WATER PUMP COVER ASSY	15,61 €(13,37 £)
# 10	19231-KJ9-010	WATER PUMP SHAFT	28,79 €(24,67 £)
# 11	31120-H9A-001	STATOR COMP.	186,68 €(159,94 £)
# 12	9008A-H9A-000	A.C.G. CAP ASSY 14MM	4,51 €(3,86 £)
# 13	90423-KJ9-000	WASHER 7.2X13X1.2	0,68 €(0,58 £)
# 14	90478-700-000	WASHER A. 6MM	0,47 €(0,40 £)
# 15	91001-KJ9-005	RADIAL BALL BRG.6901	11,71 €(10,03 £)
# 16	91205-KF0-003	OIL SEAL 12X20X5	3,18 €(2,72 £)
# 17	91302-M9Q-000 91302-M9T-000	O-RING 30.8*3.2	0,58 €(0,50 £)
# 18	91303-M2Q-000 91303-377-000	OIL RING 13.8X2.5	0,37 €(0,32 £)
# 19	93500-05016-0A	PAN SCREW 5X16	0,24 €(0,21 £)
# 20	93500-05035-0A	PAN SCREW 5X35	0,59 €(0,51 £)
# 21	94301-08140	DOWELL PIN 8X14	1,10 €(0,94 £)
# 22	94520-26000	CIR CLIP IN 26MM	1,10 €(0,94 £)
# 23	96001-06010-08	FLANGE BOLT SH 6X10	0,46 €(0,39 £)
# 24	96001-06022-00	FLANGE BOLT 6X22	Not available	0,00 €(0,00 £)
# 25	96001-06032-00	FLANGE BOLT SH 6X32	Not available	0,00 €(0,00 £)
# 26	96001-06050-08 96001-06050-00	FLANGE BOLT SH 6X50	1,97 €(1,69 £)
# 27	96001-06125-00	SH FLANGE BOLT 6*125	1,31 €(1,12 £)
# 28	19215-KJ9-010	WATER PUMP IMPELLER	9,62 €(8,24 £)
# 29	96100-60000-00 96100-60000	RADIAL BALL BEARING 6000	9,43 €(8,08 £)
