LEFT CRANKCASE-KICK FOR SYM JOYRIDE 125 (LF12W-6 - LF12W-F) (K9) 2009

BELT PULLEY

(2) 11341-H9A-000

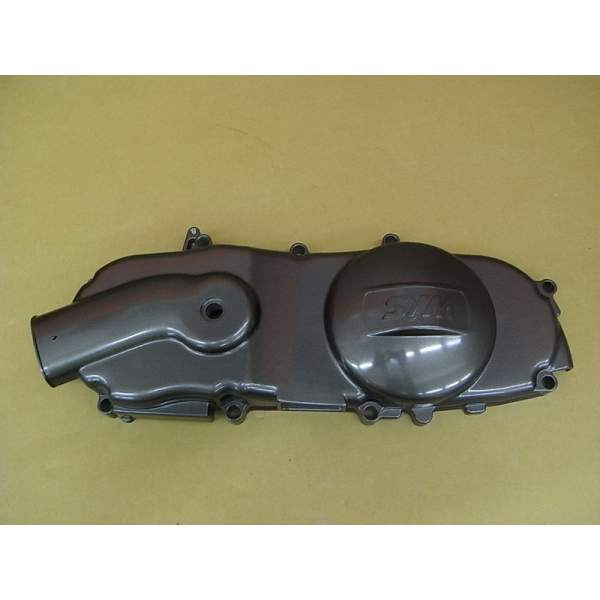

L. CRANK CASE COVER

(3) 11346-M9Q-000

L COVER DUCT BAND

(4) 11349-H9A-000

L COVER PLATE GASKET

(5) 11360-H01-300

KICK DRIVEN GEAR SHAFT

(6) 11395-H9A-000

L.COVER GASKET

(7) 28230-HNA-000

KICK DRIVEN GEAR COMP

(8) 28223-H01-000

STARTING GEAR FRICTION SPRING

(9) 28250-H01-000

KICK STARTER SPINDLE COMP

(11) 28281-H9A-000

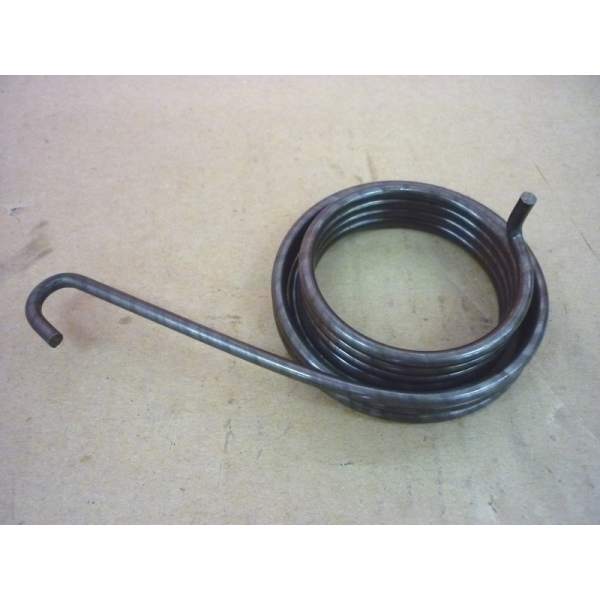

KICK RETURN SPRING

(12) 9000A-M9Q-000

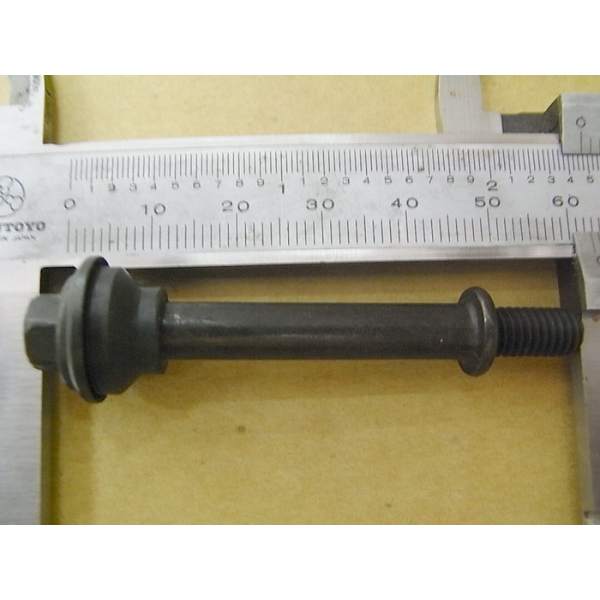

SPECIAL BOLT 6X57

(13) 9000B-M9Q-000

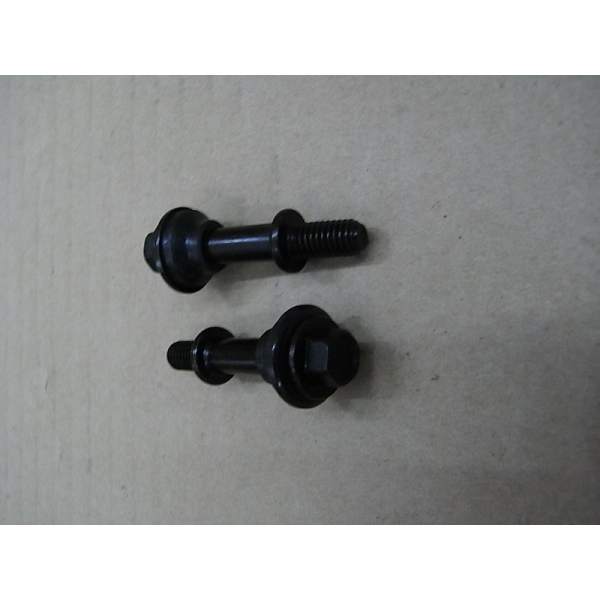

SPECIAL BOLT 6X37

(14) 90451-M7Q-000

KICK SPINDLE WASHER

(15) 93500-05012-0H

PAN SCREW 5X12

(16) 94511-M7Q-000

EX. CIR CLIP 14MM

(17) 28300-HKA-000

KICK STARTER ARM ASSY

(18) 95701-06022-07

FLANGE BOLT 6X12

	Part number	Description	Qty
# 2	11341-H9A-000	L. CRANK CASE COVER	Not available	0,00 €(0,00 £)

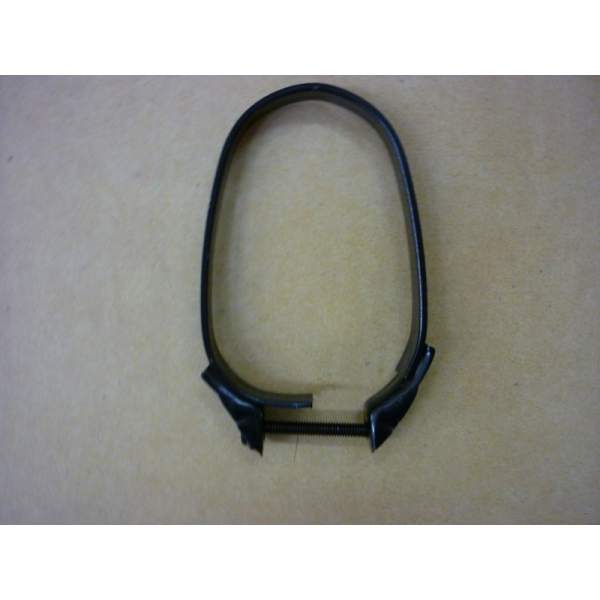

# 3	11346-M9Q-000	L COVER DUCT BAND	6,01 €(5,15 £)

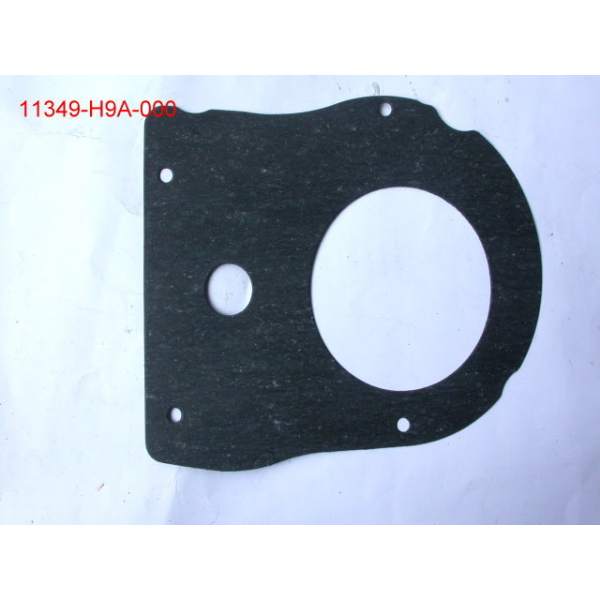

# 4	11349-H9A-000	L COVER PLATE GASKET	2,99 €(2,56 £)

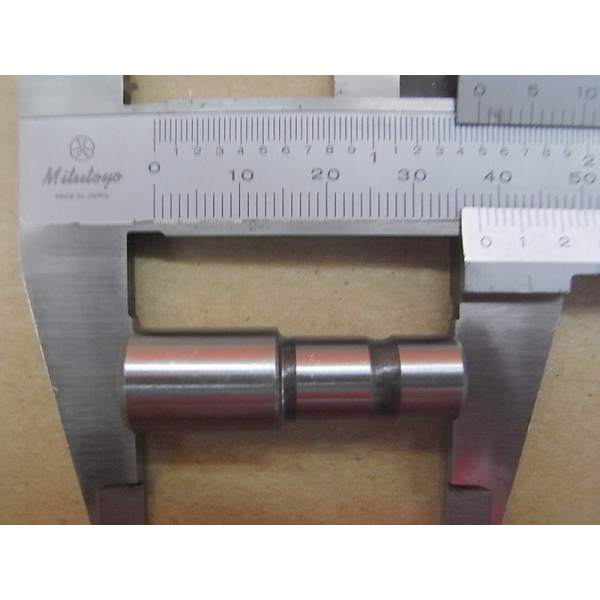

# 5	11360-H01-300	KICK DRIVEN GEAR SHAFT	7,37 €(6,31 £)

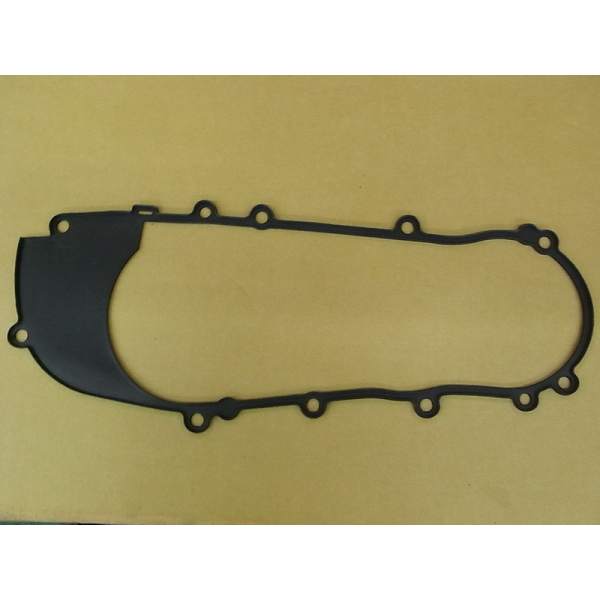

# 6	11395-H9A-000	L.COVER GASKET	12,74 €(10,91 £)

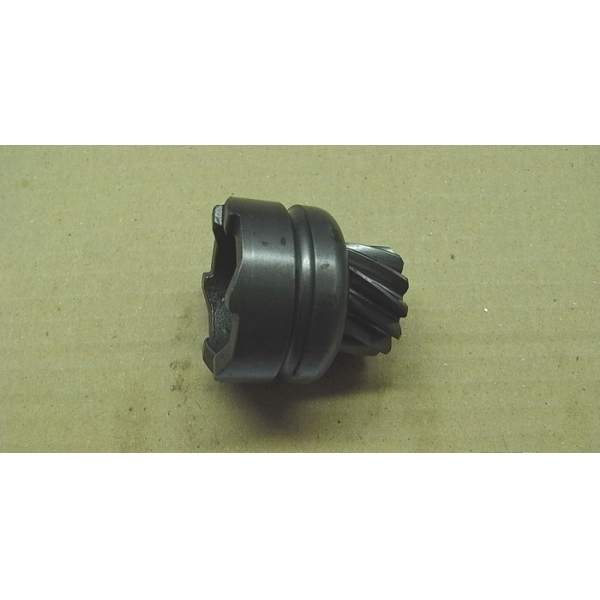

# 7	28230-HNA-000	KICK DRIVEN GEAR COMP	26,33 €(22,56 £)

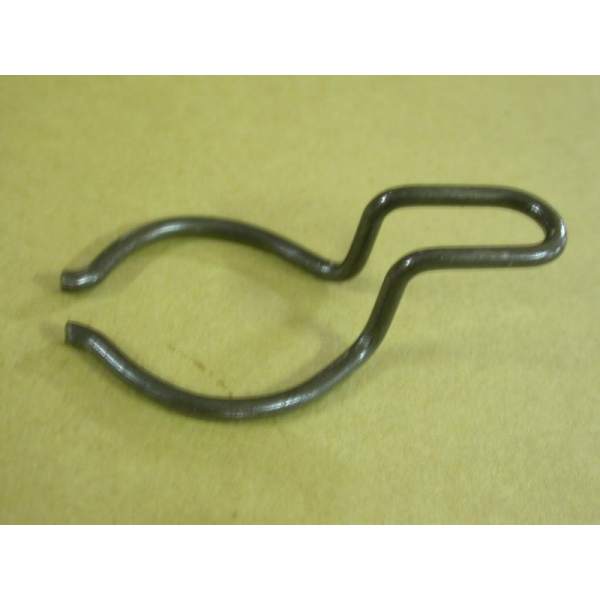

# 8	28223-H01-000	STARTING GEAR FRICTION SPRING	3,77 €(3,23 £)

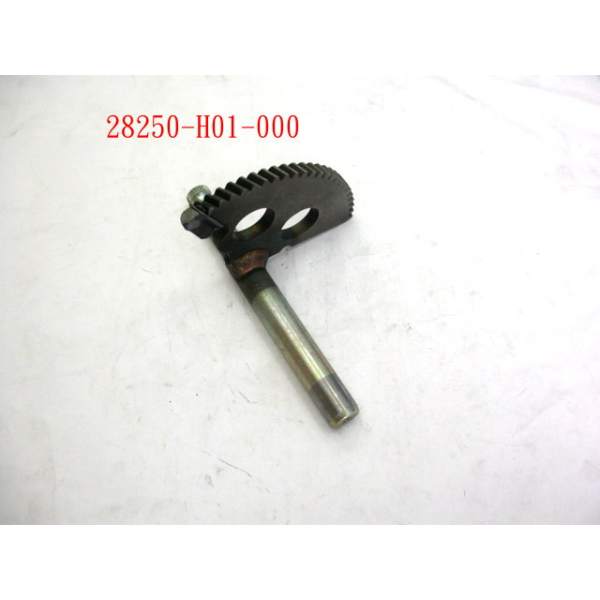

# 9	28250-H01-000	KICK STARTER SPINDLE COMP	32,32 €(27,69 £)
# 11	28281-H9A-000	KICK RETURN SPRING	6,12 €(5,24 £)
# 12	9000A-M9Q-000	SPECIAL BOLT 6X57	3,23 €(2,77 £)
# 13	9000B-M9Q-000	SPECIAL BOLT 6X37	3,59 €(3,08 £)
# 14	90451-GN2-600	KICK SPINDLE WASHER	Not available	0,00 €(0,00 £)
# 15	93500-05012-0H	PAN SCREW 5X12	0,46 €(0,39 £)
# 16	94511-14000	EX. CIR CLIP 14MM	Not available	0,00 €(0,00 £)

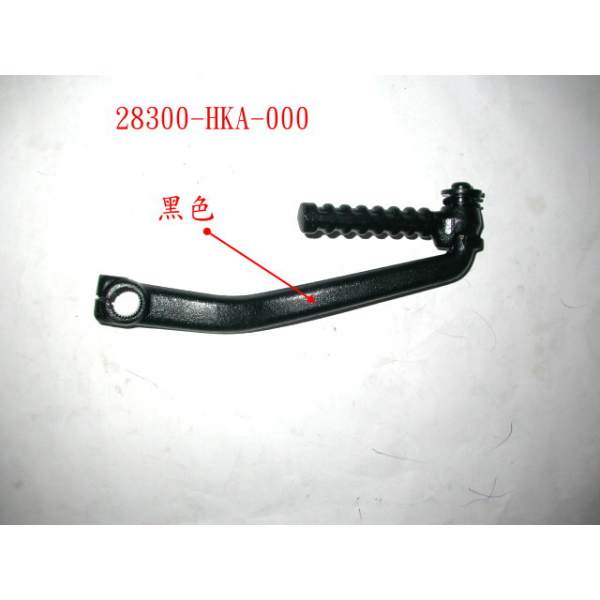

# 17	28300-HKA-000	KICK STARTER ARM ASSY	31,39 €(26,89 £)
# 18	95701-06022-07	FLANGE BOLT 6X12	Not available	0,00 €(0,00 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
