FRAME BODY - ENGINE HANGER FOR SYM FIDDLE II 50 (45 KMH) (AF05W4-EU) (E4) (L8-M0) 2020

(01) 11345-AWA-000

L COVER DUCT

(02) 1134B-S1B-000

L. COVER DUCT BAND

(03) 50100-AYS-000

FRAME BODY COMP

(04) 95014-62200

WIRE BAND B2

(05) 50351-AWA-010

ENG. HANGER LINK

(06) 50352-A1A-000

LINK STOPPER RUBBER

(07) 50353-GG2-710

SWING LOCK BUSH

(08) 50613-ALA-000

UNDER COVER

(09) 44301-A31-900

FLANGE BOLT

(10) 93404-06016-00

WASHER BOLT 6X16

	Part number	Description	Qty
# 01	11345-AWA-000	L COVER DUCT	18,94 €(16,28 £)
# 02	1134B-S1B-A00 1134B-S1B-000	L. COVER DUCT BAND	0,94 €(0,81 £)

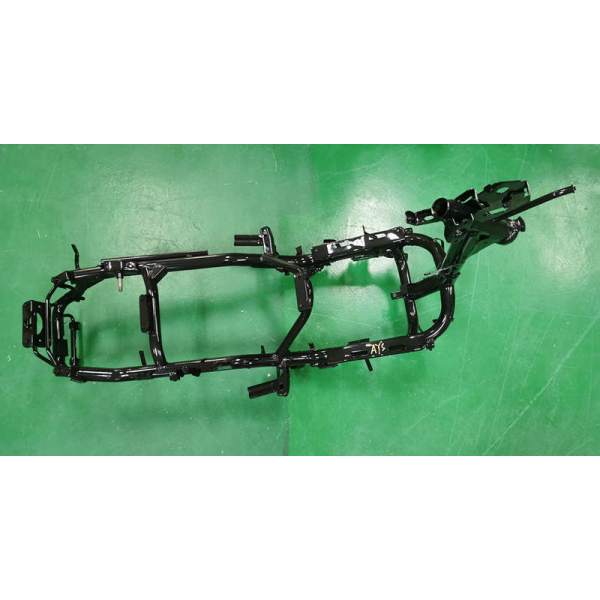

# 03	50100-AYS-000	FRAME BODY COMP	442,22 €(380,07 £)
# 04	95014-62200	WIRE BAND B2	0,65 €(0,56 £)
# 05	50351-AWA-010	ENG. HANGER LINK	51,19 €(44,00 £)
# 06	50352-A1A-000	LINK STOPPER RUBBER	3,20 €(2,75 £)
# 07	50353-M9Q-000 50353-GG2-710	SWING LOCK BUSH	8,23 €(7,07 £)
# 08	50613-ALA-000	UNDER COVER	18,79 €(16,15 £)
# 09	44301-A31-900	FLANGE BOLT	6,70 €(5,76 £)
# 10	93404-06016-00	WASHER BOLT 6X16	Not available	0,00 €(0,00 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME BODY - ENGINE HANGER of your SYM FIDDLE II 50 (45 KMH) (AF05W4-EU) (E4) (L8-M0) of 2020. Let us know if you have any questions.
