SEAT - REAR GRIP FOR SYM FIDDLE II 50 (45 KMH) (AF05W4-EU) (E4) (L8-M0) 2020

FUEL TANK

(01) 36600-A1A-200

ENG. START CONTROL SW

(02) 77200-AYS-000

DOUBLE SEAT COMP

(02) 77200-X1A-830-T2

DOUBLE SEAT COMP(BLACK/WHITE)

(02) 77200-X1A-810-T3

DOUBLE SEAT COMP(WHITE/COFFEE)

(02) 77200-X1A-830-T1-RH

DOUBLE SEAT COMP BLACK/RED TRIM

(02) 77200-X1A-830-T2

DOUBLE SEAT COMP(BLACK/WHITE)

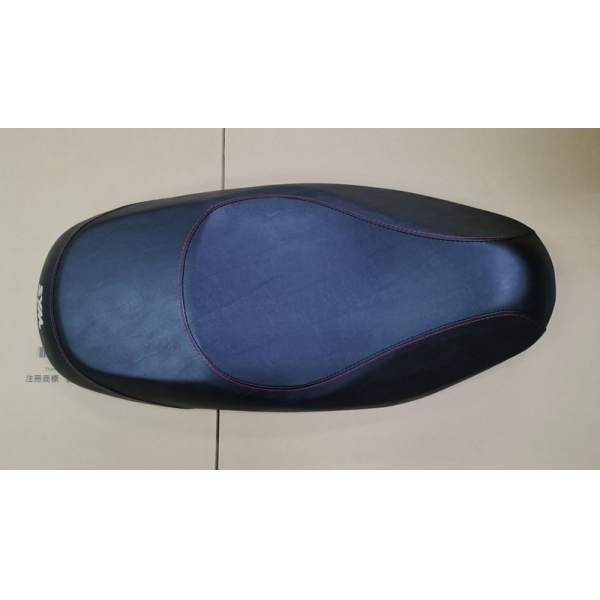

(02) 77200-X1A-830-T1-RH

DOUBLE SEAT COMP BLACK/RED TRIM

(02) 77200-X1A-830-T2

DOUBLE SEAT COMP(BLACK/WHITE)

(03) 77201-AAA-000

SEAT HINGE COMP.

(04) 77230-AKA-000

SEAT CATCH COMP.

(05) 94050-06080

NUT. FLANGE 6M

(06) 77240-ABA-000

SEAT LOCK CABLE

(07) 81200-A2C-000-K1

RR.CARRIER(BLACK)

(08) 81250-X1A-000

LUGGAGE BOX

(09) 81251-ALA-000

COUVERCLE D'ACCES CARBURATEUR

(10) 87505-XGA-000

TIRE LABEL

(11) 87560-XGA-000

DRIVE CAUTION MARK

(12) 95801-06012-08

FLANGE BOLT 6X12

(13) 90105-T36-000

HINGE PIN

(14) 93903-34320

TAPPING SCREW 4X12

(15) 90308-X04-000

FLANGE SPECIAL NUT 10MM

(16) 93401-08025-04

WASHER BOLT 8X25

(17) 93404-06016-00

WASHER BOLT 6X16

	Part number	Description	Qty
# 01	36600-A1A-010 36600-A1A-200	ENG. START CONTROL SW	16,44 €(14,15 £)
# 02	77200-AYS-000	DOUBLE SEAT COMP	135,28 €(116,41 £)
# 02	77200-X1A-810-T2 77200-X1A-830-T2	DOUBLE SEAT COMP(BLACK/WHITE)	132,61 €(114,11 £)
# 02	77200-X1A-810-T3	DOUBLE SEAT COMP(WHITE/COFFEE)	120,43 €(103,63 £)
# 02	77200-X1A-810-T7 77200-X1A-830-T1-RH	DOUBLE SEAT COMP BLACK/RED TRIM	132,61 €(114,11 £)
# 02	77200-X1A-820-T2 77200-X1A-830-T2	DOUBLE SEAT COMP(BLACK/WHITE)	132,61 €(114,11 £)
# 02	77200-X1A-830-T1-RH	DOUBLE SEAT COMP BLACK/RED TRIM	132,61 €(114,11 £)
# 02	77200-X1A-830-T2-RH 77200-X1A-830-T2	DOUBLE SEAT COMP(BLACK/WHITE)	132,61 €(114,11 £)
# 03	77201-AAA-000	SEAT HINGE COMP.	12,13 €(10,44 £)
# 04	77230-AKA-000	SEAT CATCH COMP.	16,27 €(14,00 £)
# 05	94050-06080	NUT. FLANGE 6M	0,46 €(0,40 £)
# 06	77240-ABA-000	SEAT LOCK CABLE	15,86 €(13,65 £)
# 07	81200-A2C-000-K1	RR.CARRIER(BLACK)	118,26 €(101,76 £)
# 08	81250-X1A-000	LUGGAGE BOX	90,43 €(77,82 £)
# 09	81251-ALA-000	COUVERCLE D'ACCES CARBURATEUR	3,30 €(2,84 £)
# 10	87505-XGA-000	TIRE LABEL	Not available	0,00 €(0,00 £)
# 11	87560-XGA-000	DRIVE CAUTION MARK	0,78 €(0,67 £)
# 12	95801-06012-08	FLANGE BOLT 6X12	0,44 €(0,38 £)
# 13	90105-T36-000	HINGE PIN	1,80 €(1,55 £)
# 14	93903-34320	TAPPING SCREW 4X12	0,25 €(0,22 £)
# 15	90308-X04-000	FLANGE SPECIAL NUT 10MM	0,43 €(0,37 £)
# 16	93401-08025-04	WASHER BOLT 8X25	1,06 €(0,91 £)
# 17	93404-06016-00	WASHER BOLT 6X16	Not available	0,00 €(0,00 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the SEAT - REAR GRIP of your SYM FIDDLE II 50 (45 KMH) (AF05W4-EU) (E4) (L8-M0) of 2020. Let us know if you have any questions.
