CRANK SHAFT

DRIVEN PULLEY FOR SYM MAXSYM 600I ABS (LX60A2-F) (L4) 2014

RIGHT CRANKCASE COVER

(1) 11371-HMA-000

BERING STAY COLLAR

(2) 1137A-HMA-000

BERING STAY COLLAR ASSY.

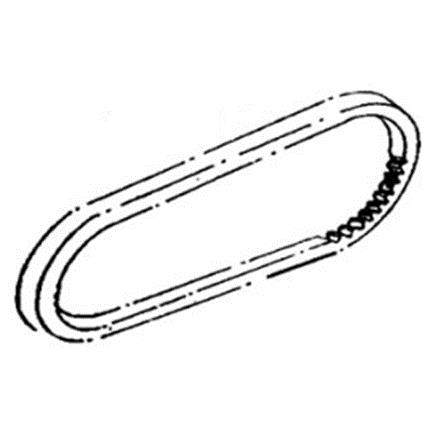

(3) 1B01L6C01

DRIVE BELT 1085X28.8X28

(4) 22101-L6C-000

CLUTCH OUTER

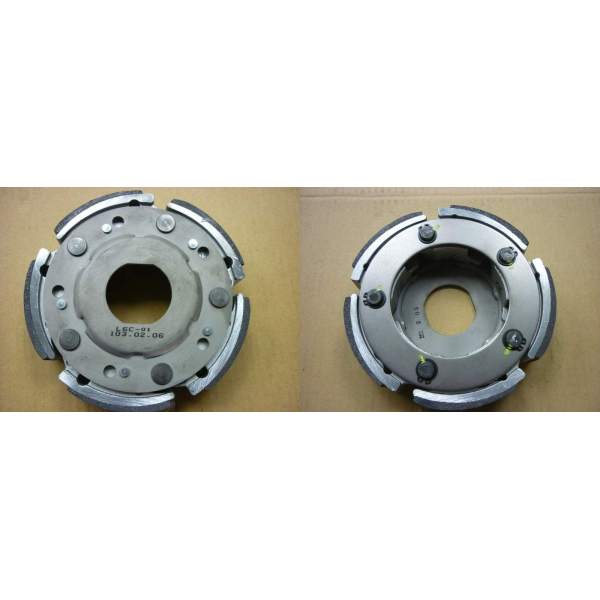

(5) 22300-L6C-000

DRIVE PLATE ASSY

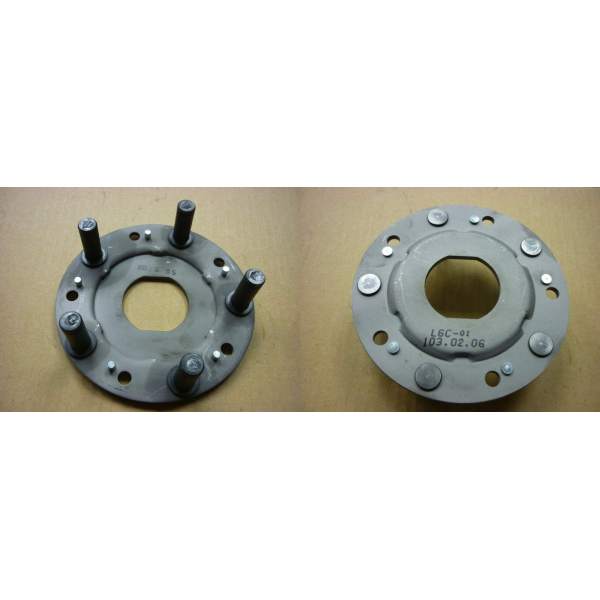

(6) 22350-L6C-000

DRIVE PLATE COMP

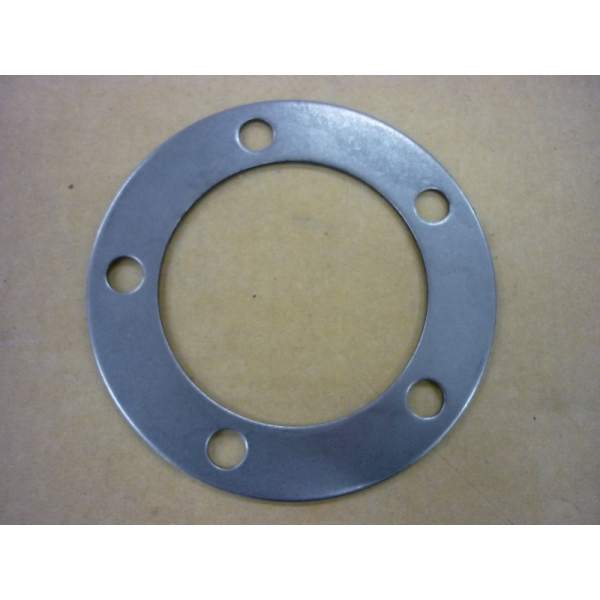

(7) 22361-L4A-000

CLUTCH SIDE PLATE

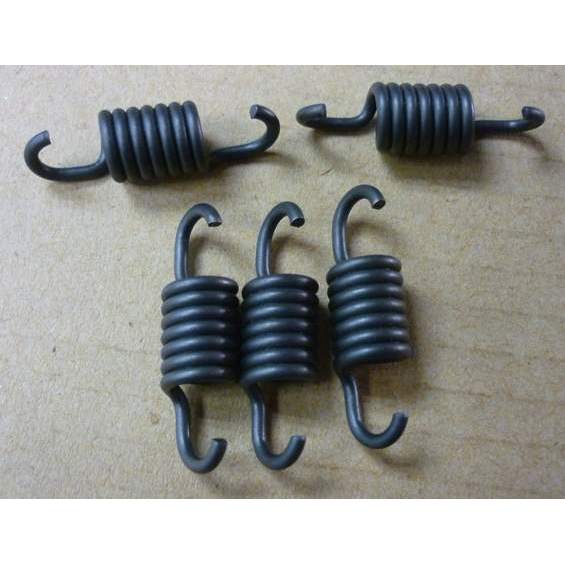

(8) 22401-L6C-000

CLUTCH SPRING

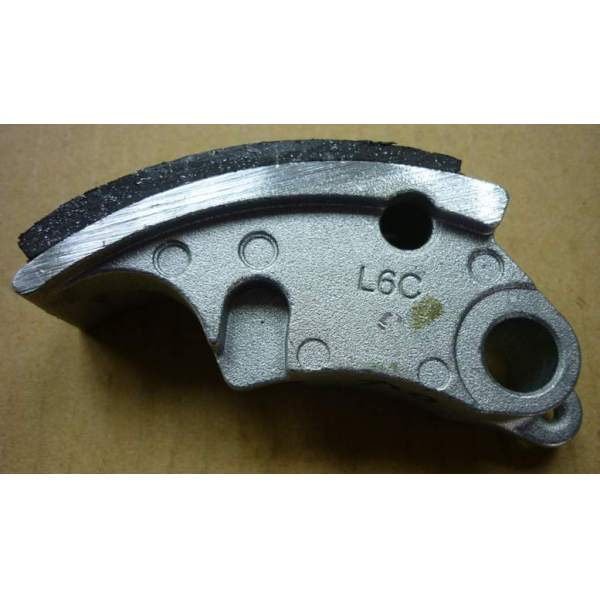

(9) 22530-L6C-000-A

CLUTCH WEIGHT(5PCS/1SET)

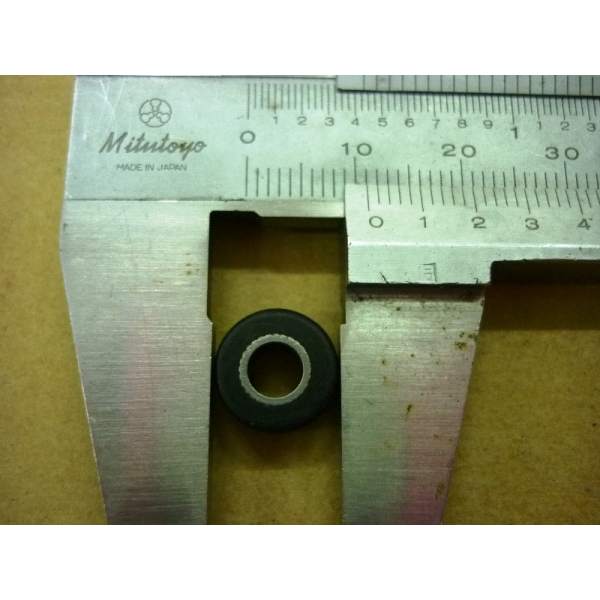

(10) 22804-L4A-000

CLUTCH DAMPER RUBBER

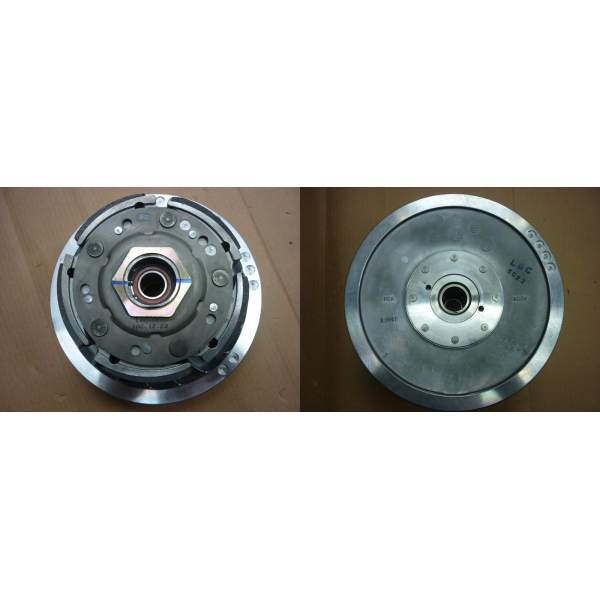

(11) 23010-L6C-000

DRIVEN PULLEY ASSY

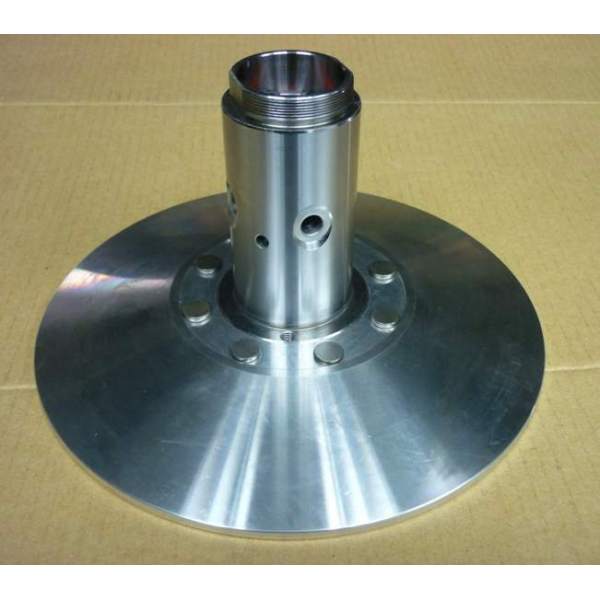

(12) 23200-L6C-000

DRIVEN FACE ASSY

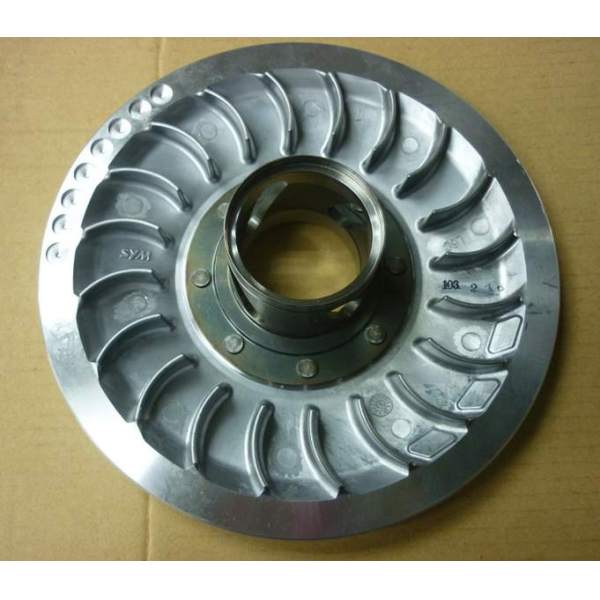

(13) 23220-L6C-000

MOVABLE DRIVEN FACE COMP

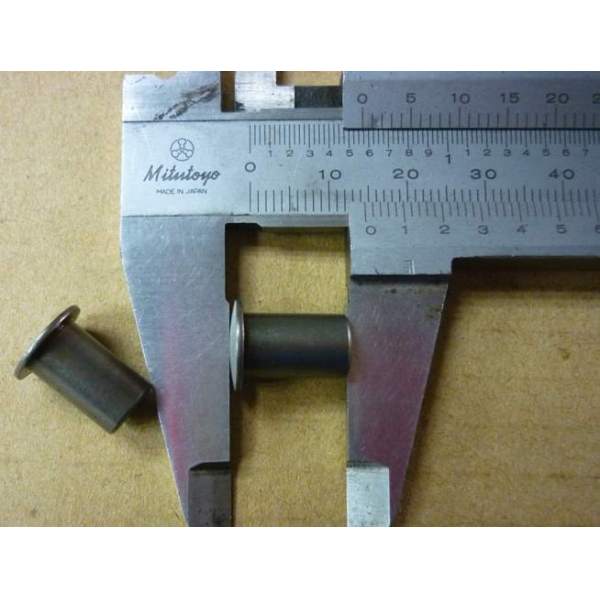

(14) 23225-L6C-000

ROLLER GUIDE PIN

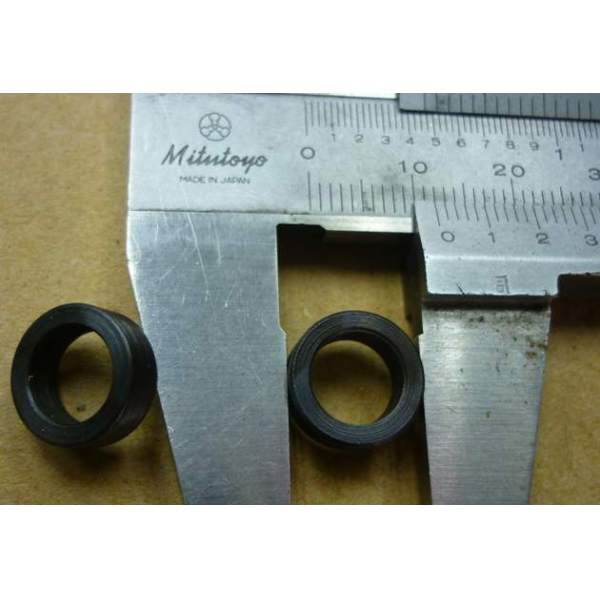

(15) 23226-L6C-000

ROLLER GUIDE

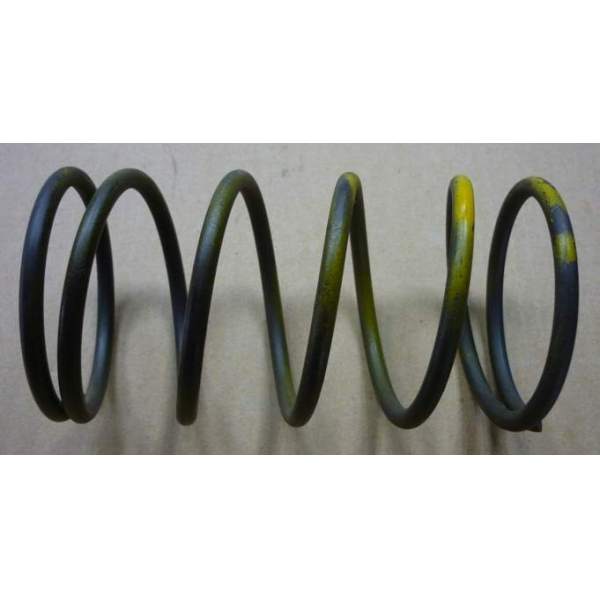

(16) 23233-L6C-000

DRIVEN FACE SPRING

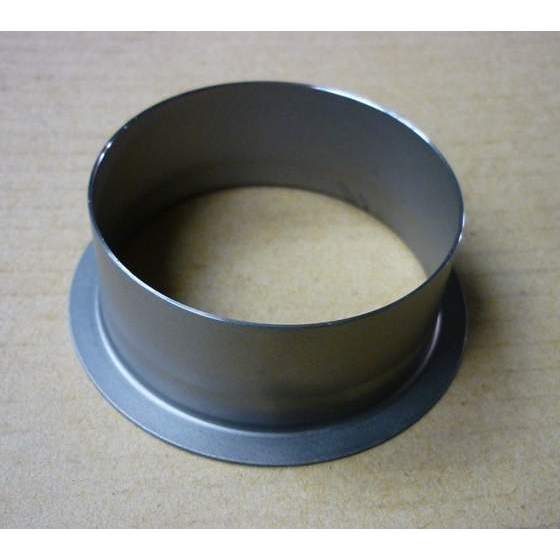

(17) 23237-L6C-000

COLLAR. SEAL

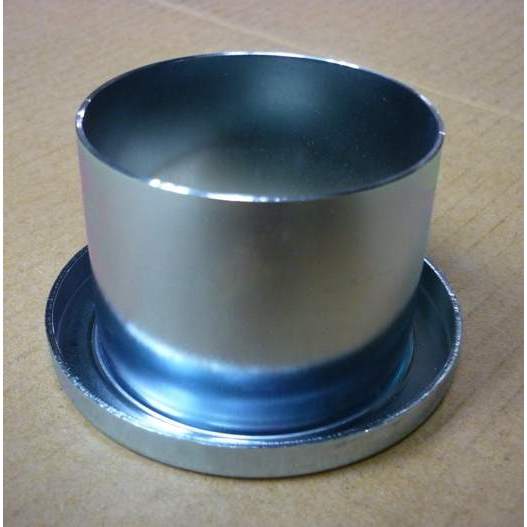

(18) 23238-L6C-000

SPRING COLLAR

(19) 90201-KR8-751-M1

FLANGE NUT 14MM

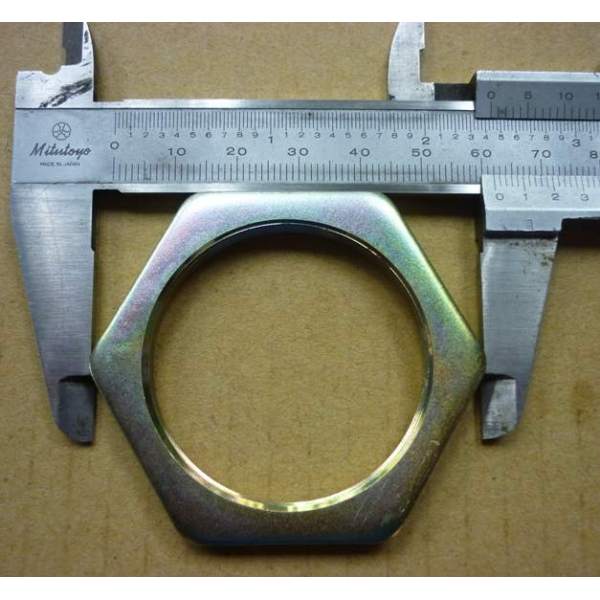

(20) 90202-L6C-000

SPECIAL NUT 28MM

(21) 90401-KJ9-000

THRUST WASHER 14X28X2

(22) 90602-L6C-000

COLLAR

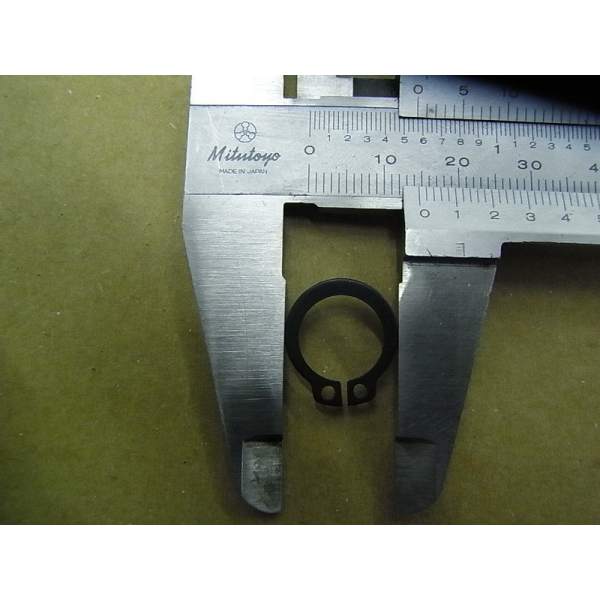

(23) 90603-L4A-000

C-RING

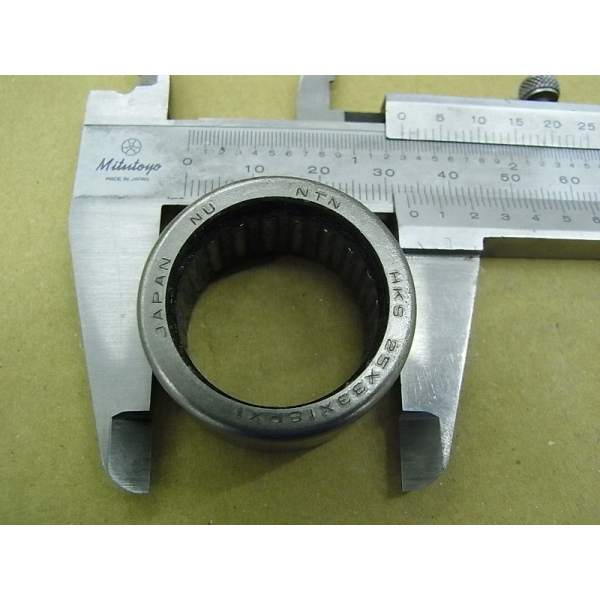

(24) 91006-L4A-300

NEEDLE BREAING HKS25*33*18

(25) 91007-L6C-000

BEARING

(26) 91211-L6C-000

SEAL DRIVEN FACE

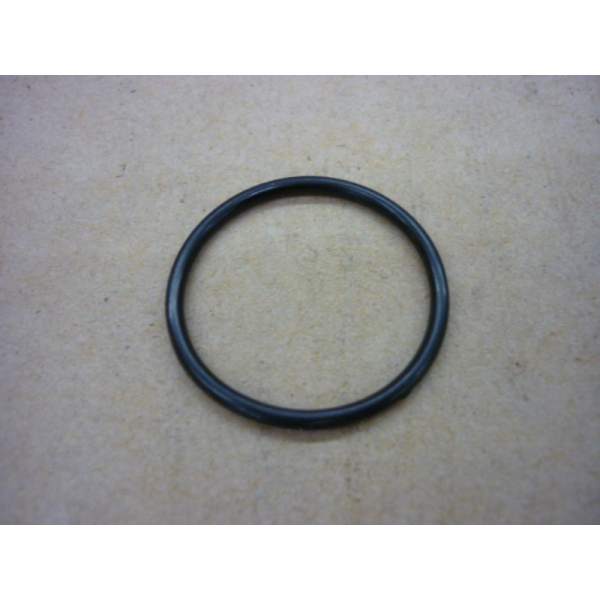

(27) 91303-HMA-000

O-RING 26.5*2.0

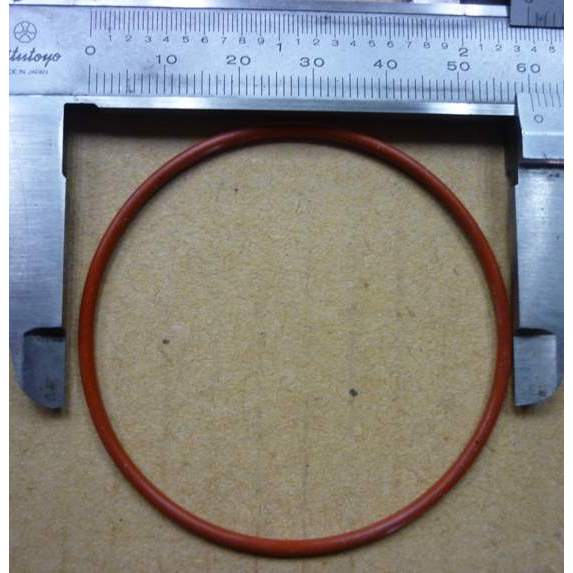

(28) 91305-L6C-000

O-RING

	Part number	Description	Qty
# 1	11371-HMA-000	BERING STAY COLLAR	25,73 €(22,04 £)
# 2	1137A-HMA-000	BERING STAY COLLAR ASSY.	31,06 €(26,60 £)
# 3	1B01L6C01	DRIVE BELT 1085X28.8X28	195,14 €(167,12 £)
# 4	22101-L6C-000	CLUTCH OUTER	171,49 €(146,87 £)
# 5	22300-L6C-000	DRIVE PLATE ASSY	274,27 €(234,89 £)
# 6	22350-L6C-000	DRIVE PLATE COMP	94,69 €(81,10 £)
# 7	22361-L4A-000	CLUTCH SIDE PLATE	13,79 €(11,81 £)
# 8	22401-L6C-000	CLUTCH SPRING	5,77 €(4,94 £)
# 9	22530-L6C-000-A	CLUTCH WEIGHT(5PCS/1SET)	210,80 €(180,54 £)
# 10	22804-L4A-000	CLUTCH DAMPER RUBBER	4,46 €(3,82 £)
# 11	23010-L6C-000	DRIVEN PULLEY ASSY	790,45 €(676,97 £)
# 12	23200-L6C-000	DRIVEN FACE ASSY	364,03 €(311,77 £)
# 13	23220-L6C-000	MOVABLE DRIVEN FACE COMP	205,34 €(175,86 £)
# 14	23225-L6C-000	ROLLER GUIDE PIN	3,66 €(3,13 £)
# 15	23226-L6C-000	ROLLER GUIDE	4,73 €(4,05 £)
# 16	23233-L6C-000	DRIVEN FACE SPRING	34,86 €(29,86 £)
# 17	23237-L6C-000	COLLAR. SEAL	19,56 €(16,75 £)
# 18	23238-L6C-000	SPRING COLLAR	12,94 €(11,08 £)
# 19	90201-KR8-751-M1	FLANGE NUT 14MM	2,64 €(2,26 £)
# 20	90202-L6C-000	SPECIAL NUT 28MM	12,13 €(10,39 £)
# 21	90401-KJ9-000	THRUST WASHER 14X28X2	1,37 €(1,17 £)
# 22	90602-L6C-000	COLLAR	7,56 €(6,47 £)
# 23	90603-L4A-000	C-RING	6,40 €(5,48 £)
# 24	91006-L4A-300	NEEDLE BREAING HKS253318	85,67 €(73,37 £)
# 25	91007-L6C-000	BEARING	47,32 €(40,53 £)
# 26	91211-L6C-000	SEAL DRIVEN FACE	9,84 €(8,43 £)
# 27	91303-HMA-000	O-RING 26.5*2.0	Not available	0,00 €(0,00 £)
# 28	91305-L6C-000	O-RING	4,57 €(3,91 £)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
