SWING ARM FOR SYM MAXSYM 600I ABS (LX60A2-F) (L4) 2014

REAR SHOCK ABSORBER

(1) 11203-L4A-000

RR.CUSH UND BUSH RUBBER

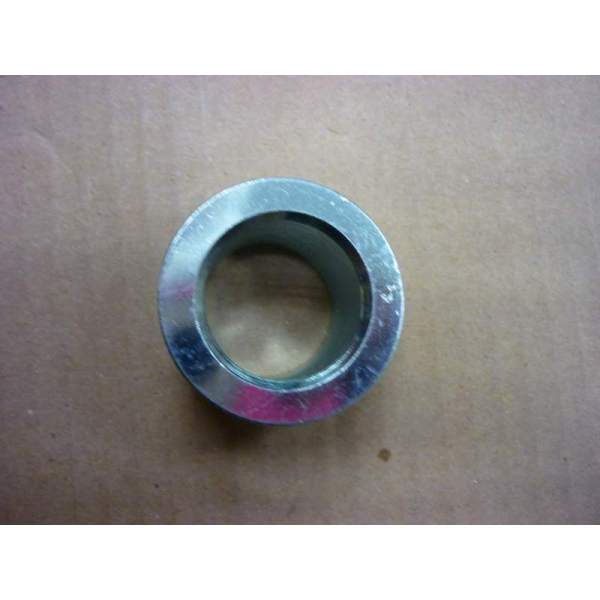

(2) 42311-L6C-000

RR. AXLE A COLLAR

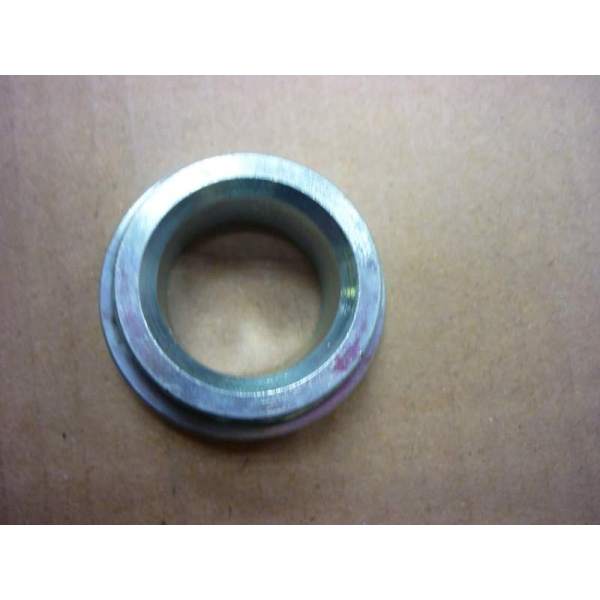

(3) 42312-L6C-000

RR. AXLE B COLLAR

(4) 43146-L4A-000

RR BRAKE HOSE CLAMP B

(4) 43146-L4A-004

RR BRAKE HOSE CLAMP B

(5) 44870-L4C-000-CN1

ABS. SPEED SENSOR

(6) 44871-L4C-000

ABS. SPEED SENSOR BRKT.

(7) 45125-L4A-000

RR. BRAKE HOSE CLAMP

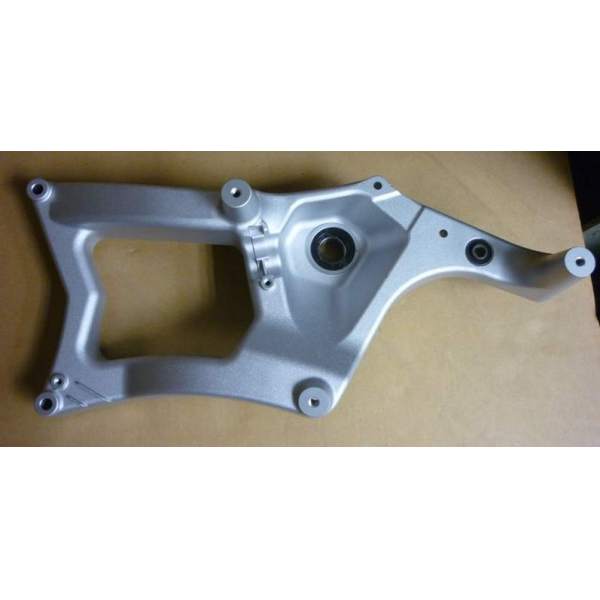

(8) 5210A-L6C-000

RR. FORK ASSY

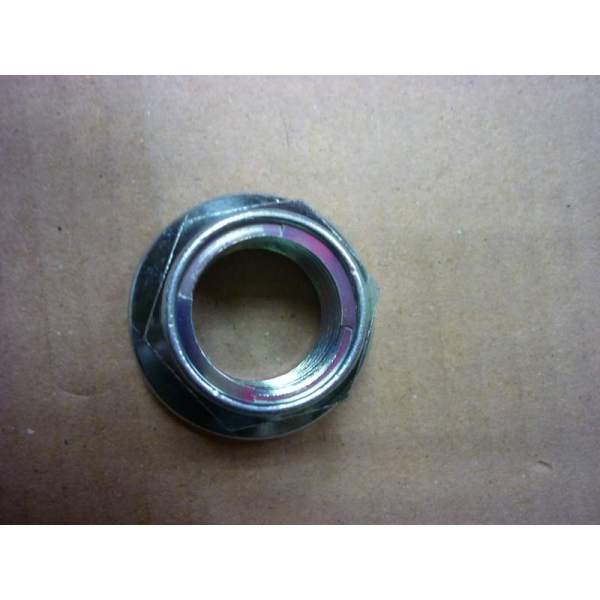

(9) 90306-L6C-000

U NUT

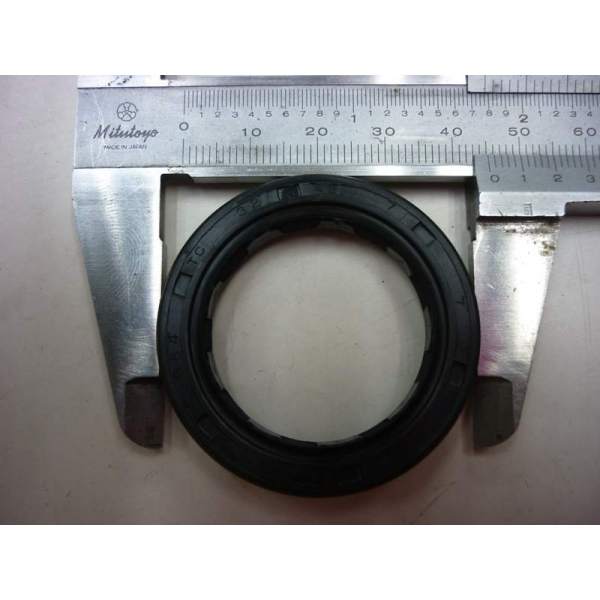

(10) 90754-L6C-000

DUST SEAL

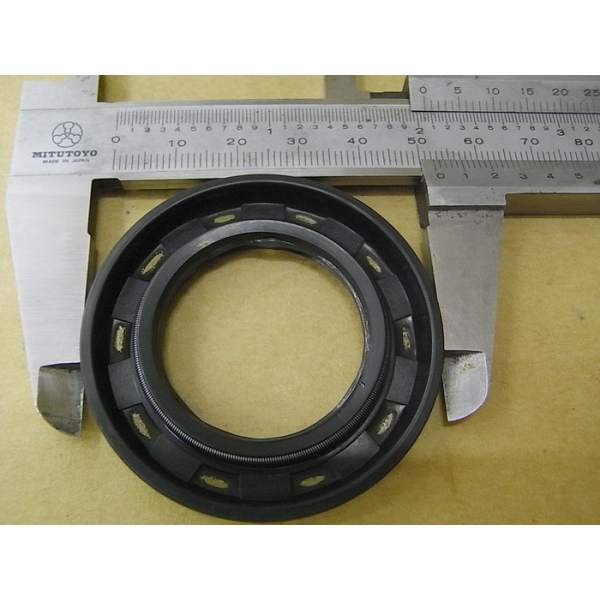

(11) 91203-LEA-000

OIL SEAL TC32*52*7

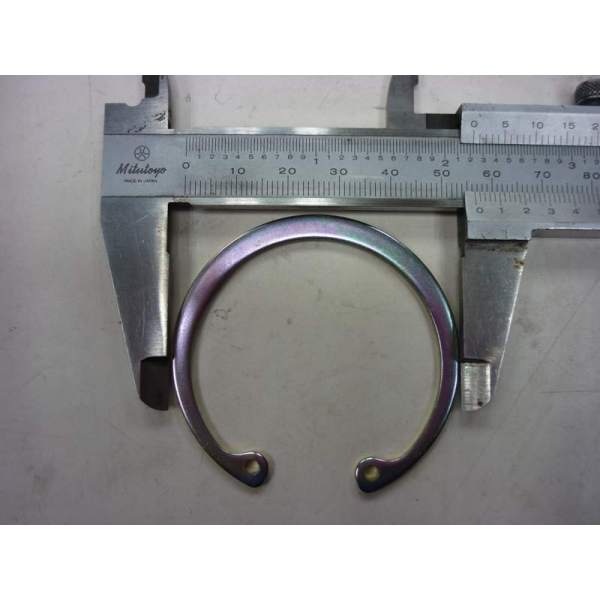

(12) 94524-52000

CIRCLIP

(13) 95801-06012-04

FLANGE BOLT 6X12

(14) 95801-06016-07

FLANGE BOLT 6X16

(15) 95801-10075-07

FLANGE BOLT 10*75

(16) 96150-62050-10

RADIAL BALL BEARING 6205LLU

	Part number	Description	Qty
# 1	11203-L4A-000	RR.CUSH UND BUSH RUBBER	7,30 €(6,25 £)
# 2	42311-L6C-000	RR. AXLE A COLLAR	12,60 €(10,78 £)
# 3	42312-L6C-000	RR. AXLE B COLLAR	12,24 €(10,47 £)
# 4	43146-L4A-000	RR BRAKE HOSE CLAMP B	Not available	0,00 €(0,00 £)
# 4	43146-L4A-004	RR BRAKE HOSE CLAMP B	Not available	0,00 €(0,00 £)
# 5	44870-L4C-000	ABS. SPEED SENSOR	Not available	0,00 €(0,00 £)
# 6	44871-L4C-000	ABS. SPEED SENSOR BRKT.	15,36 €(13,14 £)
# 7	45125-L4A-000	RR. BRAKE HOSE CLAMP	4,98 €(4,26 £)
# 8	5210A-L6C-000	RR. FORK ASSY	257,74 €(220,56 £)
# 9	90306-L6C-000	U NUT	27,79 €(23,78 £)
# 10	90754-L6C-000	DUST SEAL	3,48 €(2,98 £)
# 11	91203-LEA-000	OIL SEAL TC32527	6,95 €(5,95 £)
# 12	94524-52000	CIRCLIP	4,36 €(3,73 £)
# 13	95801-06012-07	FLANGE BOLT 6X12	Not available	0,00 €(0,00 £)
# 14	95801-06016-07	FLANGE BOLT 6X16	0,41 €(0,35 £)
# 15	95801-10075-07	FLANGE BOLT 10*75	3,34 €(2,86 £)
# 16	96150-62050-10	RADIAL BALL BEARING 6205LLU	16,60 €(14,21 £)
