Displacement

Year

Finish line

Parts catalogue

Parts diagram

INLET PIPE

CYLINDER SET FOR SYM MAXSYM TL 500 (TL47W1-EU) (L9) 2019

CRANK SHAFT

CYLINDER SET SYM scooter 500 2019 MAXSYM TL 500 (TL47W1-EU) (L9) MAXSYM TL 500 (TL47W1-EU) (L9)
1

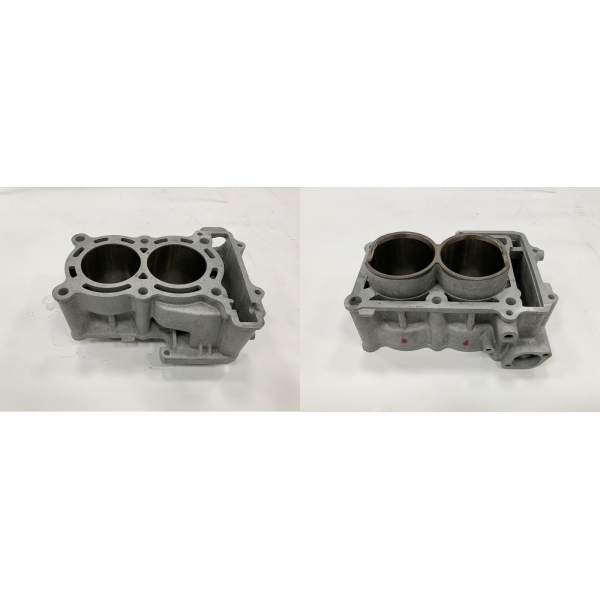

CYLINDER COMP
CYLINDER COMP

12100TL1000  

Unit Price Incl. Tax

2

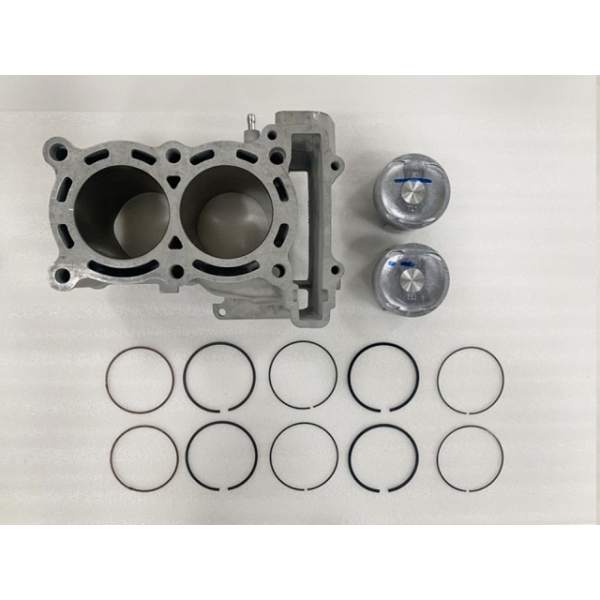

CYLINDER SET
CYLINDER SET

12100TL1000A  

Unit Price Incl. Tax

3
CYLINDER GASKET

12191TL1000  

Unit Price Incl. Tax

4
CYLINDER HEAD GASKET

12251TL1000  

Unit Price Incl. Tax

5
PISTON RING SET

13010TL1000  

Unit Price Incl. Tax

6
PISTON

13101TL1000  

Unit Price Incl. Tax

7
PISTON PIN 16*46.6

13111TL1000  

Unit Price Incl. Tax

8
TENDEUR DE CHAINE
TENDEUR DE CHAINE

14520H6T000  

Unit Price Incl. Tax

9
VIS DE REGLAGE
VIS DE REGLAGE

14522H6T000  

Unit Price Incl. Tax

10
TENSIONER LIFTER GASKET

14523M9Q002  

14523-Z8G-000

Unit Price Incl. Tax

11
JOINT TORIQUE
JOINT TORIQUE

14524H6T000  

Unit Price Incl. Tax

12
RESSORT
RESSORT

14525H6T000  

Unit Price Incl. Tax

13
SONDE PRESSION D HUILE
SONDE PRESSION D HUILE

37240L4A000  

Unit Price Incl. Tax

14
BOULON 6X22
BOULON 6X22

90001RFS000  

Unit Price Incl. Tax

15
DOWEL PIN 12*16

91020TL1000  

Unit Price Incl. Tax

16
PISTON PIN CLIP 16MM

9460116000  

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
