Displacement

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK

RIGHT LEFT BODY COVER / TAIL LIGHT FOR SYM MAXSYM TL 500 (TL47W1-EU) (L9) 2019

RIGHT LEFT FLOOR PANEL ASSY

RIGHT LEFT BODY COVER / TAIL LIGHT SYM scooter 500 2019 MAXSYM TL 500 (TL47W1-EU) (L9) MAXSYM TL 500 (TL47W1-EU) (L9)
1

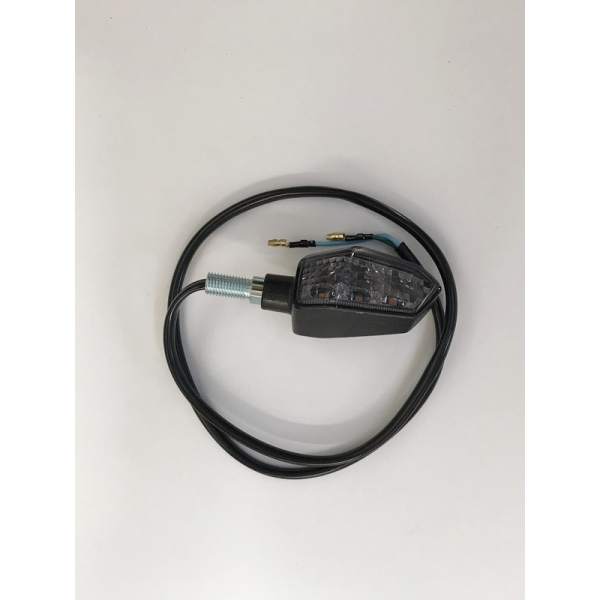

RR. R WINKER ASSY
RR. R WINKER ASSY

33600TL1000  

Unit Price Incl. Tax

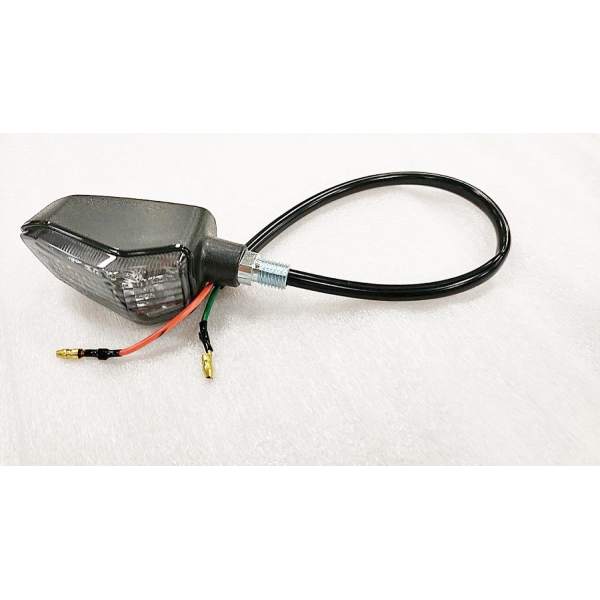

2
RR. L WINKER ASSY
RR. L WINKER ASSY

33650TL1000  

Unit Price Incl. Tax

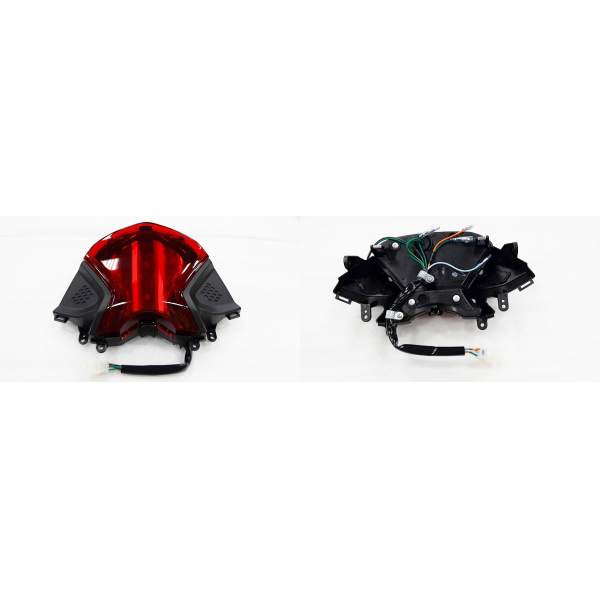

3
TAIL LIGHT ASSY
TAIL LIGHT ASSY

33700TL1000  

Unit Price Incl. Tax

4
ECLAIRAGE DE PLAQUE
ECLAIRAGE DE PLAQUE

33740E4D010  

Unit Price Incl. Tax

5
CATADIOPTRE
CATADIOPTRE

33741M9A100  

Unit Price Incl. Tax

6
RR. FENDER BK-001U

80100TL1000KA  

Unit Price Incl. Tax

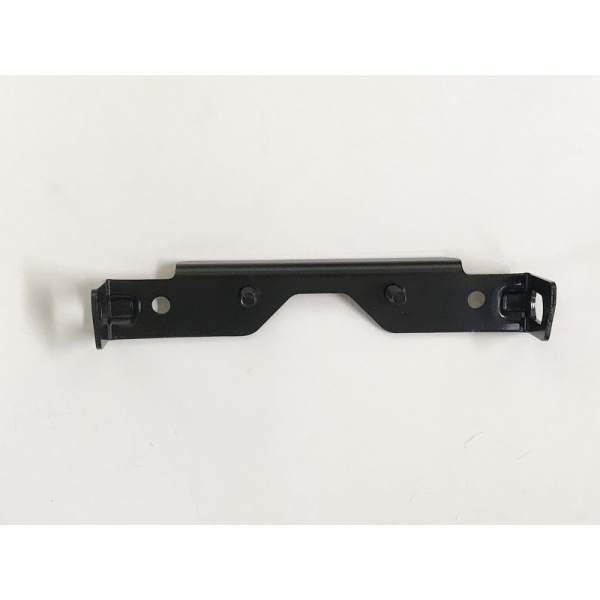

7
RR. WINKER STAY
RR. WINKER STAY

80107TL1000  

Unit Price Incl. Tax

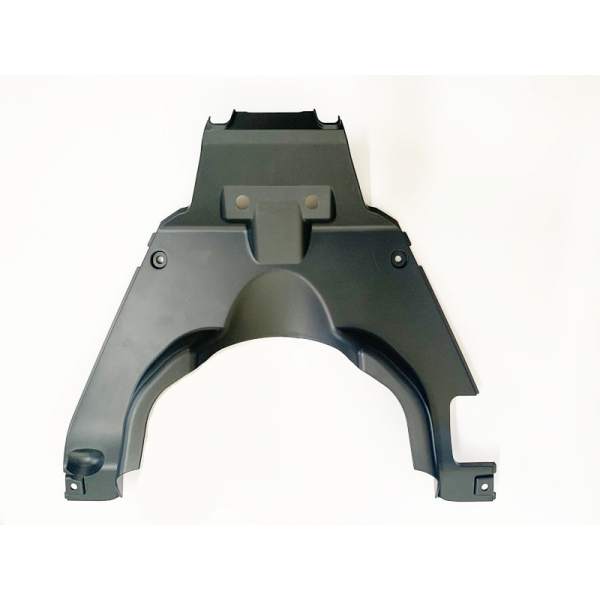

8
RR. INNER FENDER ASSY. BK-001U
RR. INNER FENDER ASSY. BK-001U

8010ATL1000KA  

Unit Price Incl. Tax

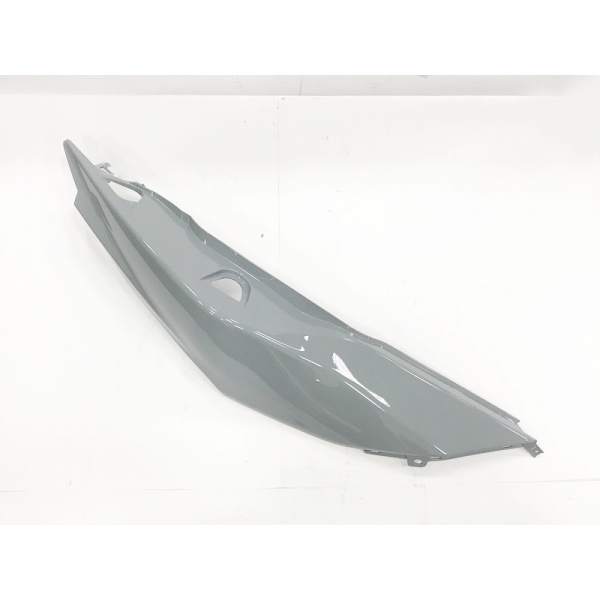

9
R BODY COVER GY-008C
R BODY COVER GY-008C

83500TL1000GG  

Unit Price Incl. Tax

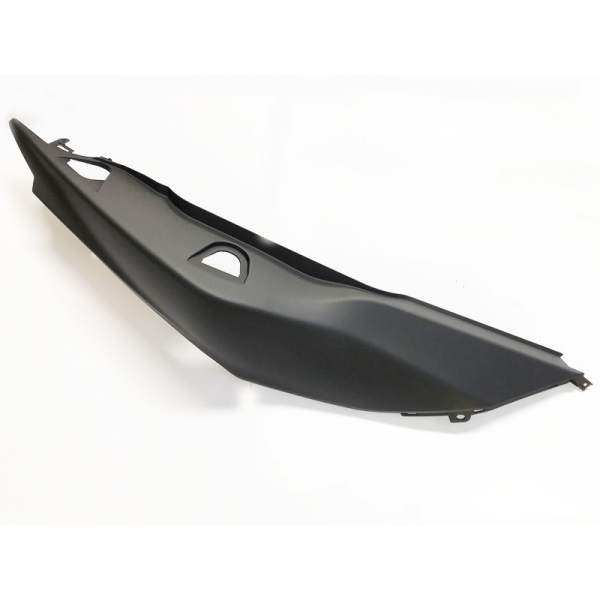

9
R BODY COVER BK-001UL
R BODY COVER BK-001UL

83500TL1000JH  

Unit Price Incl. Tax

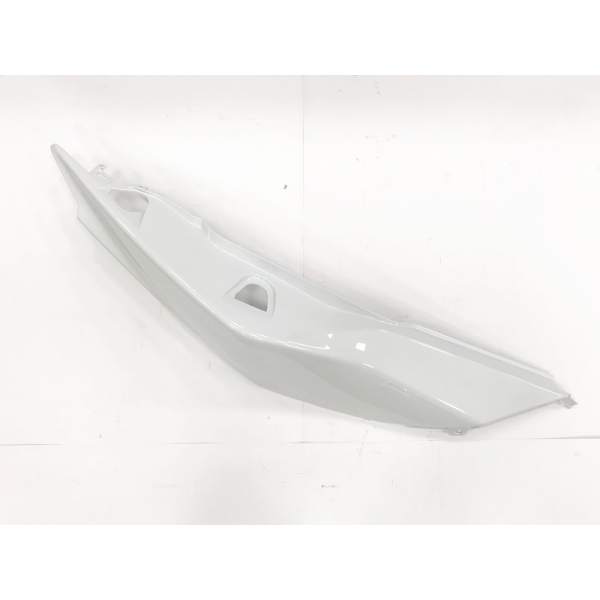

9
R BODY COVER WH-300P
R BODY COVER WH-300P

83500TL1000QU  

Unit Price Incl. Tax

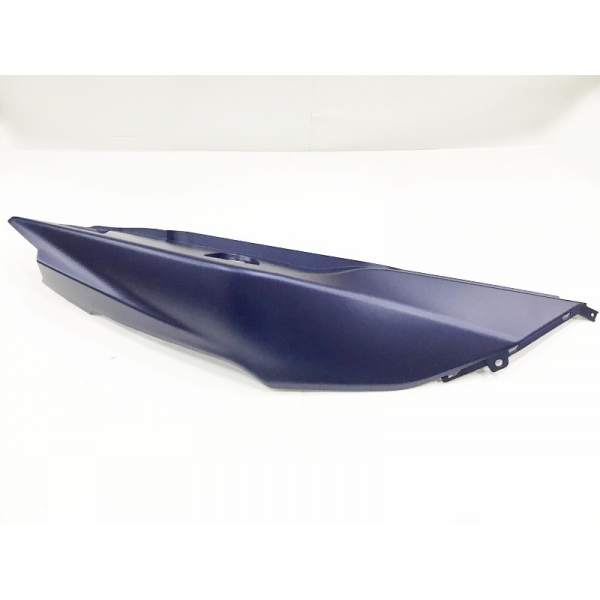

9
R BODY COVER BU-2747U
R BODY COVER BU-2747U

83500TL1000UH  

Unit Price Incl. Tax

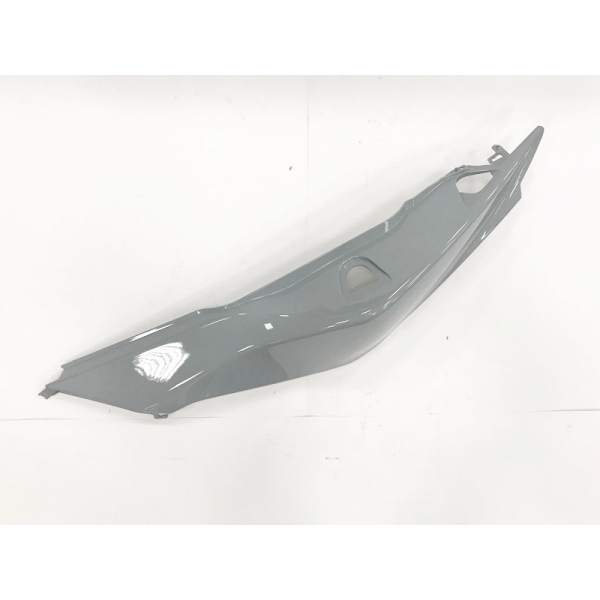

10
L BODY COVER GY-008C
L BODY COVER GY-008C

83600TL1000GG  

Unit Price Incl. Tax

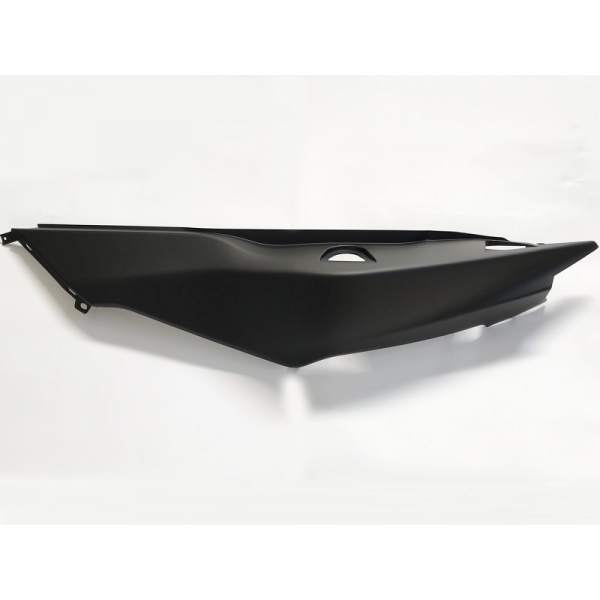

10
L BODY COVER BK-001UL
L BODY COVER BK-001UL

83600TL1000JH  

Unit Price Incl. Tax

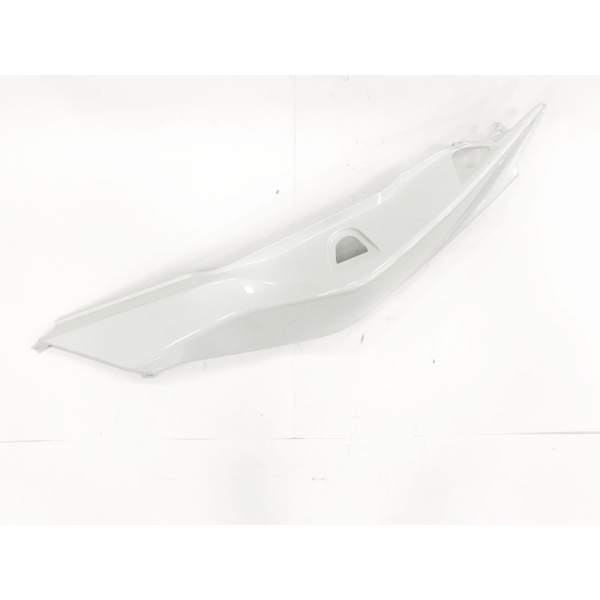

10
L BODY COVER WH-300P
L BODY COVER WH-300P

83600TL1000QU  

Unit Price Incl. Tax

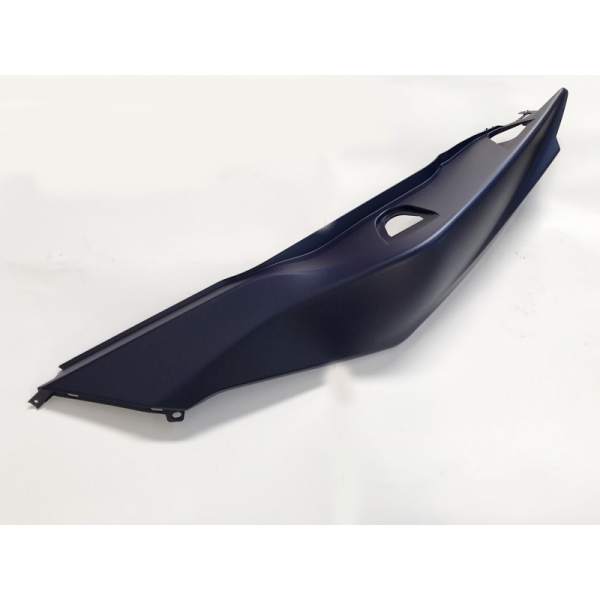

10
L BODY COVER BU-2747U
L BODY COVER BU-2747U

83600TL1000UH  

Unit Price Incl. Tax

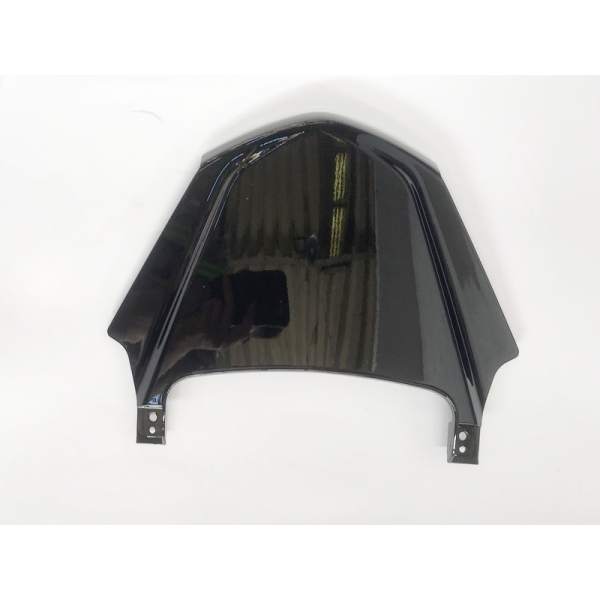

11
RR CENTER COVER BK-001C
RR CENTER COVER BK-001C

83750TL1000KB  

Unit Price Incl. Tax

12
EMBLEME DROIT (MAXSYM)
EMBLEME DROIT (MAXSYM)

87126TL1000  

Unit Price Incl. Tax

12
EMBLEME DROIT (TL500)
EMBLEME DROIT (TL500)

87126TL1100  

Unit Price Incl. Tax

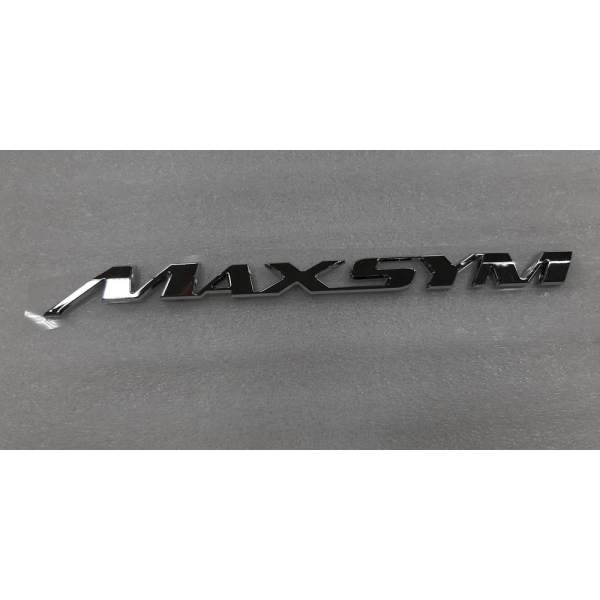

13
EMBLEME GAUCHE (MAXSYM)
EMBLEME GAUCHE (MAXSYM)

87127TL1000  

Unit Price Incl. Tax

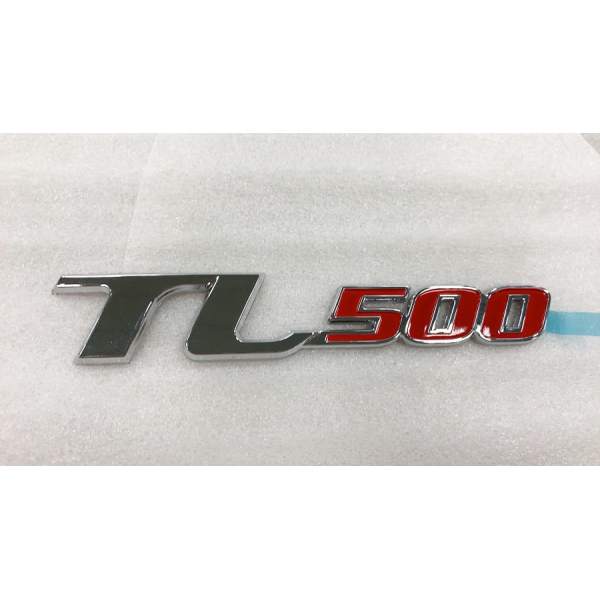

13
EMBLEME GAUCHE (TL500)
EMBLEME GAUCHE (TL500)

87127TL1100  

Unit Price Incl. Tax

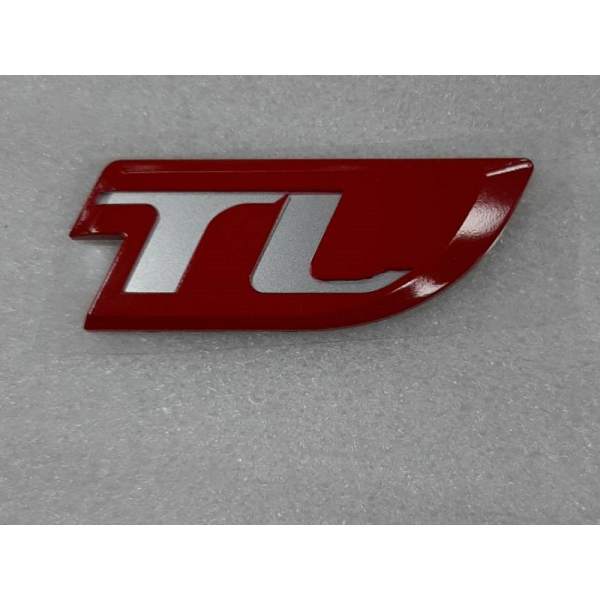

14
BODY COVER EMBLEM ( TL ) R-200CA+S-011U
BODY COVER EMBLEM ( TL ) R-200CA+S-011U

87128TL1010  

Unit Price Incl. Tax

15
ECROU PLASTIQUE 6MM
ECROU PLASTIQUE 6MM

90115REA000  

Unit Price Incl. Tax

16
ECROU RESSORT 4MM
ECROU RESSORT 4MM

90302V02000  

Unit Price Incl. Tax

17
ECROU SPECIAL 10MM
ECROU SPECIAL 10MM

90308X04000  

Unit Price Incl. Tax

18
HABILLAGE
HABILLAGE

9390335280  

Unit Price Incl. Tax

19
VIS 4X12
VIS 4X12

9390344380  

Unit Price Incl. Tax

20
VIS 5X12
VIS 5X12

9390345280  

Unit Price Incl. Tax

21
VIS
VIS

93903HGC000  

Unit Price Incl. Tax

22
ECROU 5MM
ECROU 5MM

9405005080  

Unit Price Incl. Tax

23
ECROU A EMBASE H M10x1,25
ECROU A EMBASE H M10X1, 25

9405010080  

Unit Price Incl. Tax

24

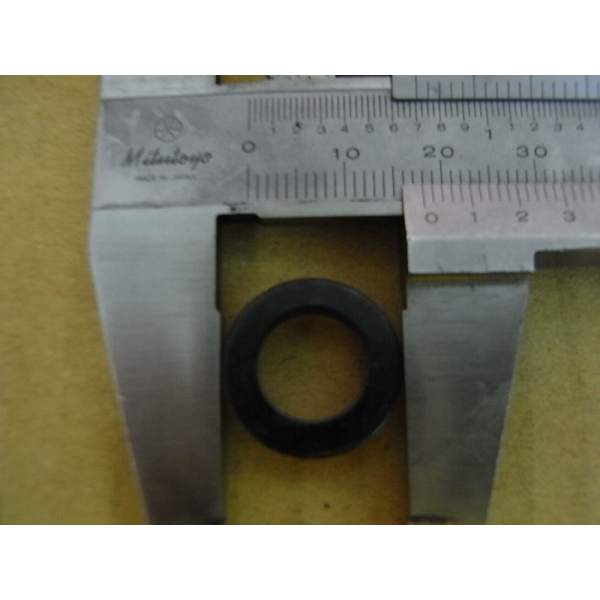

RONDELLE 10MM
RONDELLE 10MM

9410210700  

Unit Price Incl. Tax

25
CLIP 2X70
CLIP 2X70

9459127000  

Unit Price Incl. Tax

26
VIS 6X16
VIS 6X16

958010601607  

Unit Price Incl. Tax

27
VIS 8X12
VIS 8X12

958010801207  

Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
