CYLINDER HEAD ASSY

INLET PIPE FOR SYM MAXSYM TL 500 (TL47W1-EU) (L9) 2019

CYLINDER SET

INLET PIPE SYM scooter 500 2019 MAXSYM TL 500 (TL47W1-EU) (L9) MAXSYM TL 500 (TL47W1-EU) (L9)
1

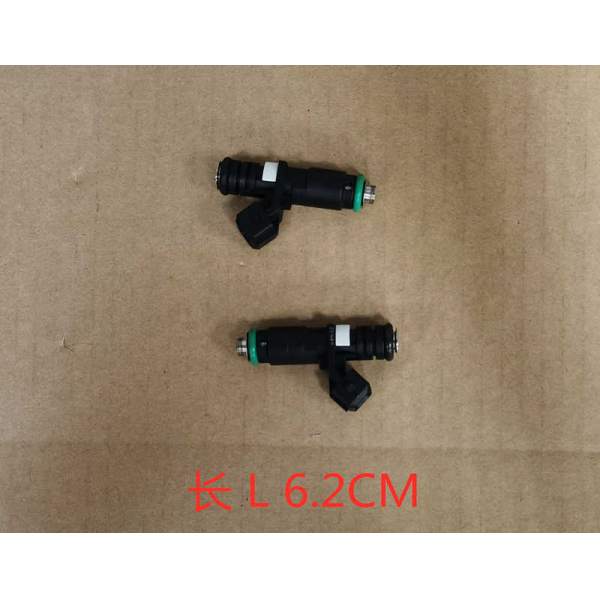

FUEL INJECTOR
FUEL INJECTOR

06414XTA000  

Unit Price Incl. Tax

1-1
O-RING(GREEN)

06415HKK000  

Unit Price Incl. Tax

1-2
SEAL-RING(BLACK)

06416HKK000  

Unit Price Incl. Tax

2
THROTTLE BODY ASSY

16400TL1000  

Unit Price Incl. Tax

3

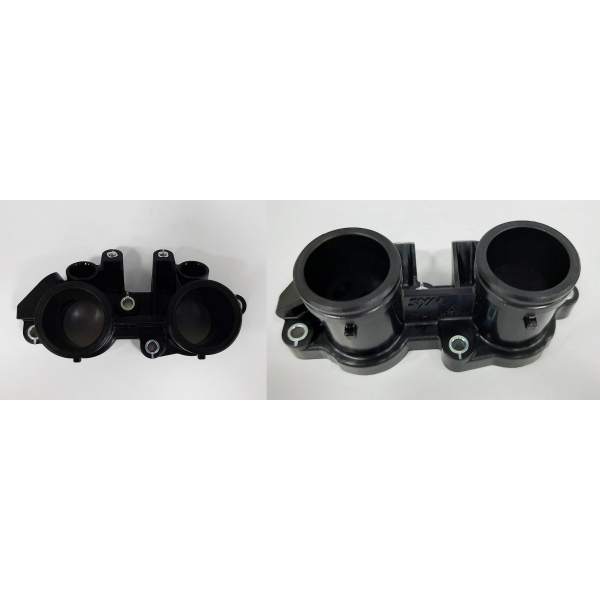

INLET PIPE COMP
INLET PIPE COMP

17110TL1000  

Unit Price Incl. Tax

4
INLET PIPE RUBBER

17111TL1000  

Unit Price Incl. Tax

5
FUEL CAP COMP.

17120TL1000  

Unit Price Incl. Tax

6
FUEL CAP PACKING 7*15*1

17123TL1000  

Unit Price Incl. Tax

7
T-MAP SENSOR
T-MAP SENSOR

37830MMA900  

Unit Price Incl. Tax

8

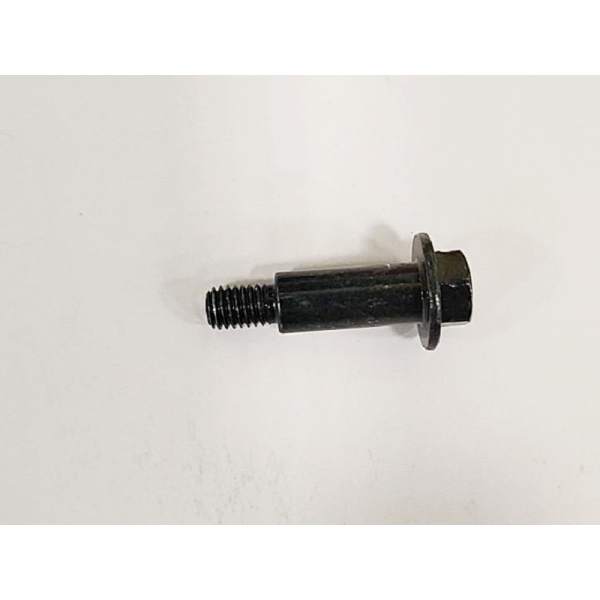

FUEL CAP BOLT 5*23
FUEL CAP BOLT 5*23

91006TL1000  

Unit Price Incl. Tax

9
AIR/C. CONN. TUBE BAND 52
AIR/C. CONN. TUBE BAND 52

91011TL1000  

Unit Price Incl. Tax

10
INSULATOR SEAL

91308L3A000  

Unit Price Incl. Tax

11

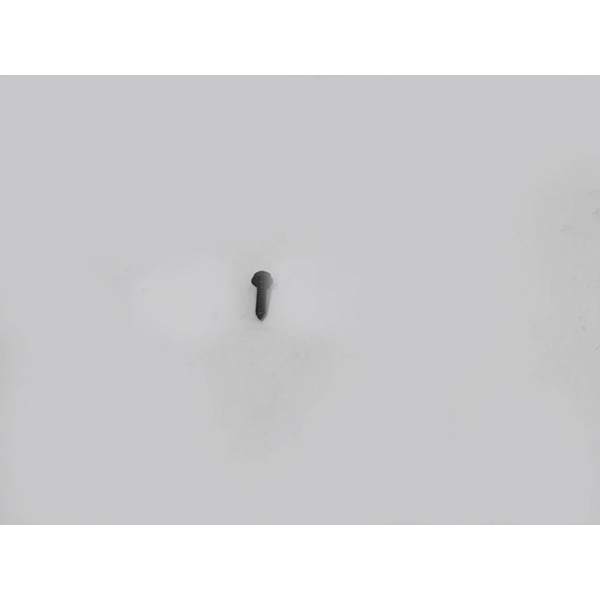

TAPPING SCREW 4*20
TAPPING SCREW 4*20

9390444580  

Unit Price Incl. Tax

12
VIS 6*30MM
VIS 6*30MM

960010603000  

Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
