RIGHT CRANKCASE COVER

RIGHT CRANKCASE FOR SYM MAXSYM TL 500 (TL47W1-EU) (L9) 2019

LEFT CRANKCASE

R CRANK CASE COMP GY-7520U

11100TL1010

474,28 €(417,84 £)

Unit Price Incl. Tax

CVT PLATE GASKET

11111TL1000

11,32 €(9,97 £)

Unit Price Incl. Tax

CVT PLATE

11112TL1000

14,26 €(12,56 £)

Unit Price Incl. Tax

BALANCE CYLINDER

12110TL1000

118,33 €(104,25 £)

Unit Price Incl. Tax

BALANCE CYLN. DOWEL PIN A

12111TL1000

4,92 €(4,33 £)

Unit Price Incl. Tax

BALANCE CYLN. DOWEL PIN B

12112TL1000

4,36 €(3,84 £)

Unit Price Incl. Tax

BALANCE CYLINDER BOLT

12113TL1000

3,44 €(3,03 £)

Unit Price Incl. Tax

BRG. SETTING PLATE

21202TL1000

2,70 €(2,38 £)

Unit Price Incl. Tax

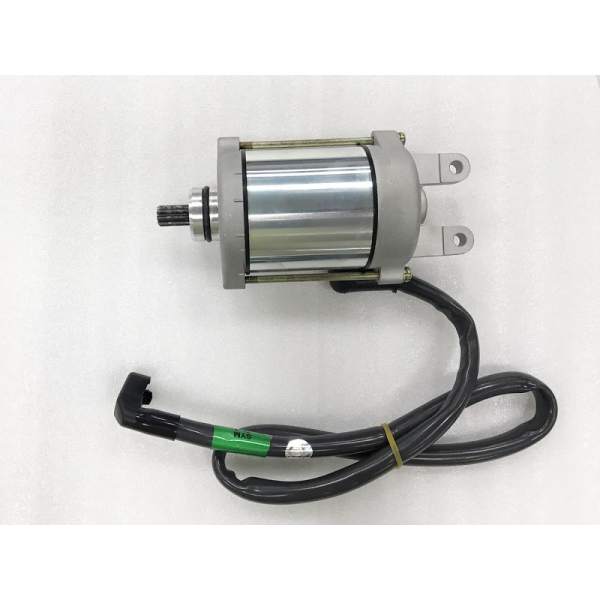

STARTER MOTOR ASSY.

31200TL1000

268,10 €(236,20 £)

Unit Price Incl. Tax

CLIP 2*70

50130X04000

1,30 €(1,15 £)

Unit Price Incl. Tax

SH FLANGE BOLT 5*12

90001AZA000

0,17 €(0,15 £)

Unit Price Incl. Tax

DOWEL PIN 12*16

91020TL1000

4,66 €(4,11 £)

Unit Price Incl. Tax

JOINT SPY24X40X7

91202RCA000

3,58 €(3,15 £)

Unit Price Incl. Tax

OIL SEAL HTCR 44*75.8

91204TL1000

29,39 €(25,89 £)

Unit Price Incl. Tax

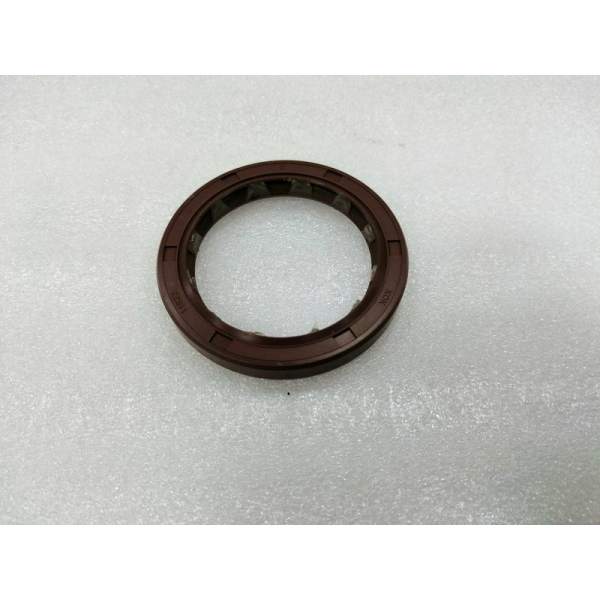

JOINT SPY 42*55*7

91205TL1010

23,36 €(20,58 £)

Unit Price Incl. Tax

ROULEMENT

91215RCA000

Not available

GUIDE 8X14

9430108140

1,14 €(1,00 £)

Unit Price Incl. Tax

KNOCK PIN 14*16

94301REA300

2,76 €(2,43 £)

Unit Price Incl. Tax

VIS SH 6ﾗ22

960010602200

0,47 €(0,41 £)

Unit Price Incl. Tax

ROULEMENT A BILLES 6205T

961006205000

24,18 €(21,30 £)

Unit Price Incl. Tax

RADIAL BALL BEARING 6206

961006206000

36,43 €(32,09 £)

Unit Price Incl. Tax

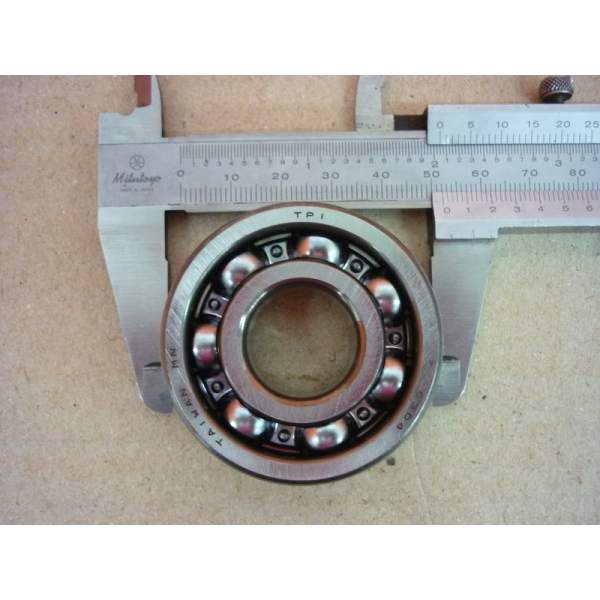

ROUELEMENT 6304

961006304000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
