Displacement

Year

Finish line

Parts catalogue

Parts diagram

RESERVE TANK

FRONT WHEEL FOR SYM MAXSYM TL 500 (TL47W1-EU) (L9) 2019

DRIVE CHAIN - FINAL DRIVEN

FRONT WHEEL SYM scooter 500 2019 MAXSYM TL 500 (TL47W1-EU) (L9) MAXSYM TL 500 (TL47W1-EU) (L9)
1
DAMPER DE ROUE ARRIERE
DAMPER DE ROUE ARRIERE

41241TL1000A  

Unit Price Incl. Tax

2
RR CASTING WHEEL COMP BK-7C
RR CASTING WHEEL COMP BK-7C

42601TL1000JD  

Unit Price Incl. Tax

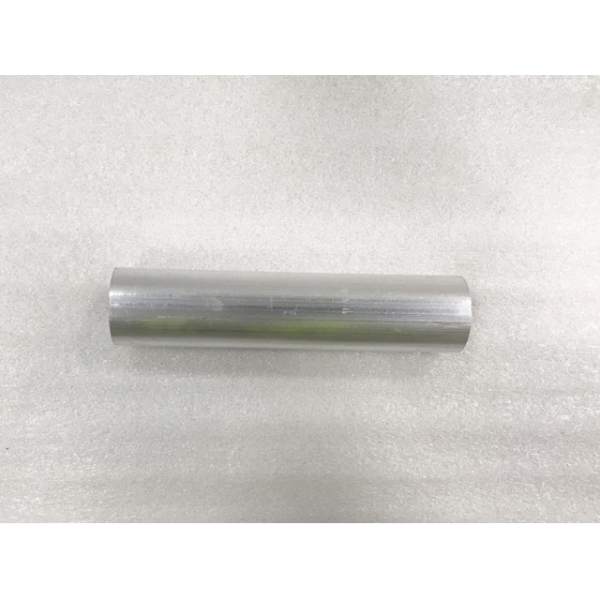

3
ENTRETOISE
ENTRETOISE

42620TL1000  

Unit Price Incl. Tax

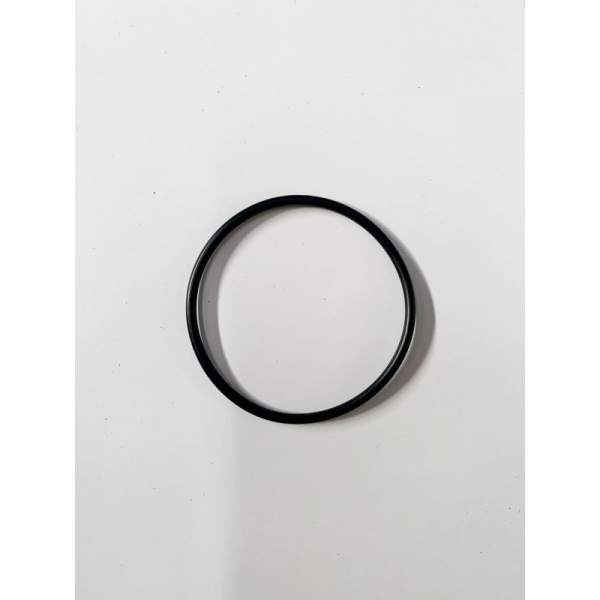

4
JOINT TORIQUE 52.07*2.62
JOINT TORIQUE 52.07*2.62

42653TL1000  

Unit Price Incl. Tax

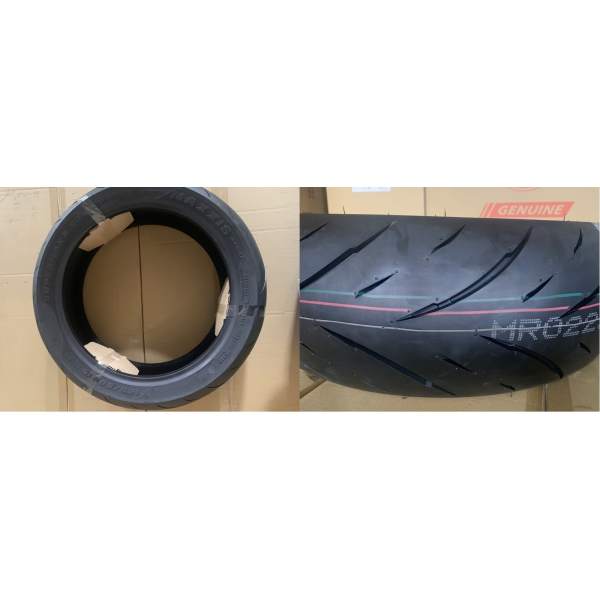

5
RR. TIRE ASSY.(160/60-15)
RR. TIRE ASSY.(160/60-15)

42710TL1001  

Unit Price Incl. Tax

6
VALVE
VALVE

42753KBN902  

42753-KJ9-000

Unit Price Incl. Tax

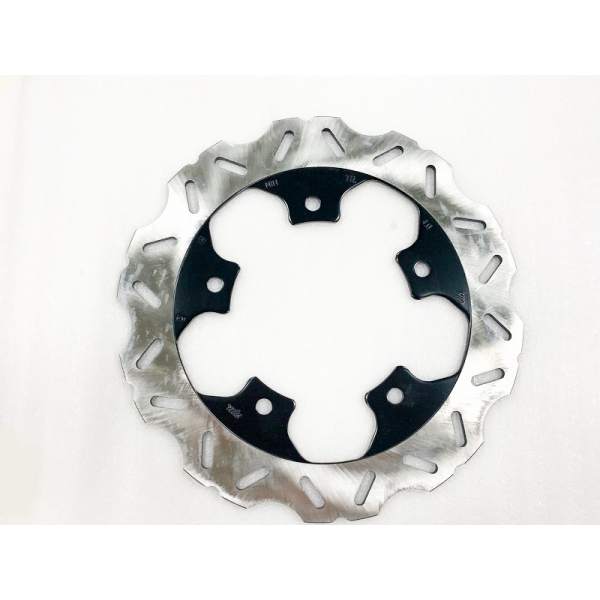

7
DISQUE DE FREIN ARRIERE BK-001C
DISQUE DE FREIN ARRIERE BK-001C

43121TL1000  

Unit Price Incl. Tax

8
POIDS
POIDS

44720H9A000  

Unit Price Incl. Tax

9
ROUE PHONIQUE ABS
ROUE PHONIQUE ABS

45120TL1000  

Unit Price Incl. Tax

10
VIS 8X24
VIS 8X24

90105KR3000  

90105-KR3-00A

Unit Price Incl. Tax

11
ROULEMENT 60/28 LUU
ROULEMENT 60/28 LUU

90913TL1000  

Unit Price Incl. Tax

12
ROULEMENT 62/28 LUU
ROULEMENT 62/28 LUU

90914TL1000  

Unit Price Incl. Tax

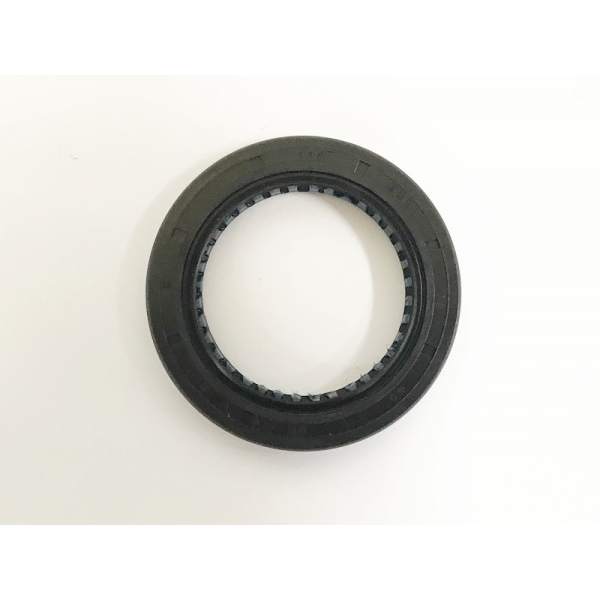

13
JOINT SPY 40*58*8
JOINT SPY 40*58*8

91206TL1000  

Unit Price Incl. Tax

14
VIS 5X12MM

93500L4C000  

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
