RIGHT CRANKCASE

LEFT CRANKCASE FOR SYM MAXSYM TL 500 (TL47W1-EU) (L9) 2019

LEFT CRANKCASE COVER

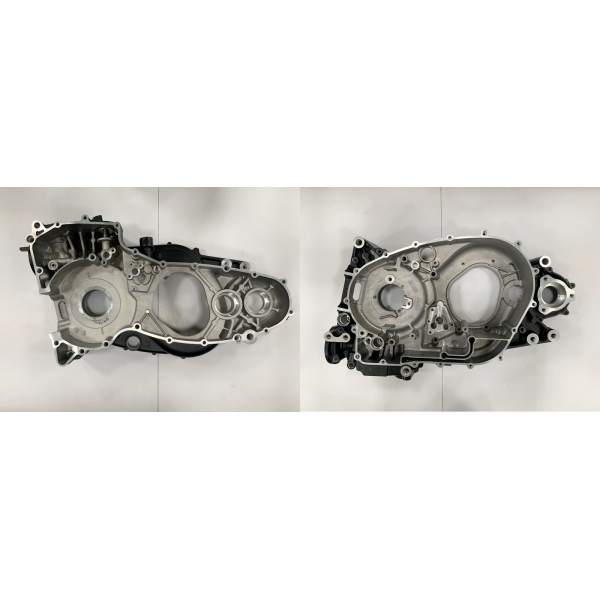

L. CRANK CASE COMP.

11200TL1000

488,54 €(430,40 £)

Unit Price Incl. Tax

OIL SEAL VCY 11*23*7

11201TL1000

7,76 €(6,84 £)

Unit Price Incl. Tax

CHECK BALL SPRING

11202TL1000

0,74 €(0,65 £)

Unit Price Incl. Tax

OIL COOLER ASSY.

11360TL1000

259,15 €(228,31 £)

Unit Price Incl. Tax

BOUCHON D ORIFICE

1236AB04000

12,91 €(11,37 £)

Unit Price Incl. Tax

PLAQUE

14151L4A000

2,10 €(1,85 £)

Unit Price Incl. Tax

OIL PIPE ASSY.

1522ATL1000

39,80 €(35,06 £)

Unit Price Incl. Tax

VIS SPECIALE HUILE

15230REA000

25,91 €(22,83 £)

Unit Price Incl. Tax

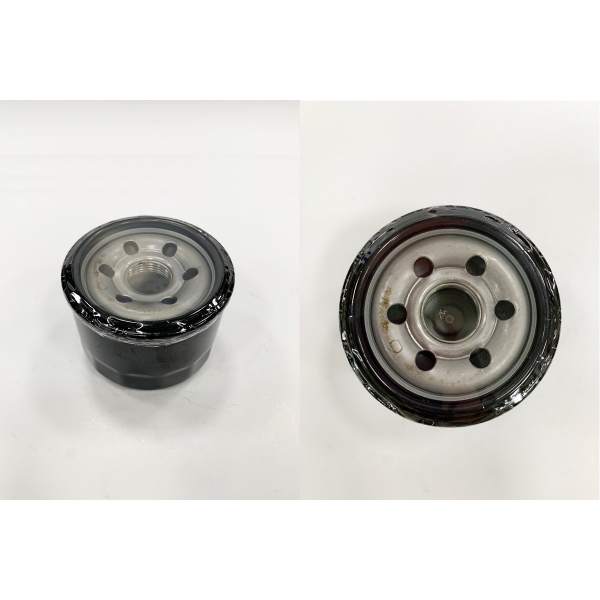

FILTRE A HUILE

15400TL1000

1540A-TL1-000

22,31 €(19,66 £)

Unit Price Incl. Tax

OIL FILTER BOLT

15402TL1000

41,81 €(36,83 £)

Unit Price Incl. Tax

CREPINE

15421REA000

9,62 €(8,48 £)

Unit Price Incl. Tax

RESSORT

15426REA000

1,25 €(1,10 £)

Unit Price Incl. Tax

FINAL SHAFT COVER

2343ATL1000

210,52 €(185,47 £)

Unit Price Incl. Tax

13,1

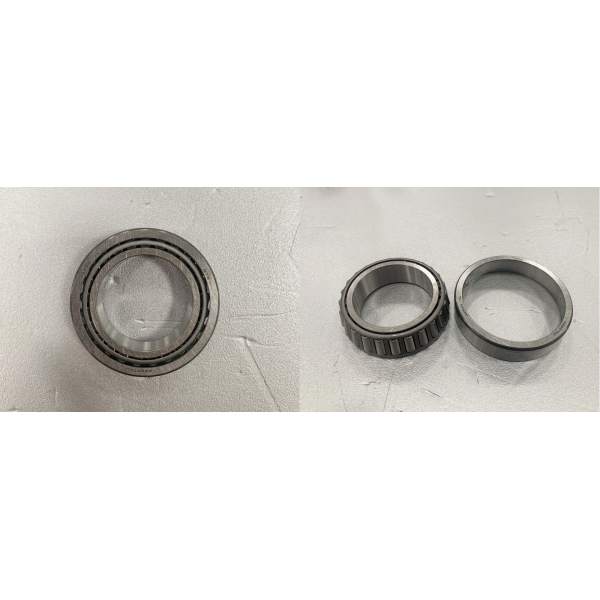

ROULEMENT 32907XU

90915TL1000A

217,09 €(191,26 £)

Unit Price Incl. Tax

O-RING 49.5*2.5

23438TL1000

1,93 €(1,70 £)

Unit Price Incl. Tax

SH FLANGE BOLT 5*12

90001AZA000

0,17 €(0,15 £)

Unit Price Incl. Tax

OIL HOLE CAP ASSY.

9010ATL1000

16,26 €(14,33 £)

Unit Price Incl. Tax

VIS M8X20

90157F3G000

1,80 €(1,59 £)

Unit Price Incl. Tax

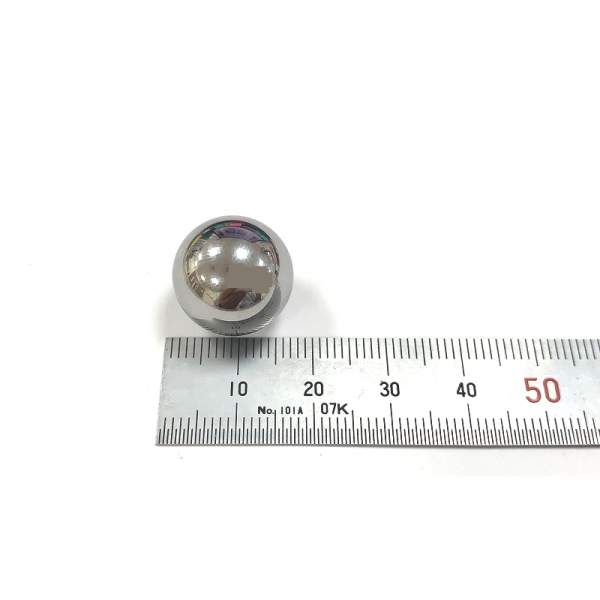

STEEL BALL 20

91016TL1000

5,62 €(4,95 £)

Unit Price Incl. Tax

JOINT SPY 25X40X7

91204HMA000

8,22 €(7,24 £)

Unit Price Incl. Tax

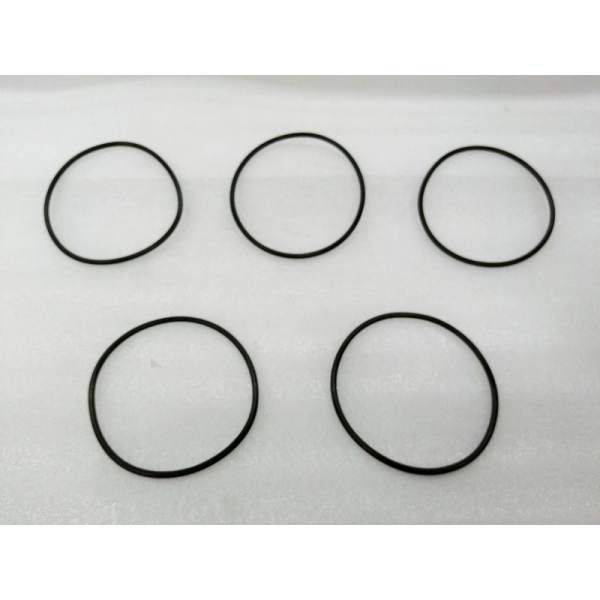

JOINT TORIQUE 74.4*3.1

91301TL1000

4,32 €(3,81 £)

Unit Price Incl. Tax

JOINT TORIQUE

91303B08000

0,74 €(0,65 £)

Unit Price Incl. Tax

JOINT TORIQUE 13.8X2.4

91303M2Q000

91303-377-000

0,38 €(0,33 £)

Unit Price Incl. Tax

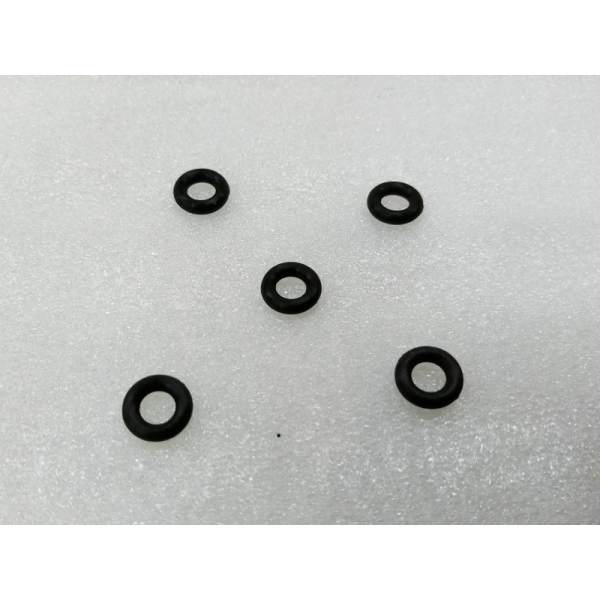

O-RING 4.8*2.4

91304TL1000

0,91 €(0,80 £)

Unit Price Incl. Tax

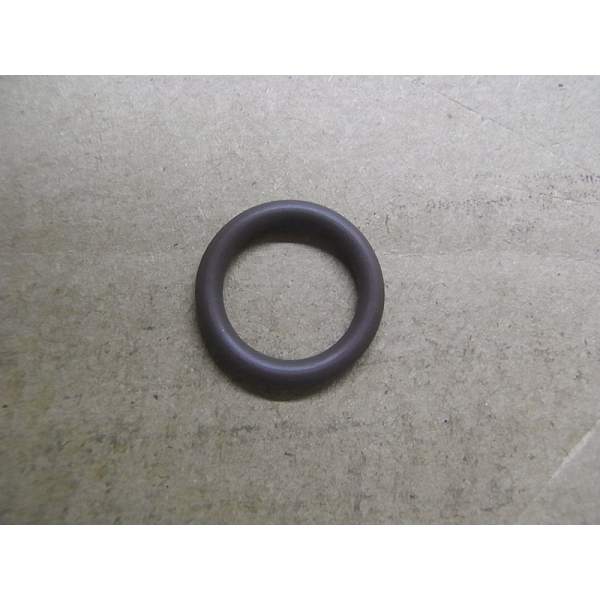

JOINT TORIQUE

91310REA000

3,53 €(3,11 £)

Unit Price Incl. Tax

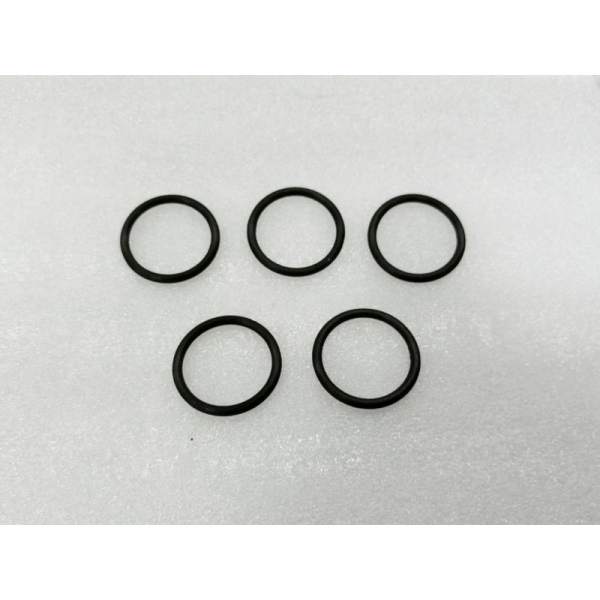

O-RING 21.7*2.5

91311TL1000

1,76 €(1,55 £)

Unit Price Incl. Tax

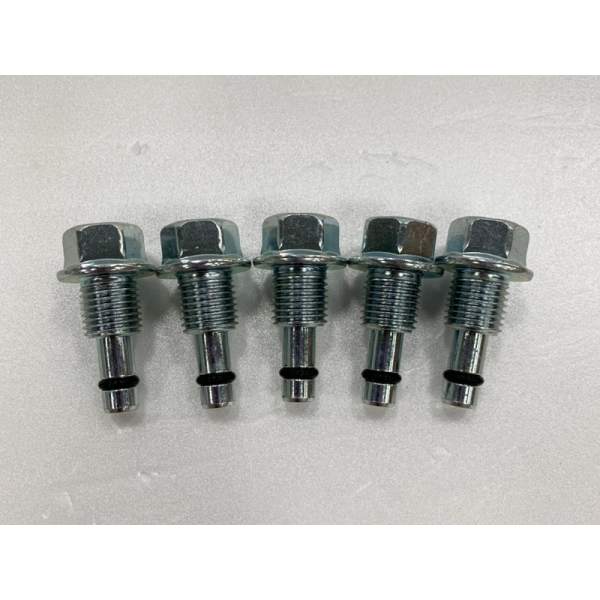

DRAIN PLUG BOLT ASSY

9280ATL1000

8,52 €(7,51 £)

Unit Price Incl. Tax

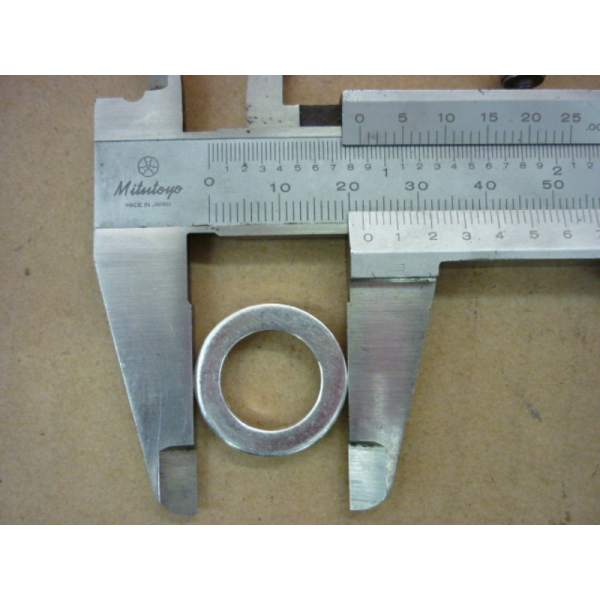

RONDELLE 14MM

9410914000

2,17 €(1,91 £)

Unit Price Incl. Tax

GUIDE 8X14

9430108140

1,14 €(1,00 £)

Unit Price Incl. Tax

VIS 8X55

957010805500

1,30 €(1,15 £)

Unit Price Incl. Tax

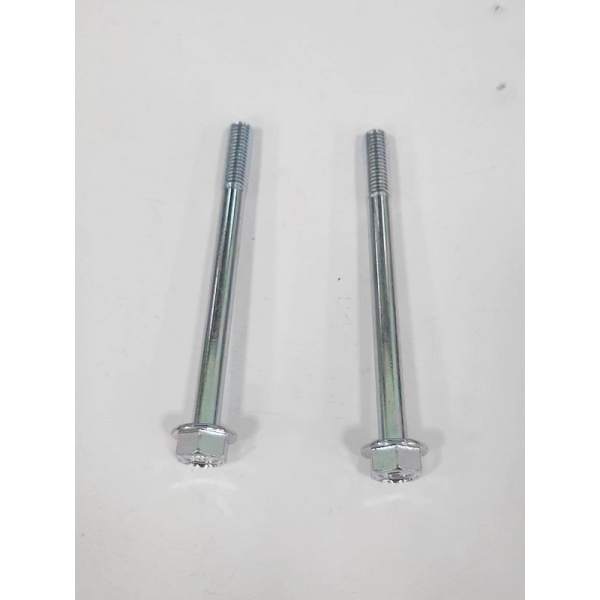

FLANGE BOLT 8*95

957010809500

2,84 €(2,50 £)

Unit Price Incl. Tax

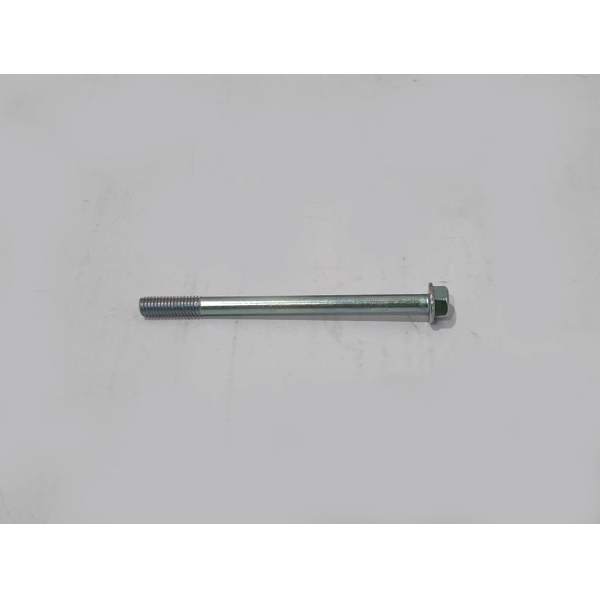

FLANGE BOLT 8*110

957010811000

3,01 €(2,65 £)

Unit Price Incl. Tax

VIS 6X35

960010603500

0,74 €(0,65 £)

Unit Price Incl. Tax

VIS SH 6X5

960010605000

2,05 €(1,81 £)

Unit Price Incl. Tax

ROULEMENT A BILLES 6205T

961006205000

24,18 €(21,30 £)

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from SYM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of SYM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Select your 2019 500 scooter in the list above and click on its Genuine Spare Parts Catalog
